Shaft and wheel SW-G182
SW-G182
New
In Stock
(6 Items)
€40.90
Tax included

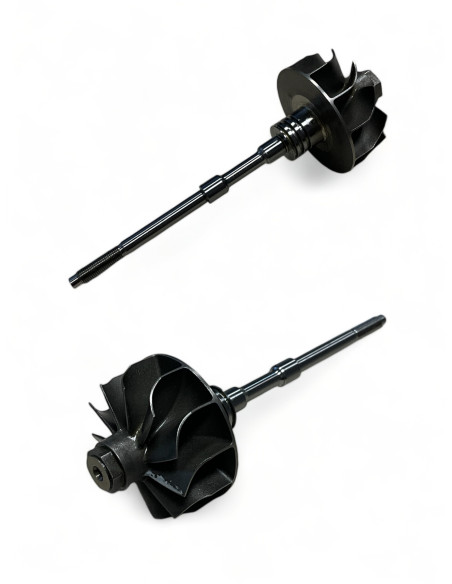

Shaft and wheel SW-G182 for turbos 830324-0002, 830324-0004, 855802-0006, 873732-0001.
SW-G182 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-G182
SW-G182 - Compatibility table
| Shaft and wheel SW-G182 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Garrett | GTD1244 | 830324-0002 | -- |
| Garrett | GTD1244 | 830324-0004 | -- |
| Garrett | DSGT-GTD1241VZ | 855802-0006 | -- |
| Garrett | GT14 | 873732-0001 | -- |

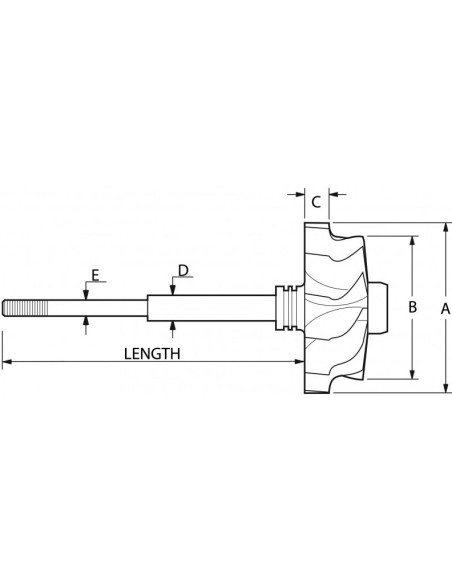

SW-G182 - Part Properties
Blades (Shaft blades count): 11
Type (Shaft & Wheel Type): Z Bearings
Inducer Diameter A (Inducer Diameter A): 35.6
Exducer Diameter B (Exducer Diameter B): 32.7
Tip Height C (Tip Height C): 7.5
Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.1
Shaft Length (mm) (Shaft Length (mm)): 81.0
Back (Back): Closed
Piston Ring Type (Piston Ring Type): Twin
Model (Model): GT12
830324-0002, 830324-0004, 855802-0006
Data updated: 2024-11-18 17:07:00
