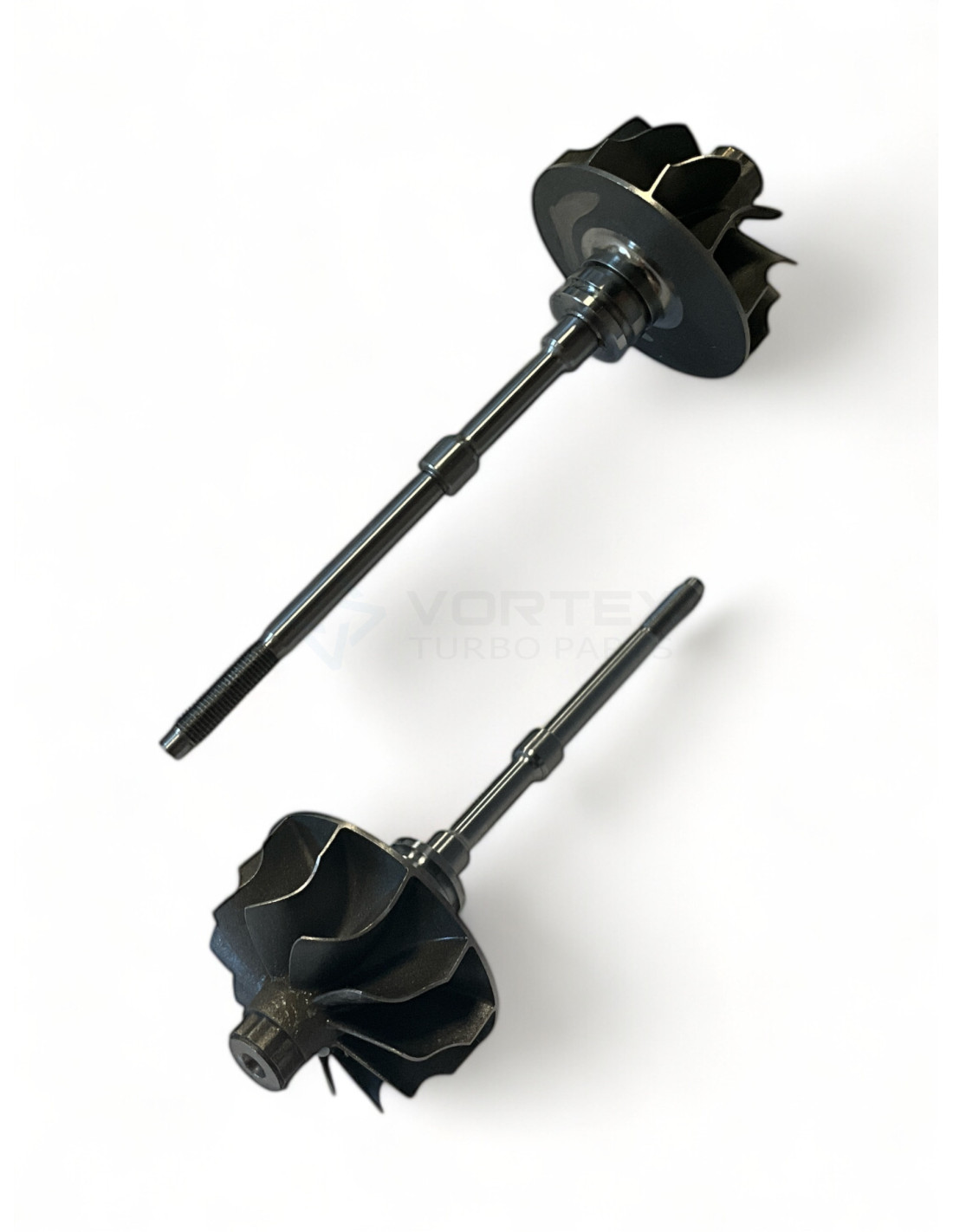

Shaft and wheel SW-G186R
SW-G186R
New
In Stock
(10 Items)
€45.62
Tax included
Shaft and wheel SW-G186R for turbos 831598-0001, 850282-0001, 850282-0002, 850282-0006, 850282-0012, 858082-0001, 858082-0002, 858082-0006, 858082-0012, 872795-0001.
SW-G186R - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-G186R
SW-G186R - Compatibility table
| Shaft and wheel SW-G186R - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Garrett | NGT1241KSZ | 831598-0001 | -- |
| Garrett | NGT1241LMKSZ | 850282-0001 | -- |
| Garrett | NGT1241LMKSZ | 850282-0002 | -- |
| Garrett | NGT1241MKSZ | 850282-0006 | 144106434R, A2820900280 |
| Garrett | NGT1241MKSZ | 850282-0012 | 144106434R, A2820900280 |
| Garrett | NGT1241MKSZ | 858082-0001 | -- |
| Garrett | NGT1241MKSZ | 858082-0002 | -- |
| Garrett | NGT1241MKSZ | 858082-0006 | -- |
| Garrett | NGT1241MKSZ | 858082-0012 | -- |
| Garrett | NGT1241LMK | 872795-0001 | -- |
| Garrett | MGT1241MOSZ | 883960-0002 | -- |
| Garrett | MGT1241MOSZ | 883960-0005 | -- |
| Garrett | MGT1241MOSZ | 883960-0007 | -- |
| Garrett | MGT1241MOSZ | 883960-0008 | -- |

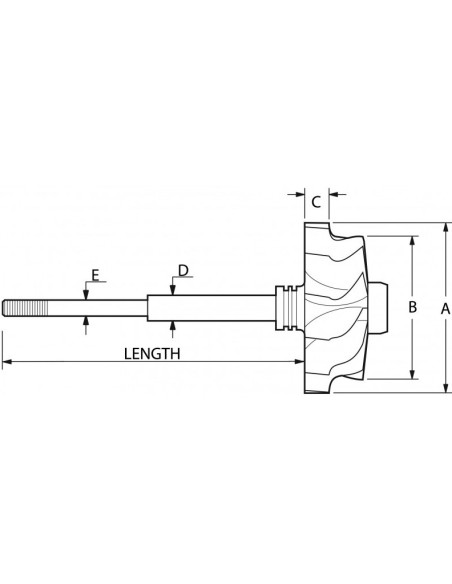

SW-G186R - Part Properties
Blades (Shaft blades count): 11
Type (Shaft & Wheel Type): Z Bearings
Inducer Diameter A (Inducer Diameter A): 35.6
Exducer Diameter B (Exducer Diameter B): 30.9
Tip Height C (Tip Height C): 5.8
Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.0
Shaft Length (mm) (Shaft Length (mm)): 78.6
Back (Back): Closed
Piston Ring Type (Piston Ring Type): Single
Rotation (Rotation): Reverse
Model (Model): GT12
831598-0001, 850282-0001, 850282-0002, 144106434R, 850282-0006, A2820900280, 144106434R, 850282-0012, A2820900280, 858082-0001, 858082-0002, 858082-0006, 858082-0012, 872795-0001, AL0027, 883960-0002, 883960-0005, 883960-0007, 883960-0008
Data updated: 2024-11-18 17:09:58
