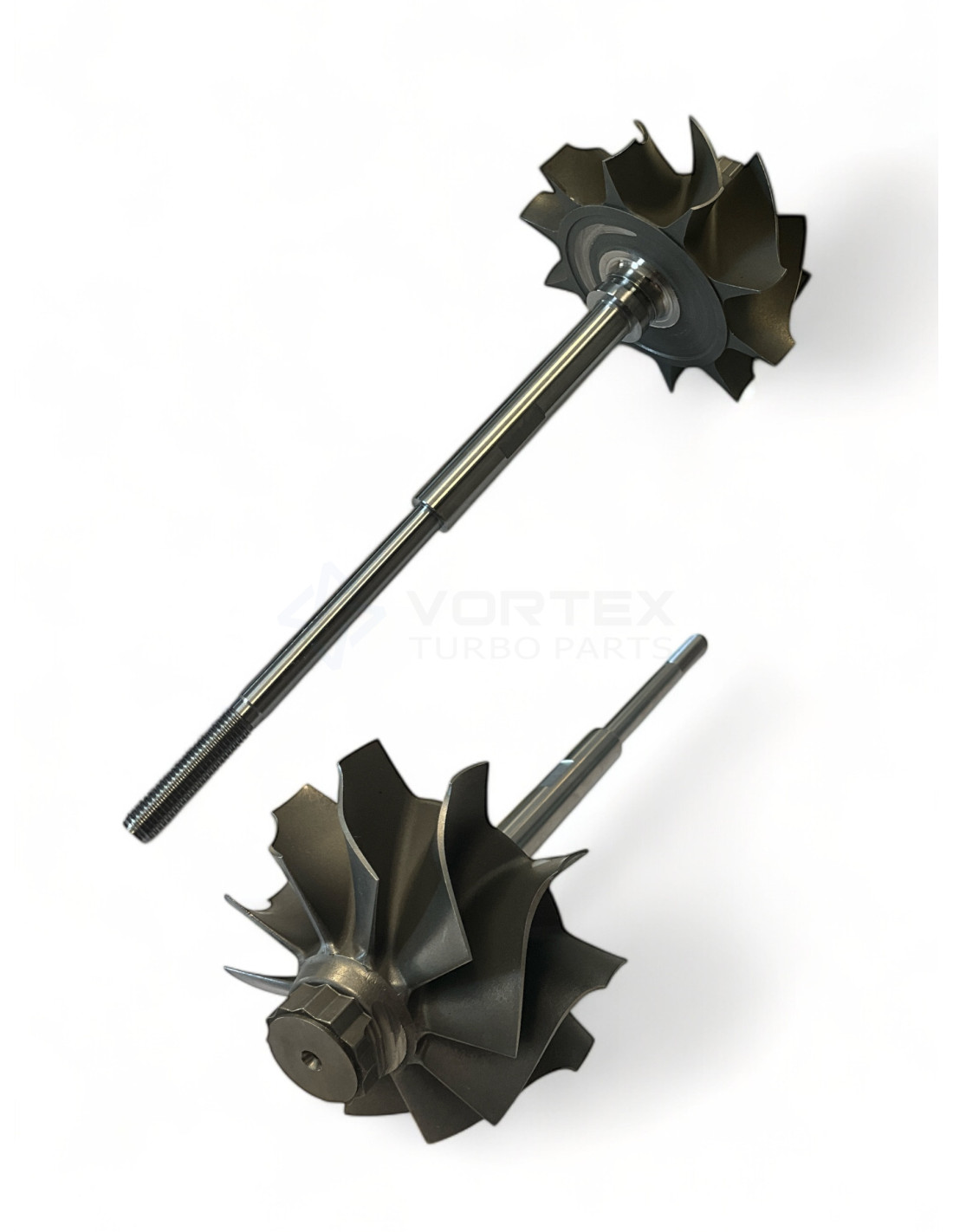

Shaft and wheel SW-B012
Shaft and wheel SW-B012

Shaft and wheel SW-B012

SW-B012
New
Last items in stock (3 Items)
€132.13
Tax included

Shaft and wheel SW-B012 for turbos 13839700003, 13839700027, 13839700029, 13839700040, 13879700028, 13879700050, 13879700087, 13879700108.

See below for more info.



SW-B012 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-B012

SW-B012 - Compatibility table

Shaft and wheel SW-B012 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
BorgWarnerB3-3767NYAKB/0.97/33%PJ6138397000034700960899
BorgWarnerB3-3767NYAKB/0.97/33%PJ6138397000274700960899
BorgWarnerB3-3767NYAKB/0.97/33%PJ6138397000294700960899
BorgWarnerB3-3767NYAKB/0.97/33%PJ6138397000404700960899
BorgWarnerB3-3767NYAKB/0.97/33%PJ6138797000284700960899
BorgWarnerB3-3767NYAKB/0.97/33%PJ6138797000504700960899
BorgWarnerB3138797000874700960899
BorgWarnerB3-3767NYAKB/0.97/33%PJ6138797001084700960899

SW-B012 - Part Properties

Blades (Shaft blades count): 10

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 87.4

Exducer Diameter B (Exducer Diameter B): 70.8

Tip Height C (Tip Height C): 11.5

Journal Bearing Diameter D (Journal Bearing Diameter D): 12.0

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 8.0

Shaft Length (mm) (Shaft Length (mm)): 174.0

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): B3

Data updated: 2022-12-19 19:22:27
