Shaft and wheel SW-B013
SW-B013
New
Please login to see prices and stock

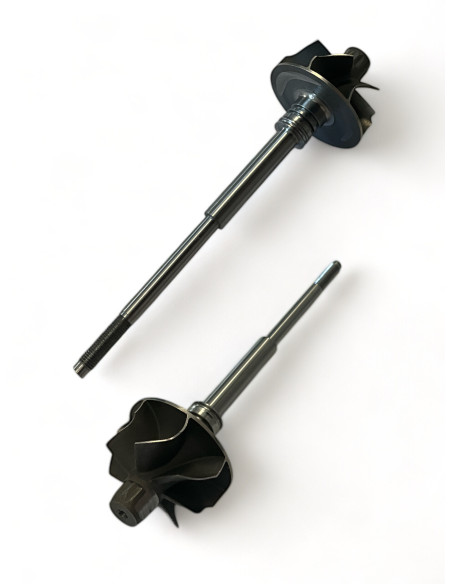

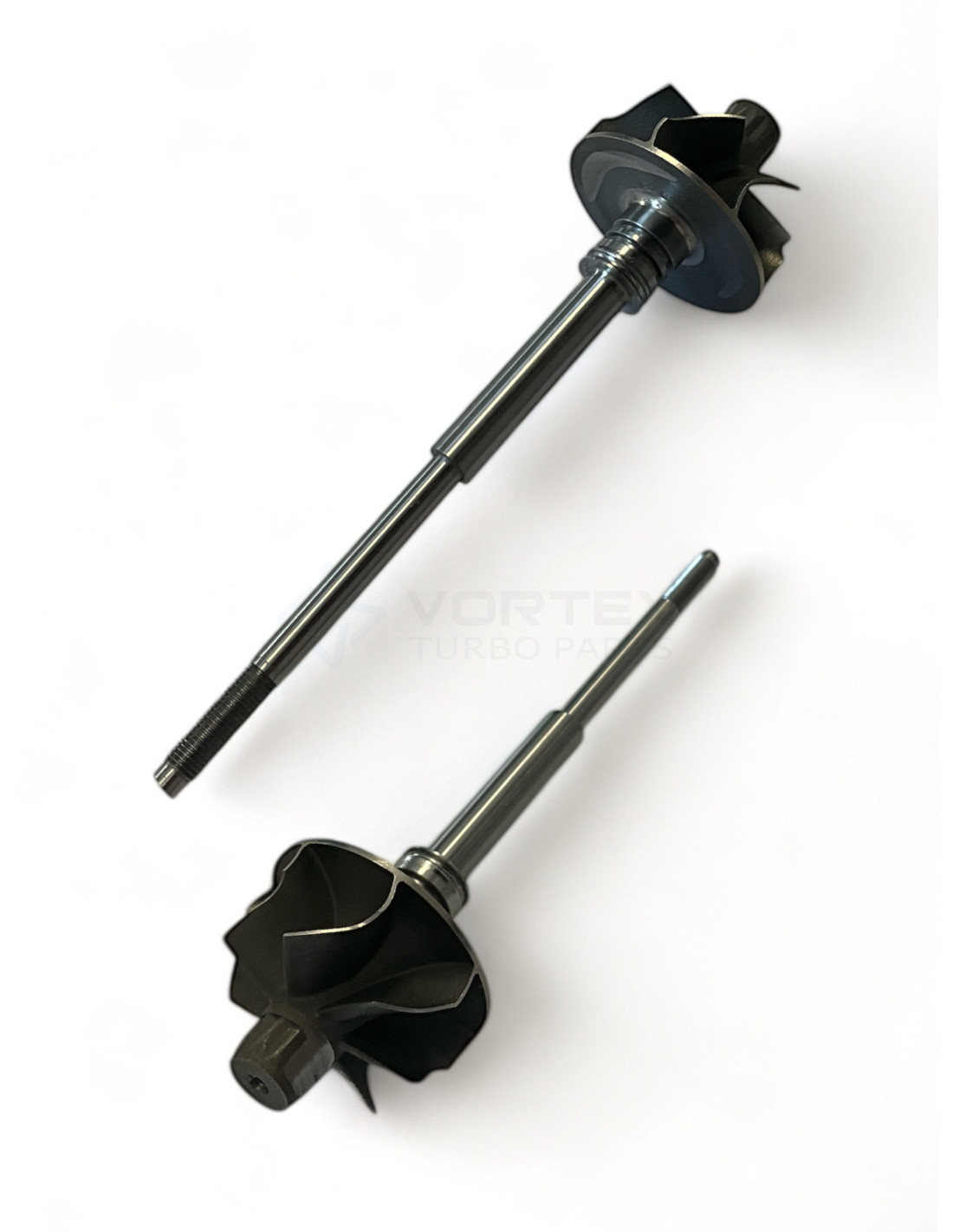

Shaft and wheel SW-B013 for turbos 16309700000, 16309700001, 16309700002, 16309700003, 16309700005.
SW-B013 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-B013
SW-B013 - Compatibility table
| Shaft and wheel SW-B013 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| BorgWarner | B01V | 16309700000 | 04B253019A |
| BorgWarner | B01V | 16309700001 | 04B253019F |
| BorgWarner | B01V | 16309700002 | V03846515C |
| BorgWarner | B01V | 16309700003 | 04B253019G |
| BorgWarner | B01V | 16309700005 | V03846515C |
SW-B013 - Part Properties
Blades (Shaft blades count): 7
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 30.0
Exducer Diameter B (Exducer Diameter B): 26.4
Tip Height C (Tip Height C): 5.3
Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.1
Shaft Length (mm) (Shaft Length (mm)): 83.5
Back (Back): Closed
Piston Ring Type (Piston Ring Type): Twin
Rotation (Rotation): Reverse
Model (Model): BV30
16309700005, 16309700003, 16309700002, 16309700001, 16309700000, 04B253019A, 1630 970 0000, 04B253019F, 1630 970 0001, 1630 970 0002, V03846515C, 04B253019G, 1630 970 0003, 1630 970 0005, V03846515C
Data updated: 2025-11-25 13:58:27
