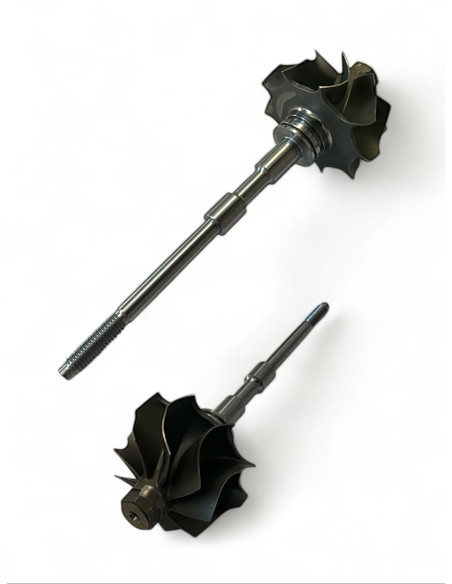

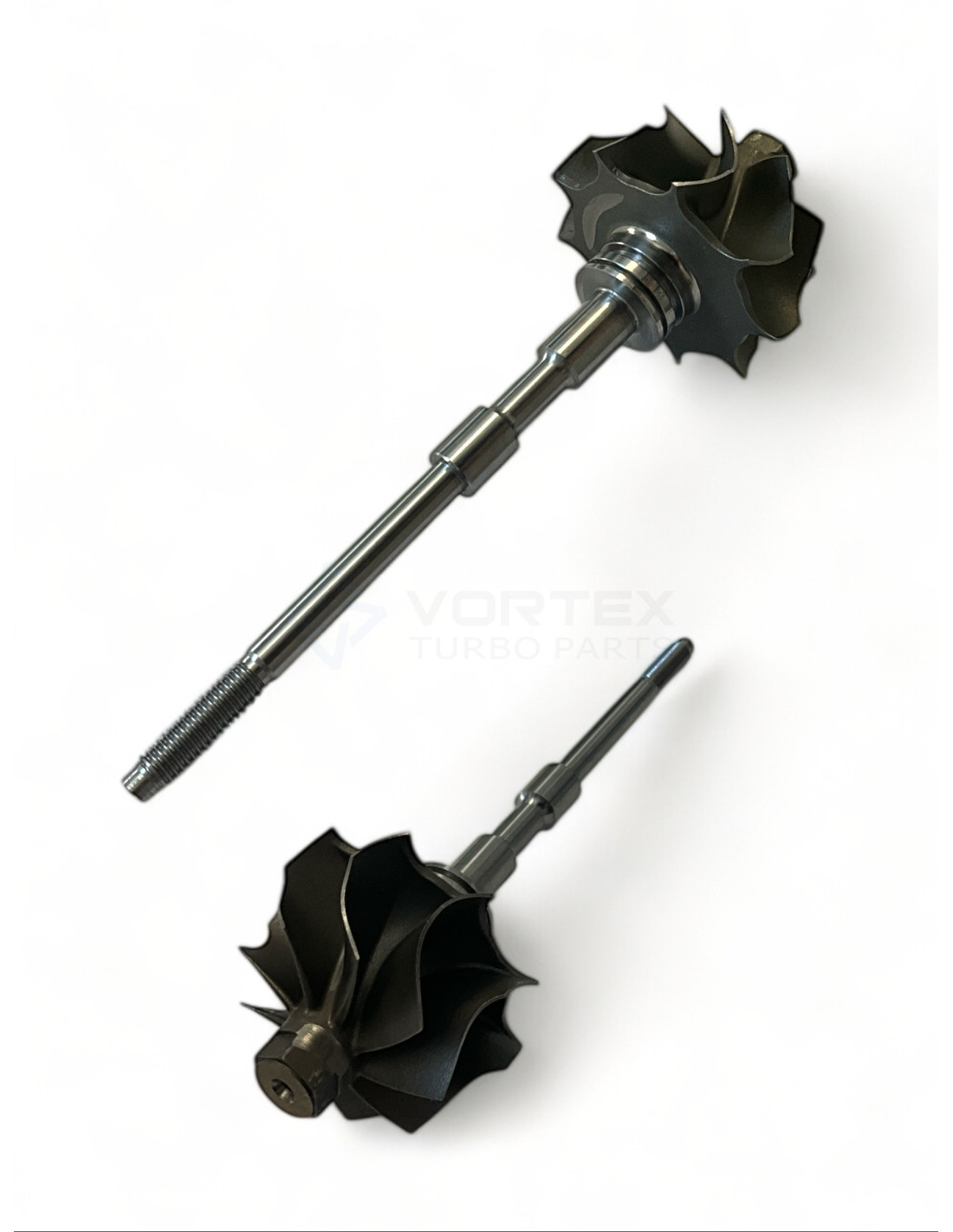

Shaft and wheel SW-G040
Shaft and wheel SW-G040

Shaft and wheel SW-G040

SW-G040
New
Out-of-Stock
€28.31
Tax included

433165-0004, 433298-0004, 433298-0032, 434713-0007

Shaft and wheel SW-G040 for turbos 452098-0001, 452098-0002, 452202-0003, 452202-0004, 452283-0003, 702404-0002, 720244-0001.




SW-G040 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G040

SW-G040 - Alternative numbers

GHO (Garrett original part number): 433165-0004

GHO (Garrett original part number): 433298-0004

GHO (Garrett original part number): 433298-0032

GHO (Garrett original part number): 434713-0007

SW-G040 - Compatibility table

Shaft and wheel SW-G040 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT1549452098-0001--
GarrettGT1549452098-0002--
GarrettGT1549S452202-0003PMF100400, PMF100490
GarrettGT1549S452202-0004PMF100400, PMF100490
GarrettGT1549S452283-0003--
GarrettGT1549702404-0002--
GarrettGT1549S720244-0001--

SW-G040 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Slender

Inducer Diameter A (Inducer Diameter A): 41.5

Exducer Diameter B (Exducer Diameter B): 33.8

Tip Height C (Tip Height C): 7.3

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 92.5

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): GT15-25

452098-0001, 452098-0002, 452202-0003, PMF100400, PMF100490, 452202-0004, PMF100400, PMF100490, 452283-0003, 702404-0002, 720244-0001

Data updated: 2023-11-09 14:03:46
