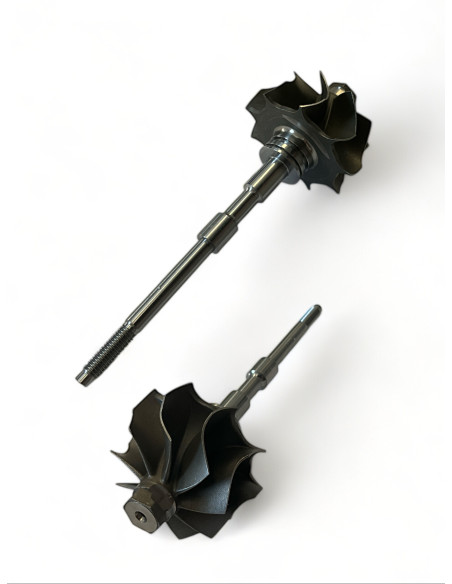

Shaft and wheel SW-G039
Shaft and wheel SW-G039

Shaft and wheel SW-G039

SW-G039
New
In Stock (14 Items)
€23.60
Tax included

433165-0001, 433165-0007, 433298-0001, 433298-0030

Shaft and wheel SW-G039 for turbos 452213-0001, 452213-0002, 452213-0003, 452274-0004, 452274-0005, 452274-0006, 454006-0002, 454064-0001, 454064-0002, 454080-0001.



SW-G039 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G039

SW-G039 - Alternative numbers

GHO (Garrett original part number): 433165-0001

GHO (Garrett original part number): 433165-0007

GHO (Garrett original part number): 433298-0001

GHO (Garrett original part number): 433298-0030

GHO (Garrett original part number): 434713-0001

GHO (Garrett original part number): 434713-0005

SW-G039 - Compatibility table

Shaft and wheel SW-G039 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT1549S452213-0001954T6K682AA
GarrettGT1549S452213-0002X4T6K682AA
GarrettGT1549S452213-0003Y4T6K682AA
GarrettGT1549S452274-0004--
GarrettGT1549S452274-0005--
GarrettGT1549S452274-0006--
GarrettGT1544S454006-0002--
GarrettGT1544S454064-0001028145701L
GarrettGT1544S454064-0002028145701L
GarrettGT1544S454080-0001--
GarrettGT1544S454080-0003--
GarrettGT1544S454080-0005--
GarrettGT2049454134-0002--
GarrettGT1549S454155-0002--
GarrettGT1549S454164-0002--
GarrettGT1549S454164-0004--
GarrettGT1544S454165-0001--
GarrettGT1549S454171-0004037572, 9633647180
GarrettGT1549S454171-0005037572, 9633785480
GarrettGT1549S454176-0005--
GarrettGT1549S454216-000124442214, 860027, 860046, 90570506
GarrettGT1549S454216-000224442214, 860027, 860046, 90570506
GarrettGT1549S454216-000324442214, 860027, 860046, 90570506
GarrettGT1549S454219-0001--
GarrettGT1549S454219-0002--
GarrettGT1549S454219-0003--
GarrettGT1549S454219-0004--
GarrettGT1549S454229-0001--
GarrettGT1549S454229-0002--
GarrettGT1749S471037-0002--
GarrettGT1544S700830-00017700107795
GarrettGT1544S700999-0001--
GarrettGT1544S701000-0001--
GarrettGT1549S701072-0001--
GarrettGT1544H701370-0001--
GarrettGT1544H701370-0004--
GarrettGT1544H701796-0001--
GarrettGT1544702339-0001--
GarrettGT1549S703245-00017700108052, 7701472228, 7701474358, 7701478022, 7711134299, 7711497142, 7711497500, 8802583339
GarrettGT1549S703245-00027700105102, 7701472228, 7701474358, 7701478022, 7711134299, 7711497142, 7711497500, 8802583339
GarrettGT1544S703753-0001--
GarrettGT1549S705306-000114411-5M300, 144115M300
GarrettGT1549S705306-000214411-4U100, 144114U100
GarrettGT1549S705306-000614411-5M310, 144115M310
GarrettGT1549S705306-000714411-4U110, 144114U110
GarrettGT1549S717345-00027711134299, 7711497142, 7711497500, 8200091350A
GarrettGT1549S717348-00017701473283, 7701473526, 7701474960, 7701476298, 7701477263, 7701478024, 7701478026, 7711134774, 7711135336, 7711135749, 7711368748, 7711497146, 8200046681, 8200046681A
GarrettGT1549S717348-00027701352852, 7701470381, 7701471097, 7701471634, 7701473283, 7701473551, 7701476298, 7701478026, 7711134065, 7711134774, 8200046681B
GarrettGT1549S738123-00017701472228, 7701474358, 7701478022, 7711134299, 7711497142, 7711497500, 8200544907, 8802583339
GarrettGT1549S738123-00027701472228, 7701474358, 7701478022, 7711134299, 7711497142, 7711497500, 8200544907, 8802583339
GarrettGT1549S738123-00037701472228, 7701474358, 7701478022, 7711134299, 7711497142, 7711497500, 8200458160, 8802583339
GarrettGT1549S738123-00047701472228, 7701474358, 7701478022, 7711134299, 7711497142, 7711497500, 8200683853, 8802583339
GarrettGT1549S751768-00017701472228, 7701474358, 7701478022, 7711134299, 7711497142, 7711497500, 8200348244, 8802583339
GarrettGT1549S751768-00027701472228, 7701474358, 7701478022, 7711134299, 7711497142, 7711497500, 8200544911, 8802583339
GarrettGT1549S751768-00037701472228, 7701474358, 7701478022, 7711134299, 7711497142, 7711497500, 8200458162, 8802583339
GarrettGT1549S751768-00044409975, 4433764, 5860004, 7701472228, 7701474358, 7701478022, 7711134299, 7711497142, 7711497500, 8200683854, 8802583339, 93160135, 93184486, 93198157, R1630019
GarrettGT1549S751768-00054409975, 4433764, 5860004, 7701472228, 7701474358, 7701478022, 7711134299, 7711497142, 7711497500, 8200683854, 8802583339, 93160135, 93184486, 93198157, R1630019

SW-G039 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Slender

Inducer Diameter A (Inducer Diameter A): 41.5

Exducer Diameter B (Exducer Diameter B): 35.2

Tip Height C (Tip Height C): 7.1

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 92.5

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): GT15-25

452213-0001, 954T6K682AA, 452213-0002, X4T6K682AA, 452213-0003, Y4T6K682AA, 452274-0004, 452274-0005, 452274-0006, 454006-0002, 028145701L, 454064-0001, 028145701L, 454064-0002, 454080-0001, 454080-0003, 454080-0005, 454134-0002, 454155-0002, 454164-0002, 454164-0004, 454165-0001, 037572, 454171-0004, 9633647180, 037572, 454171-0005, 9633785480, 454176-0005, 24442214, 454216-0001, 860027, 860046, 90570506, 24442214, 454216-0002, 860027, 860046, 90570506, 24442214, 454216-0003, 860027, 860046, 90570506, 454219-0001, 454219-0002, 454219-0003, 454219-0004, 454229-0001, 454229-0002, 471037-0002, 700830-0001, 7700107795, 700999-0001, 701000-0001, 701072-0001, 701370-0001, 701370-0004, 701796-0001, 702339-0001, 703245-0001, 7700108052, 7701472228, 7701474358, 7701478022, 7711134299, 7711497142, 7711497500, 8802583339, 703245-0002, 7700105102, 7701472228, 7701474358, 7701478022, 7711134299, 7711497142, 7711497500, 8802583339, 703753-0001, 14411-5M300, 144115M300, 705306-0001, 14411-4U100, 144114U100, 705306-0002, 14411-5M310, 144115M310, 705306-0006, 14411-4U110, 144114U110, 705306-0007, 717345-0002, 7711134299, 7711497142, 7711497500, 8200091350A, 717348-0001, 7701473283, 7701473526, 7701474960, 7701476298, 7701477263, 7701478024, 7701478026, 7711134774, 7711135336, 7711135749, 7711368748, 7711497146, 8200046681, 8200046681A, 717348-0002, 7701352852, 7701470381, 7701471097, 7701471634, 7701473283, 7701473551, 7701476298, 7701478026, 7711134065, 7711134774, 8200046681B, 738123-0001, 7701472228, 7701474358, 7701478022, 7711134299, 7711497142, 7711497500, 8200544907, 8802583339, 738123-0002, 7701472228, 7701474358, 7701478022, 7711134299, 7711497142, 7711497500, 8200544907, 8802583339, 738123-0003, 7701472228, 7701474358, 7701478022, 7711134299, 7711497142, 7711497500, 8200458160, 8802583339, 738123-0004, 7701472228, 7701474358, 7701478022, 7711134299, 7711497142, 7711497500, 8200683853, 8802583339, 751768-0001, 7701472228, 7701474358, 7701478022, 7711134299, 7711497142, 7711497500, 8200348244, 8802583339, 751768-0002, 7701472228, 7701474358, 7701478022, 7711134299, 7711497142, 7711497500, 8200544911, 8802583339, 751768-0003, 7701472228, 7701474358, 7701478022, 7711134299, 7711497142, 7711497500, 8200458162, 8802583339, 4409975, 4433764, 5860004, 751768-0004, 7701472228, 7701474358, 7701478022, 7711134299, 7711497142, 7711497500, 8200683854, 8802583339, 93160135, 93184486, 93198157, R1630019, 4409975, 4433764, 5860004, 751768-0005, 7701472228, 7701474358, 7701478022, 7711134299, 7711497142, 7711497500, 8200683854, 8802583339, 93160135, 93184486, 93198157, R1630019
