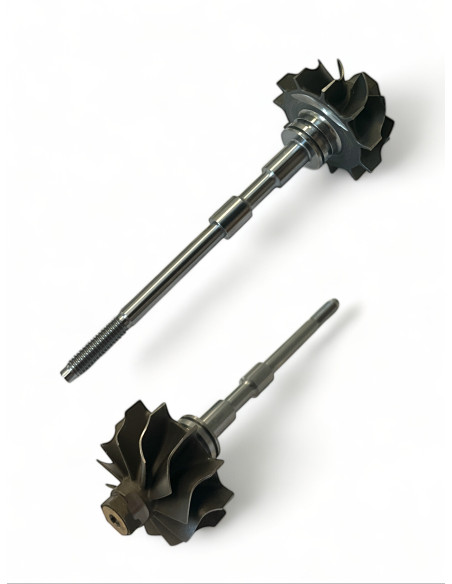

Shaft and wheel SW-G045
Shaft and wheel SW-G045

Shaft and wheel SW-G045

SW-G045
New
In Stock (26 Items)
€26.74
Tax included

Shaft and wheel SW-G045 for turbos 740611-0001, 740611-0002, 740611-0003, 740611-0005, 766111-0001, 782403-0001, 782404-0001.



SW-G045 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G045

SW-G045 - Compatibility table

Shaft and wheel SW-G045 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT1544V740611-000128201-2A100, 282012A100
GarrettGT1544V740611-000228201-2A400, 282012A400
GarrettGT1544V740611-0003--
GarrettGT1544V740611-0005--
GarrettGT1544V766111-0001--
GarrettGT1544V782403-0001--
GarrettGT1544V782404-0001--

SW-G045 - Part Properties

Blades (Shaft blades count): 11

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 39.0

Exducer Diameter B (Exducer Diameter B): 33.2

Tip Height C (Tip Height C): 5.5

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 92.5

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): GT15-25

28201-2A100, 282012A100, 740611-0001, 28201-2A400, 282012A400, 740611-0002, 740611-0003, 740611-0005, 766111-0001, 782403-0001, 782404-0001

Data updated: 2024-09-16 18:55:34
