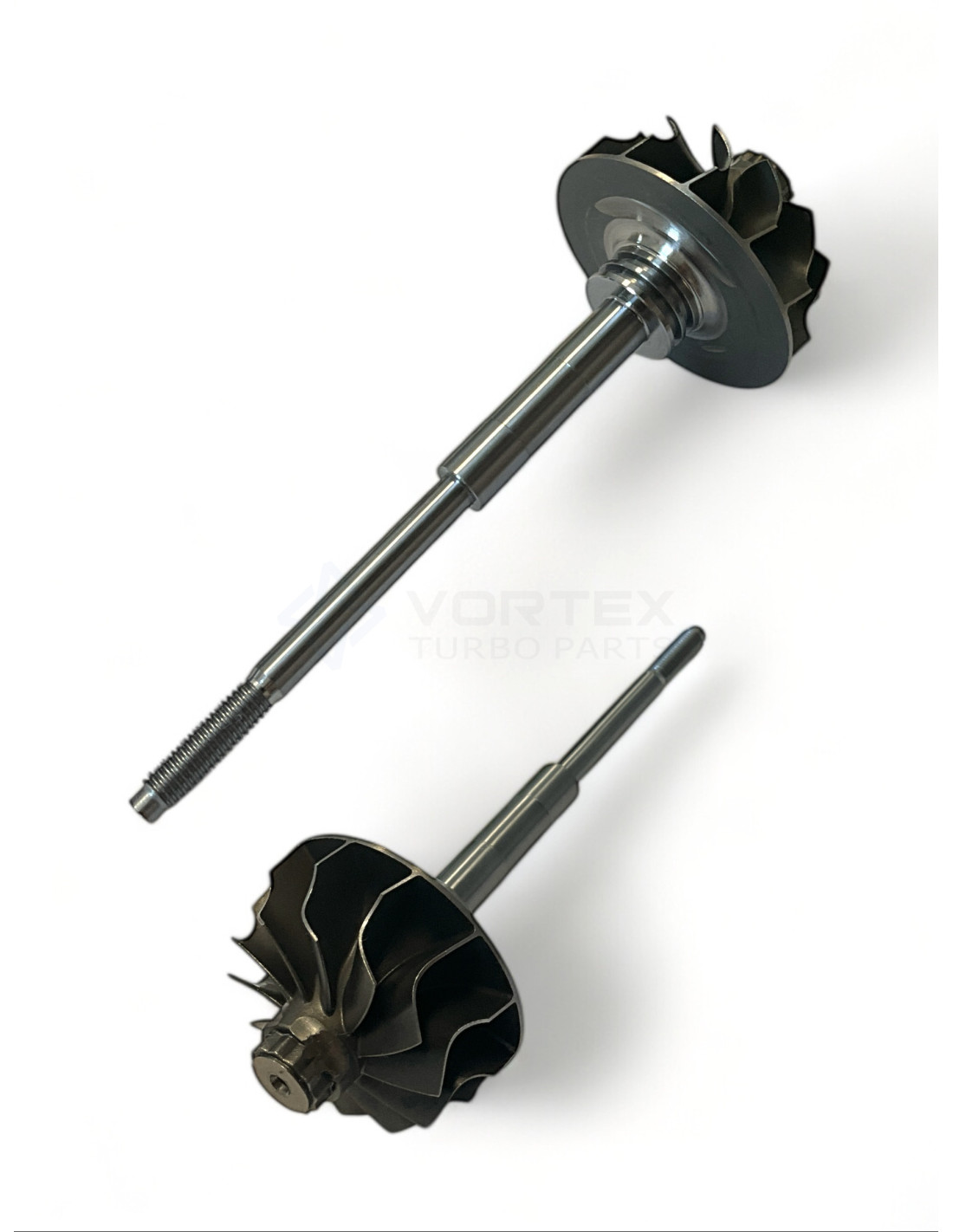

Shaft and wheel SW-G050
SW-G050
New
Out-of-Stock
€31.46
Tax included
Shaft and wheel SW-G050 for turbos 786997-0001, 793829-0001, 793829-0002, 793829-0003, 793829-0006, 795637-0001.
SW-G050 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-G050
SW-G050 - Compatibility table
| Shaft and wheel SW-G050 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Garrett | GT1546LJS | 786997-0001 | -- |
| Garrett | GT1549VTC | 793829-0001 | -- |
| Garrett | GT1549VTC | 793829-0002 | -- |
| Garrett | GT1549VTC | 793829-0003 | -- |
| Garrett | GT1549VTC | 793829-0006 | -- |
| Garrett | GT1546JS | 795637-0001 | 144109364R, 8201054152 |
SW-G050 - Part Properties
Blades (Shaft blades count): 12
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 42.0
Exducer Diameter B (Exducer Diameter B): 35.7
Tip Height C (Tip Height C): 6.3
Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1
Shaft Length (mm) (Shaft Length (mm)): 92.5
Back (Back): Closed
Piston Ring Type (Piston Ring Type): Twin
Model (Model): GT15-25
786997-0001, 144109364R, 795637-0001, 8201054152
