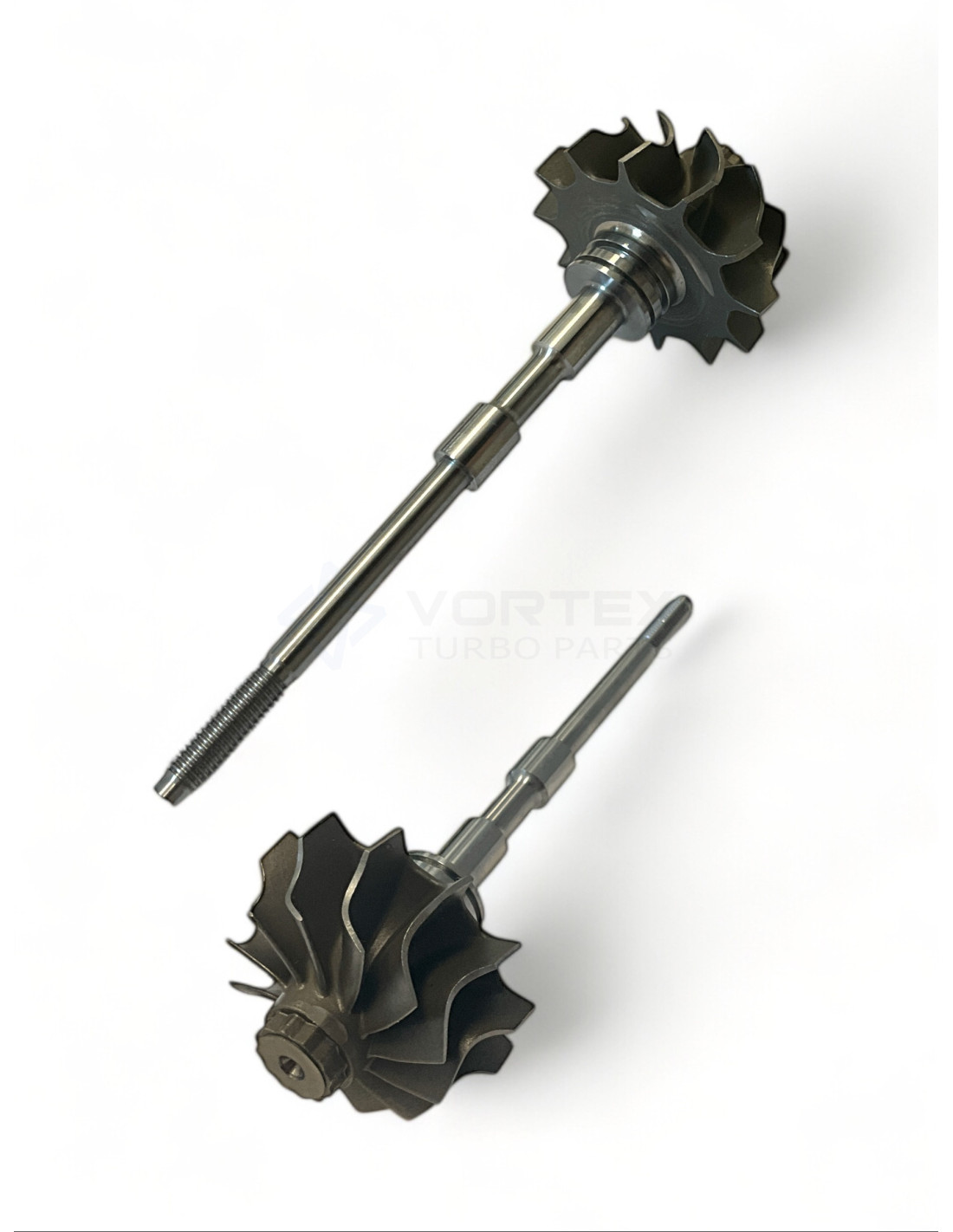

Shaft and wheel SW-G051
Shaft and wheel SW-G051

Shaft and wheel SW-G051

SW-G051
New
In Stock (8 Items)
€31.46
Tax included

434712-0034, SW-G051

Shaft and wheel SW-G051 for turbos 708866-0002, 708867-0002, 762785-0001, 762785-0002, 762785-0003.



SW-G051 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G051

SW-G051 - Alternative numbers

GHO (Garrett original part number): 434712-0034

SW-G051 - Compatibility table

Shaft and wheel SW-G051 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT1544S708866-000224461826
GarrettGT1544S708867-000224461825
GarrettGT1549S762785-0001144101946R, 144110463R, 7701477300, 7711368774, 8200543466B
GarrettGT1549S762785-0002144101946R, 144110463R, 7701477300, 7711368774, 8200637628
GarrettGT1549S762785-0003144101946R, 144110463R, 7701477300, 7711368774, 8200766344

SW-G051 - Part Properties

Blades (Shaft blades count): 12

Type (Shaft & Wheel Type): Slender

Inducer Diameter A (Inducer Diameter A): 42.2

Exducer Diameter B (Exducer Diameter B): 34.4

Tip Height C (Tip Height C): 5.5

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 92.5

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): GT15-25

24461826, 708866-0002, 24461825, 708867-0002, 144101946R, 144110463R, 762785-0001, 7701477300, 7711368774, 8200543466B, 144101946R, 144110463R, 762785-0002, 7701477300, 7711368774, 8200637628, 144101946R, 144110463R, 762785-0003, 7701477300, 7711368774, 8200766344

Data updated: 2023-11-09 14:06:44
