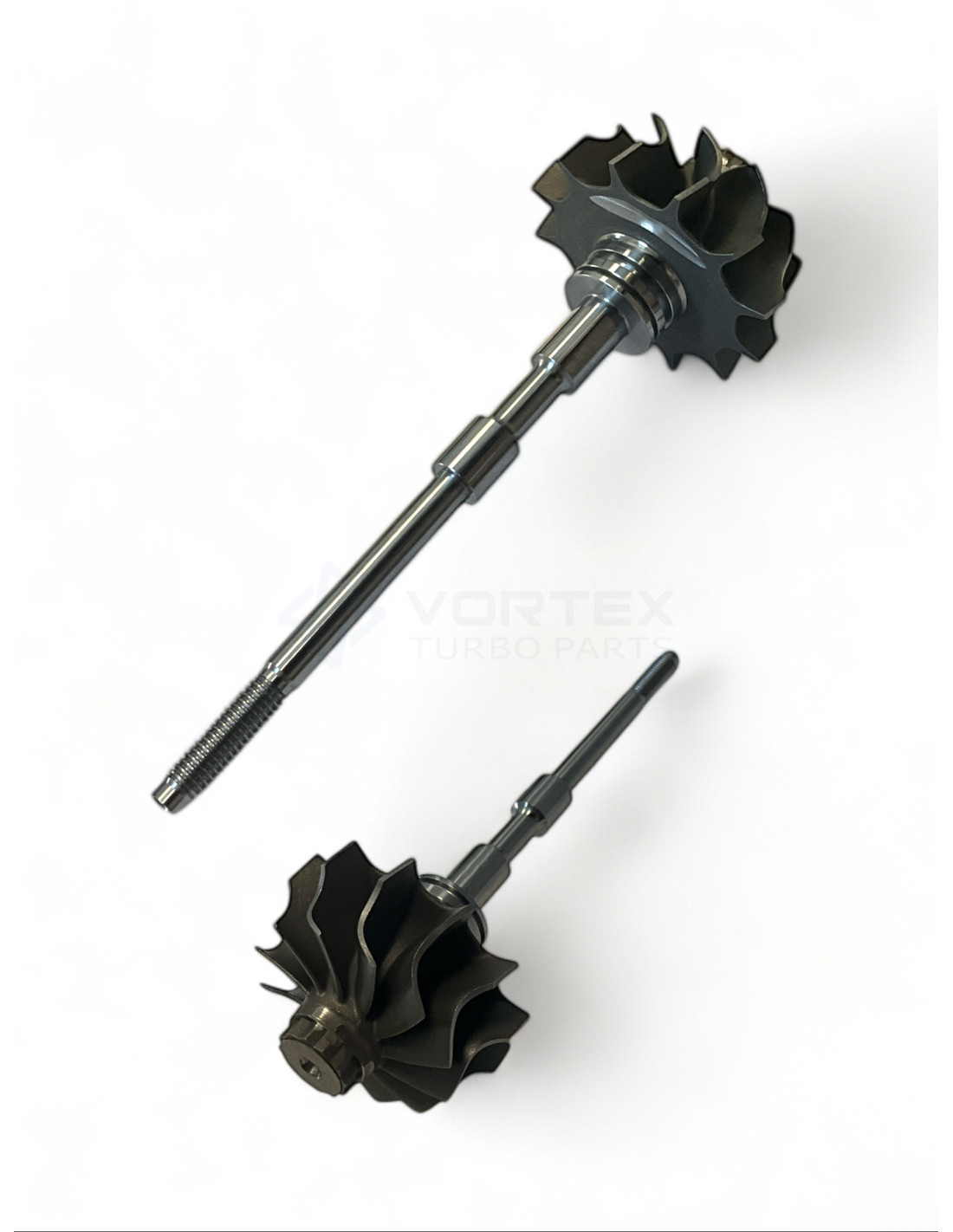

Shaft and wheel SW-G053
Shaft and wheel SW-G053

Shaft and wheel SW-G053

SW-G053
New
Last items in stock (4 Items)
€35.24
Tax included

1100-016-261, 1102-115-435, 434712-0033, SW-G053

Shaft and wheel SW-G053 for turbos 757349-0001, 757349-0002, 757349-0003, 757349-0004.

See below for more info.



SW-G053 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G053

SW-G053 - Alternative numbers

Jrone (Jrone): 1100-016-261

Melett (Melett): 1102-115-435

GHO (Garrett original part number): 434712-0033

KD (KODE): TW-077

SW-G053 - Compatibility table

Shaft and wheel SW-G053 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT15757349-00018200433479D
GarrettGT15757349-00028200683866
GarrettGT15757349-00038200766765A
GarrettGT15757349-00048200879731

SW-G053 - Part Properties

Blades (Shaft blades count): 12

Type (Shaft & Wheel Type): Slender

Inducer Diameter A (Inducer Diameter A): 42.0

Exducer Diameter B (Exducer Diameter B): 35.7

Tip Height C (Tip Height C): 5.5

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 92.5

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): GT15-25

Data updated: 2022-12-19 15:16:43
