Shaft and wheel SW-G054
Shaft and wheel SW-G054

Shaft and wheel SW-G054

SW-G054
New
In Stock (18 Items)
€25.17
Tax included

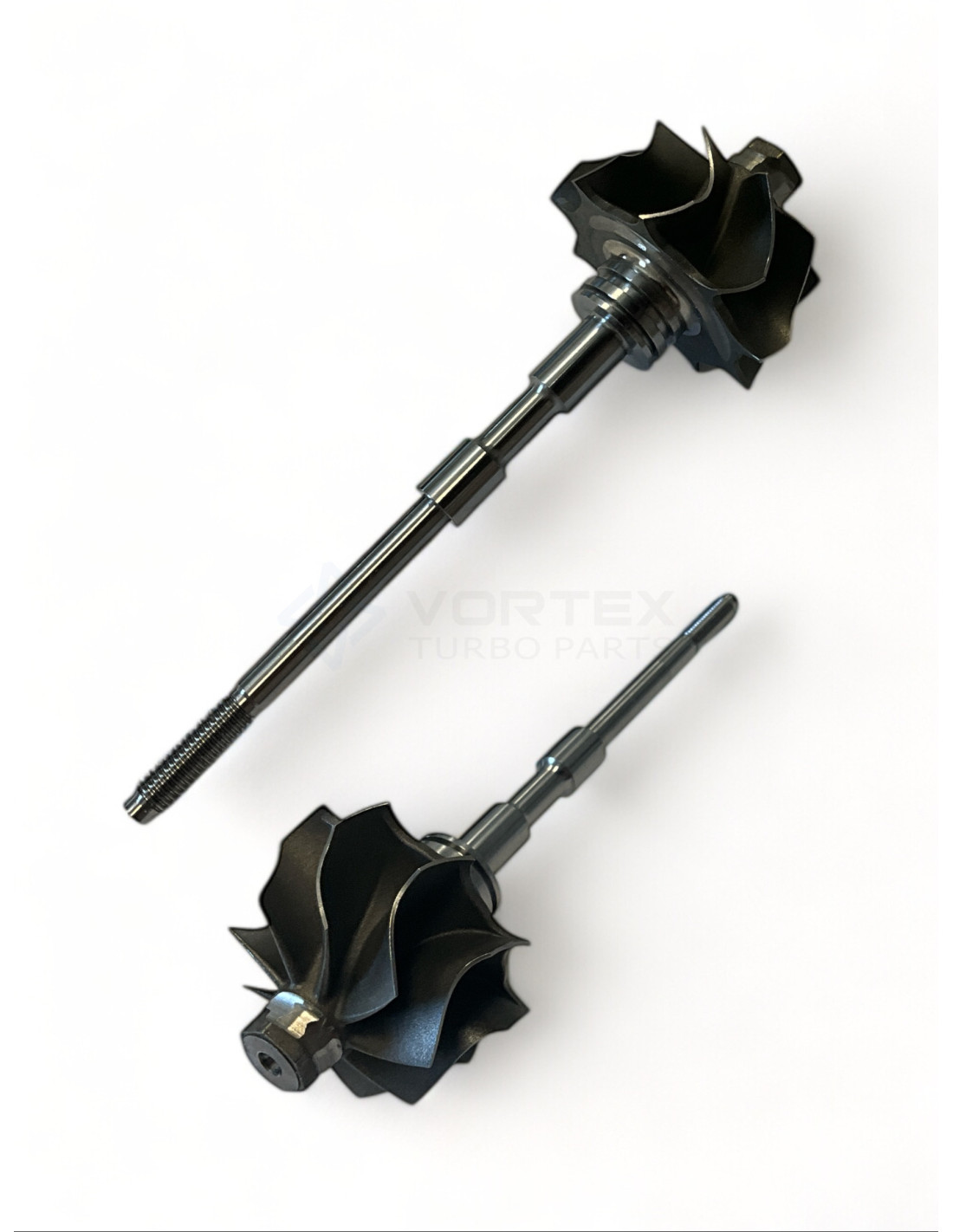

Shaft and wheel SW-G054 for turbos 751851-0001, 751851-0002, 751851-0003, 751851-0004.



SW-G054 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G054

SW-G054 - Compatibility table

Shaft and wheel SW-G054 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT1646MV751851-0001038253016K
GarrettGT1646MV751851-0002038253016K
GarrettGT1646MV751851-000303G253014F
GarrettGT1646MV751851-000403G253014F

SW-G054 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Slender

Inducer Diameter A (Inducer Diameter A): 40.2

Exducer Diameter B (Exducer Diameter B): 34.0

Tip Height C (Tip Height C): 7.0

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 92.5

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): GT15-25

038253016K, 751851-0001, 038253016K, 751851-0002, 03G253014F, 751851-0003, 03G253014F, 751851-0004

Data updated: 2024-09-16 18:58:49
