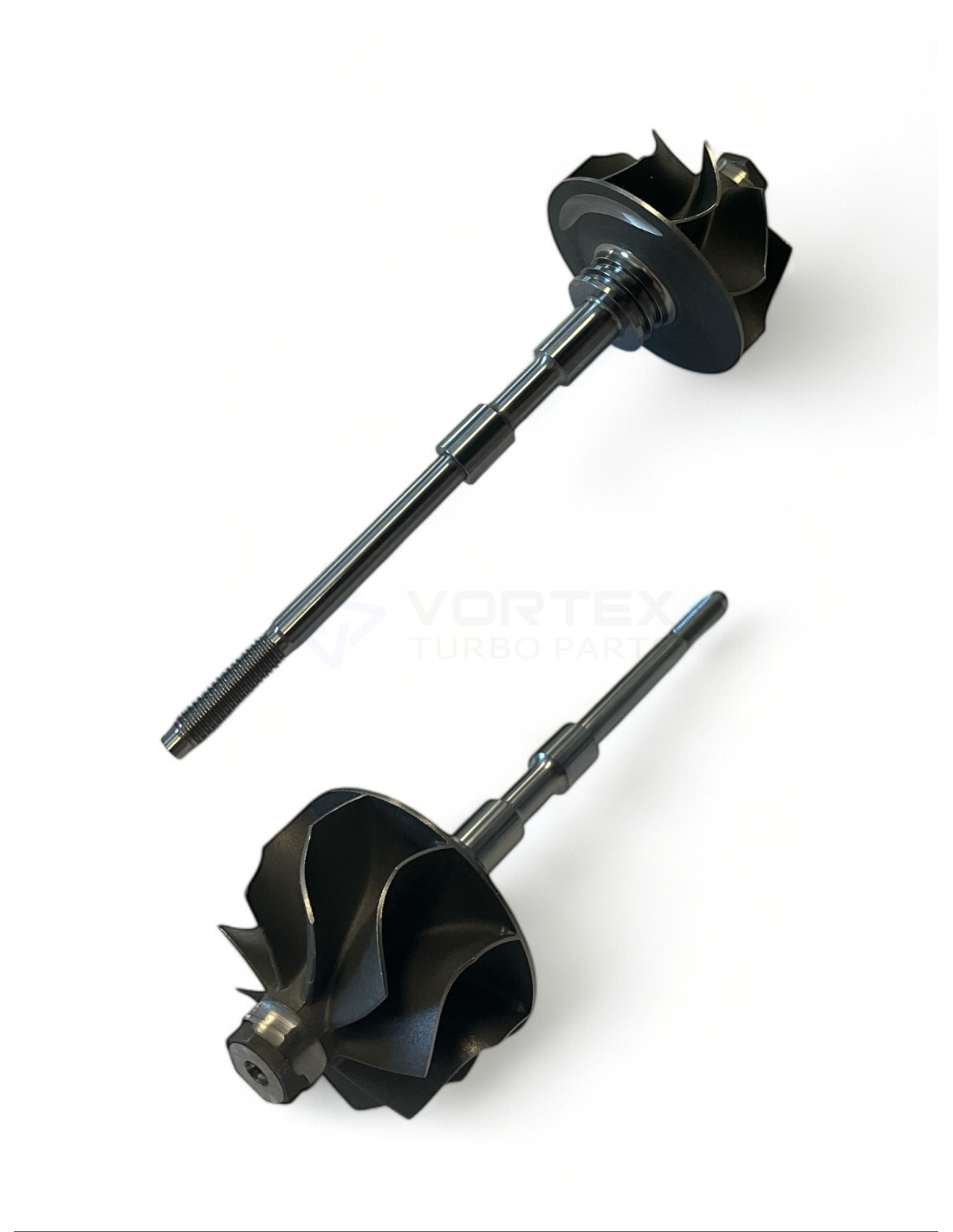

Shaft and wheel SW-G056
Shaft and wheel SW-G056

Shaft and wheel SW-G056

SW-G056
New
In Stock (21 Items)
€28.31
Tax included

Shaft and wheel SW-G056 for turbos 757886-0003, 757886-0004, 757886-0005, 757886-0006, 757886-0007, 757886-0008, 779591-0001, 779591-0002.



SW-G056 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G056

SW-G056 - Compatibility table

Shaft and wheel SW-G056 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGTB1649V757886-00032823127400
GarrettGTB1649V757886-00042823127450
GarrettGTB1649V757886-00052823127460
GarrettGTB1649V757886-00062823127860
GarrettGTB1649V757886-00072823127480
GarrettGTB1649V757886-00082823127470
GarrettGTB15V779591-0001--
GarrettGTB15V779591-00028980536744

SW-G056 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Slender

Inducer Diameter A (Inducer Diameter A): 41.0

Exducer Diameter B (Exducer Diameter B): 34.5

Tip Height C (Tip Height C): 8.2

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 92.5

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Twin

Model (Model): GT15-25

2823127400, 757886-0003, 2823127450, 757886-0004, 2823127460, 757886-0005, 2823127860, 757886-0006, 2823127480, 757886-0007, 2823127470, 757886-0008, 779591-0001, 779591-0002, 8980536744

Data updated: 2024-09-16 18:57:57
