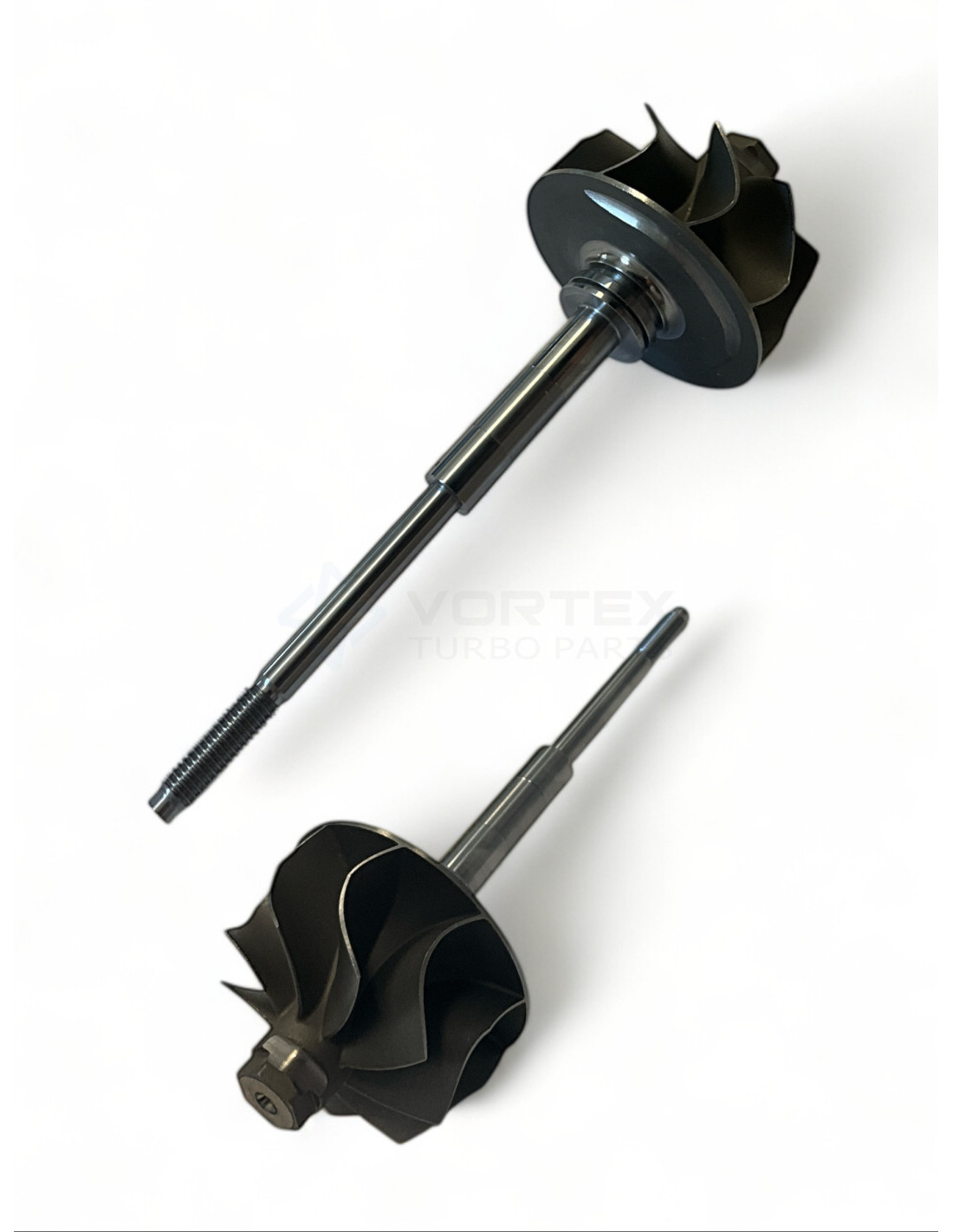

Shaft and wheel SW-G057
Shaft and wheel SW-G057

Shaft and wheel SW-G057

SW-G057
New
In Stock (18 Items)
€34.61
Tax included

Shaft and wheel SW-G057 for turbos 765015-0002, 765016-0001, 765016-0002, 765016-0003, 765016-0004, 765016-0005, 765016-0006, 769701-0001.



SW-G057 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G057

SW-G057 - Compatibility table

Shaft and wheel SW-G057 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGTA1749V765015-00028200695785
GarrettGTA1752LV765016-00017701477162, 8200583860, 8201124252
GarrettGTA1752LV765016-00027701477162, 8200695786, 8201124252
GarrettGTA1752LV765016-00037701476620, 7701477162, 8200741580, 8201124245, 8201124252
GarrettGTA1752LV765016-00047701477162, 8200741579A, 8201124252
GarrettGTA1752LV765016-00057701477162, 8200741579A, 8201051044A, 8201124252
GarrettGTA1752LV765016-00067701477162, 8200741579A, 8201051044A, 8201051044B, 8201124252
GarrettGTB1756VK769701-0001059145715M, 059145715R, 059145715T, 059145721E, 059145721F

SW-G057 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 43.0

Exducer Diameter B (Exducer Diameter B): 39.5

Tip Height C (Tip Height C): 9.0

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 92.5

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Single

Model (Model): GT15-25

765015-0002, 8200695785, 765016-0001, 7701477162, 8200583860, 8201124252, 765016-0002, 7701477162, 8200695786, 8201124252, 765016-0003, 7701476620, 7701477162, 8200741580, 8201124245, 8201124252, 765016-0004, 7701477162, 8200741579A, 8201124252, 765016-0005, 7701477162, 8200741579A, 8201051044A, 8201124252, 765016-0006, 7701477162, 8200741579A, 8201051044A, 8201051044B, 8201124252, 059145715M, 059145715R, 059145715T, 059145721E, 059145721F, 769701-0001

Data updated: 2023-11-09 14:08:33
