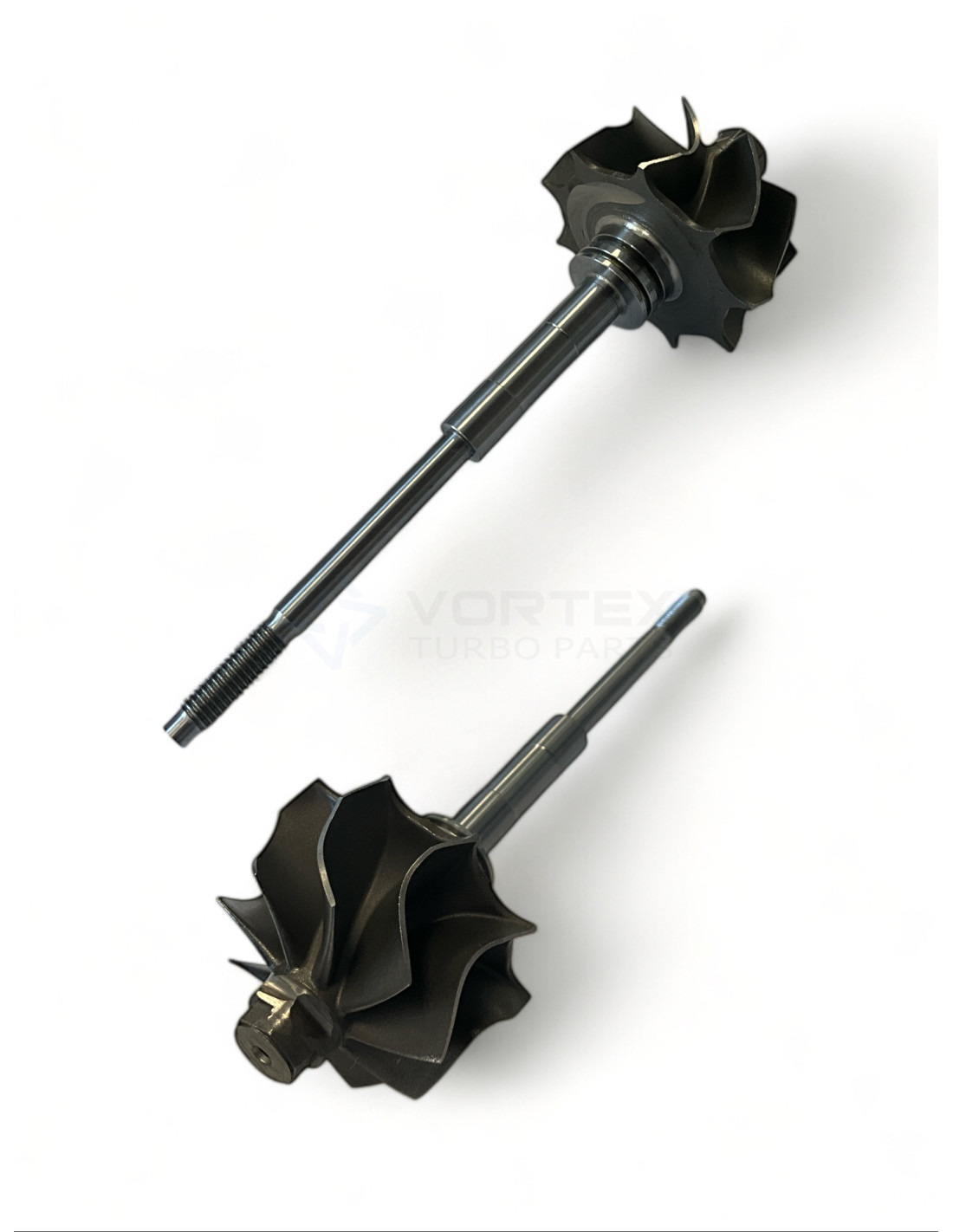

Shaft and wheel SW-G066
Shaft and wheel SW-G066

Shaft and wheel SW-G066

SW-G066
New
Last items in stock (2 Items)
€26.11
Tax included

434533-0018, SW-G066

Shaft and wheel SW-G066 for turbos 712766-0001, 712766-0002, 716665-0001, 716665-0002, 750718-0001, 750720-0003.



SW-G066 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G066

SW-G066 - Alternative numbers

GHO (Garrett original part number): 434533-0018

SW-G066 - Compatibility table

Shaft and wheel SW-G066 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT1749V712766-0001--
GarrettGT1749V712766-0002--
GarrettGT1749V716665-0001--
GarrettGT1749V716665-0002--
GarrettGT1749V750718-0001--
GarrettGT17 VNT750720-0003--

SW-G066 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 43.1

Exducer Diameter B (Exducer Diameter B): 37.5

Tip Height C (Tip Height C): 6.3

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 92.5

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): GT15-25

712766-0001, 712766-0002, 716665-0001, 716665-0002, 750718-0001, 750720-0003

Data updated: 2024-09-16 18:49:03
