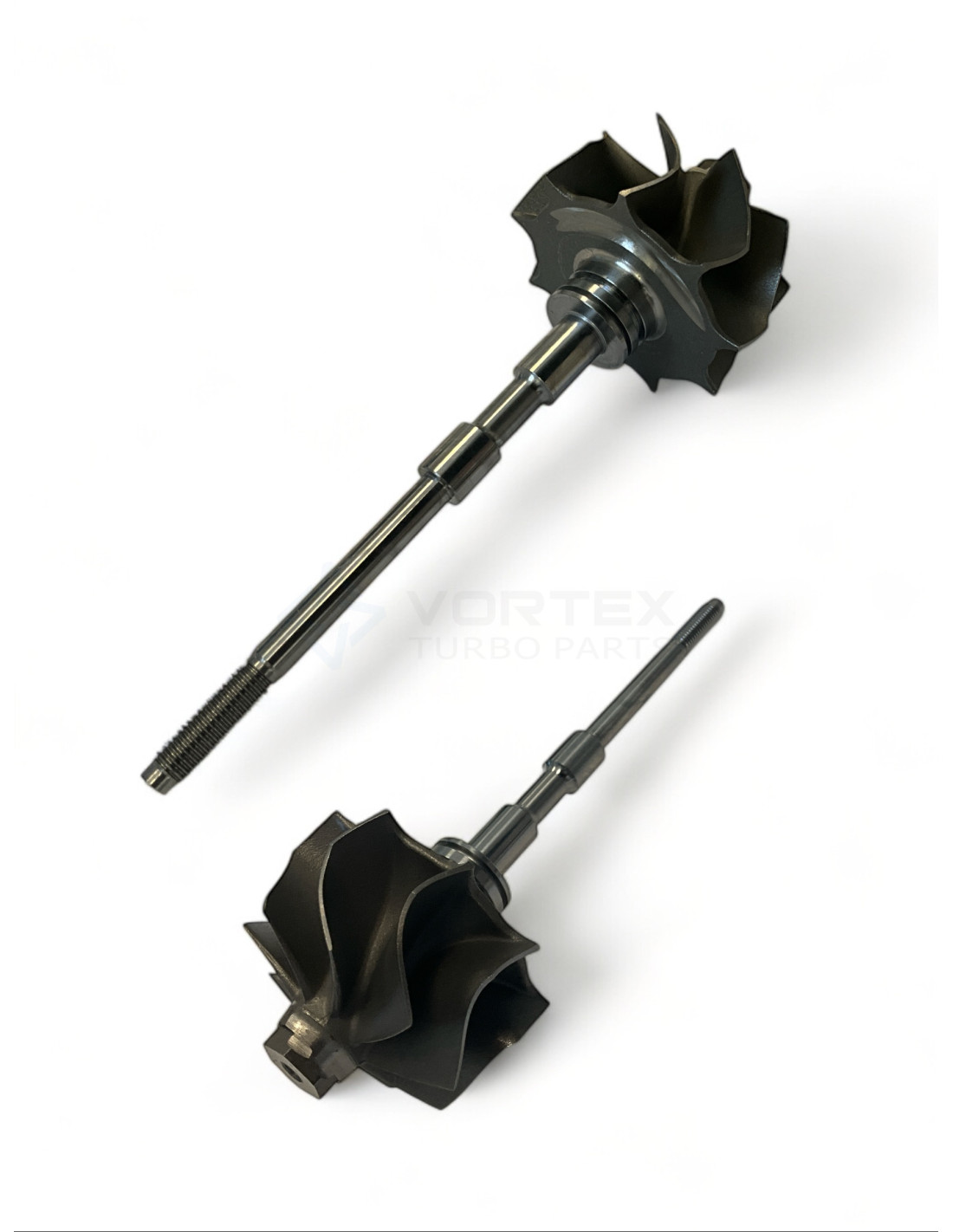

Shaft and wheel SW-G065
Shaft and wheel SW-G065

Shaft and wheel SW-G065

SW-G065
New
Last items in stock (4 Items)
€29.89
Tax included

704580-0001, SW-G065

Shaft and wheel SW-G065 for turbos 703894-0001, 703894-0002, 703894-0003, 704412-0001, 705097-0001, 705097-0002, 705204-0001, 705204-0002, 709835-0001, 709835-0002.



SW-G065 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G065

SW-G065 - Alternative numbers

GHO (Garrett original part number): 704580-0001

SW-G065 - Compatibility table

Shaft and wheel SW-G065 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT1849V703894-0001--
GarrettGT1849V703894-000209202690
GarrettGT1849V703894-000324442215
GarrettGT1852V704412-0001--
GarrettGT1849V705097-0001--
GarrettGT1849V705097-0002--
GarrettGT1849V705204-0001--
GarrettGT1849V705204-0002--
GarrettGT1852V709835-0001A6110960799
GarrettGT1852V709835-0002A6110960799
GarrettGT1852V709836-00016110960899, 6110961599, 6110961699, A6110960899
GarrettGT1852V709836-00036110960899, 6110961599, 6110961699, A6110960899
GarrettGT1852V709836-00046110960899, 6110961599, 6110961699, A6110960899
GarrettGT1852V709836-00056110960899, 6110961599, 6110961699, A6110960899
GarrettGT1852V711006-0001A6110960999
GarrettGT1852V711006-0003A6110960999
GarrettGTA1852V711006-0004A6110960999
GarrettGT1849V717625-0001--
GarrettGT1849V717626-000124445062
GarrettGT1849V717626-0004860086
GarrettGT1849V717628-000124443096
GarrettGT1852V726698-0001A6110961599
GarrettGT1852V726698-0002A6110961599
GarrettGT1852V726698-0003A6110961599
GarrettGT18727271-0010--
GarrettGT18727271-0011--
GarrettGT18778794-0001A6110961699

SW-G065 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Slender

Inducer Diameter A (Inducer Diameter A): 44.5

Exducer Diameter B (Exducer Diameter B): 40.0

Tip Height C (Tip Height C): 8.3

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 92.5

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): GT15-25

703894-0001, 09202690, 703894-0002, 24442215, 703894-0003, 704412-0001, 705097-0001, 705097-0002, 705204-0001, 705204-0002, 709835-0001, A6110960799, 709835-0002, A6110960799, 6110960899, 6110961599, 6110961699, 709836-0001, A6110960899, 6110960899, 6110961599, 6110961699, 709836-0003, A6110960899, 6110960899, 6110961599, 6110961699, 709836-0004, A6110960899, 6110960899, 6110961599, 6110961699, 709836-0005, A6110960899, 711006-0001, A6110960999, 711006-0003, A6110960999, 711006-0004, A6110960999, 717625-0001, 24445062, 717626-0001, 717626-0004, 860086, 24443096, 717628-0001, 726698-0001, A6110961599, 726698-0002, A6110961599, 726698-0003, A6110961599, 727271-0010, 727271-0011, 778794-0001, A6110961699
