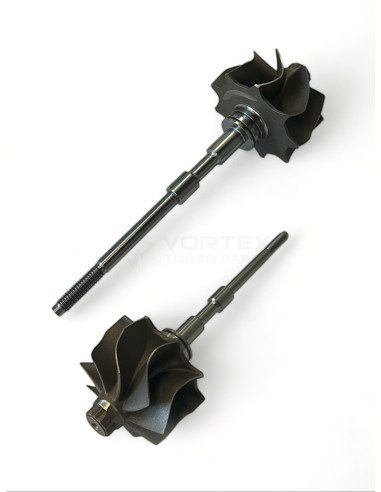

Shaft and wheel SW-G069
Shaft and wheel SW-G069

Shaft and wheel SW-G069

SW-G069
New
In Stock (14 Items)
€28.31
Tax included

717904-0001, 717904-0029, SW-G069

Shaft and wheel SW-G069 for turbos 717478-0001, 717478-0002, 717478-0003, 717478-0004, 717478-0005, 717478-0006, 731877-0004, 731877-0007, 731877-0009, 750431-0004.



SW-G069 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G069

SW-G069 - Alternative numbers

GHO (Garrett original part number): 717904-0001

GHO (Garrett original part number): 717904-0029

SW-G069 - Compatibility table

Shaft and wheel SW-G069 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT1749V717478-000111657787628, 11657793093, 11657794144, 7787626F
GarrettGT1749V717478-000211657787628, 11657793093, 11657794144, 7787626F
GarrettGT1749V717478-000311657787628, 11657793093, 11657794144, 7787626F
GarrettGT1749V717478-000411657787628, 11657793093, 11657794144, 7787626G
GarrettGT1749V717478-000511657787628, 11657793093, 11657794144, 7787627G
GarrettGT1749V717478-00067787628G
GarrettGT1749V731877-000411657790994, 7790992H
GarrettGT1749V731877-00077790994H
GarrettGT1749V731877-00097790994I
GarrettGT1749V750431-000411657787628, 11657792413, 11657793093, 11657794022, 11657794144, 7794140C
GarrettGT1749V750431-000711657787628, 11657792413, 11657793093, 11657794022, 11657794144, 7794140D
GarrettGT1749V750431-001011657787628, 11657792413, 11657793093, 11657794022, 11657794144, 7794140000
GarrettGT1749V750431-00127794144000
GarrettGT1749V750431-00137794144000

SW-G069 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Slender

Inducer Diameter A (Inducer Diameter A): 43.1

Exducer Diameter B (Exducer Diameter B): 39.5

Tip Height C (Tip Height C): 8.0

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 92.5

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): GT15-25

11657787628, 11657793093, 11657794144, 717478-0001, 7787626F, 11657787628, 11657793093, 11657794144, 717478-0002, 7787626F, 11657787628, 11657793093, 11657794144, 717478-0003, 7787626F, 11657787628, 11657793093, 11657794144, 717478-0004, 7787626G, 11657787628, 11657793093, 11657794144, 717478-0005, 7787627G, 717478-0006, 7787628G, 11657790994, 731877-0004, 7790992H, 731877-0007, 7790994H, 731877-0009, 7790994I, 11657787628, 11657792413, 11657793093, 11657794022, 11657794144, 750431-0004, 7794140C, 11657787628, 11657792413, 11657793093, 11657794022, 11657794144, 750431-0007, 7794140D, 11657787628, 11657792413, 11657793093, 11657794022, 11657794144, 750431-0010, 7794140000, 750431-0012, 7794144000, 750431-0013, 7794144000
