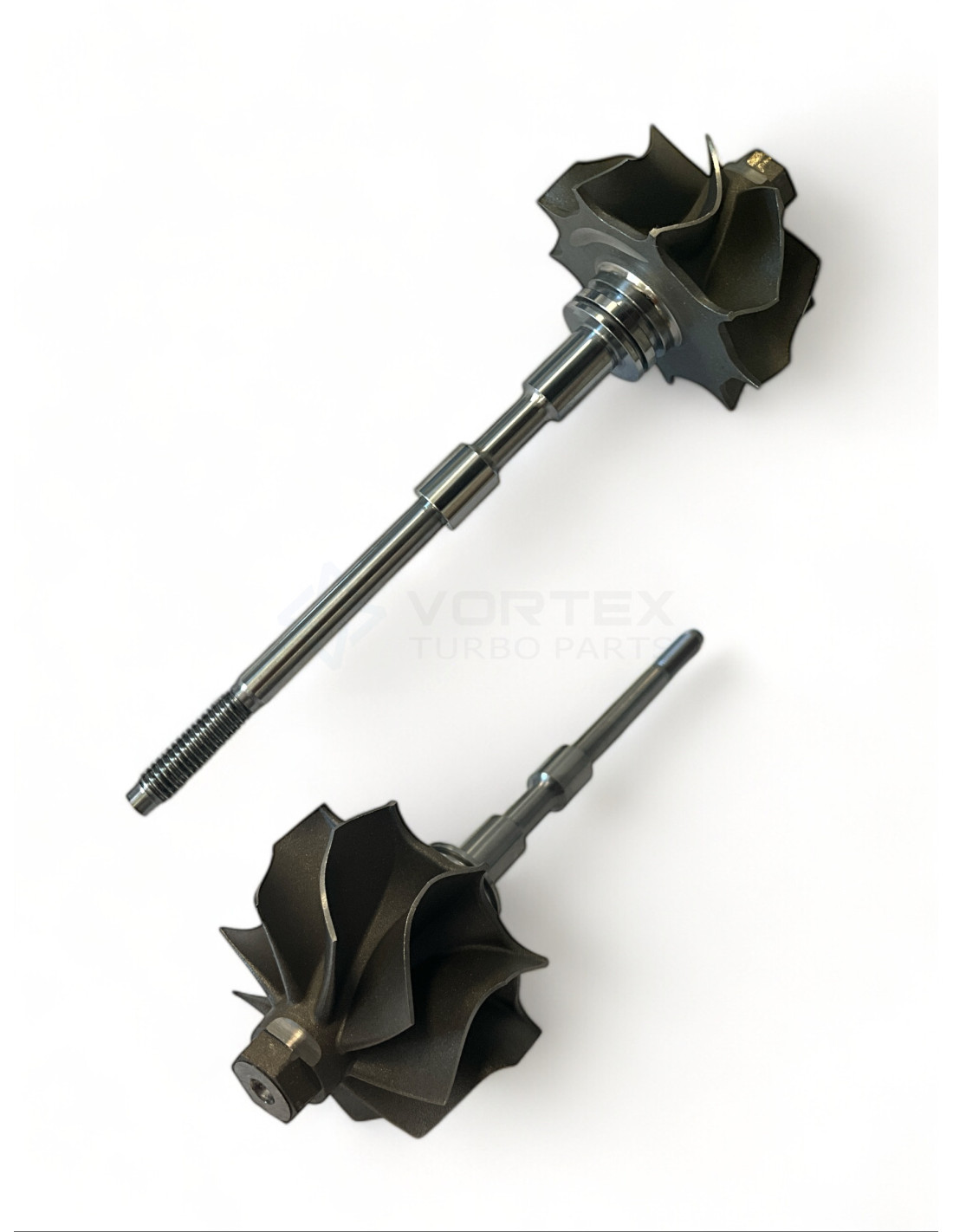

Shaft and wheel SW-G070
Shaft and wheel SW-G070

Shaft and wheel SW-G070

SW-G070
New
In Stock (11 Items)
€28.31
Tax included

434714-0004, 434714-0019, 434714-0034, SW-G070

Shaft and wheel SW-G070 for turbos 452204-0001, 452204-0003, 452204-0004, 452204-0005, 452204-0007.



SW-G070 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G070

SW-G070 - Alternative numbers

GHO (Garrett original part number): 434714-0004

GHO (Garrett original part number): 434714-0019

GHO (Garrett original part number): 434714-0034

SW-G070 - Compatibility table

Shaft and wheel SW-G070 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT1752S452204-00019172123
GarrettGT1752S452204-00039198631
GarrettGT1752S452204-00049172123
GarrettGT1752S452204-00055955703
GarrettGT1752S452204-00075955703

SW-G070 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Slender

Inducer Diameter A (Inducer Diameter A): 44.2

Exducer Diameter B (Exducer Diameter B): 37.3

Tip Height C (Tip Height C): 7.5

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 92.5

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): GT15-25

452204-0001, 9172123, 452204-0003, 9198631, 452204-0004, 9172123, 452204-0005, 5955703, 452204-0007, 5955703

Data updated: 2024-09-16 19:02:45
