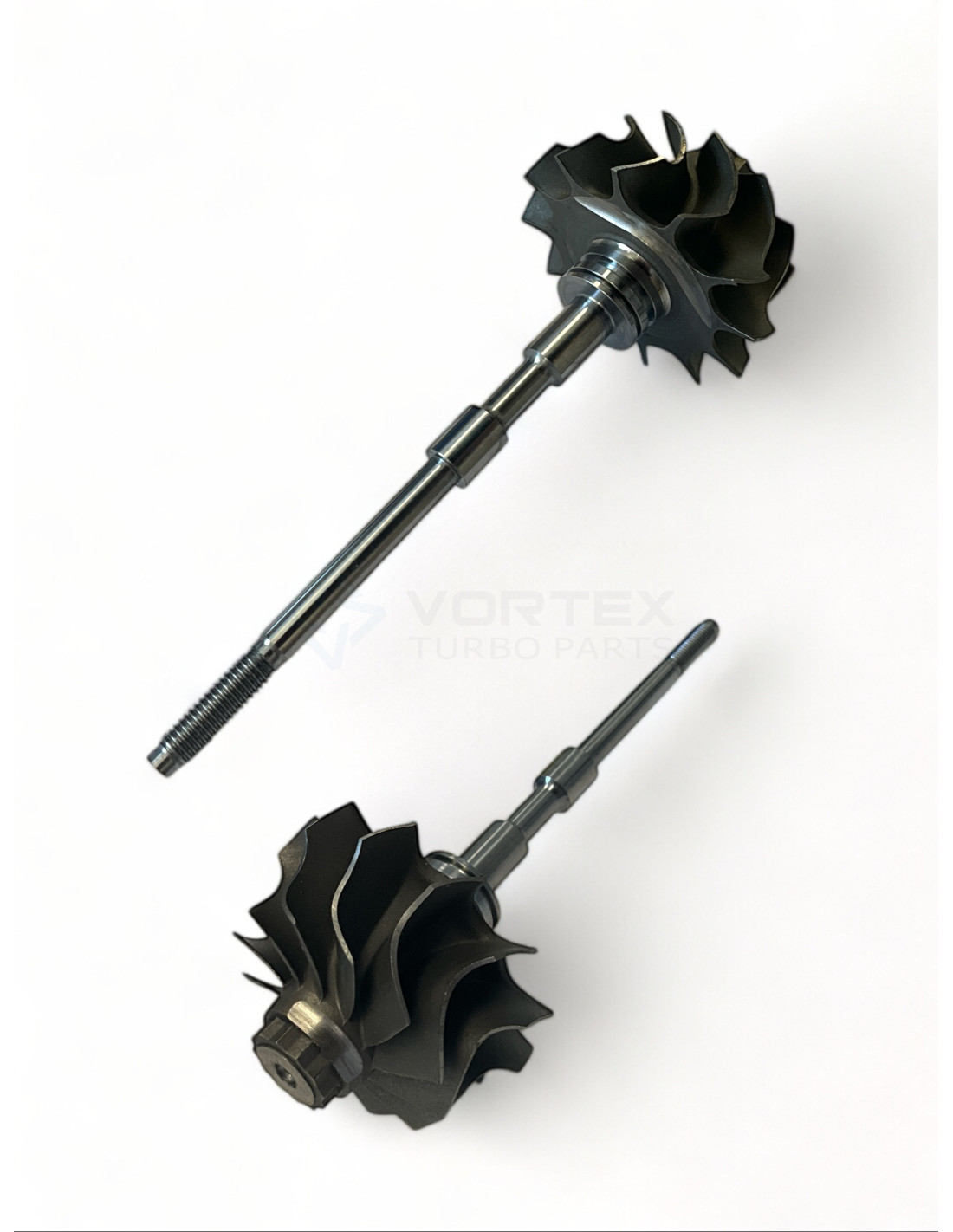

Shaft and wheel SW-G081
Shaft and wheel SW-G081

Shaft and wheel SW-G081

SW-G081
New
In Stock (5 Items)
€37.75
Tax included

436504-0004, SW-G081

Shaft and wheel SW-G081 for turbos 708618-0004, 708618-0005, 708618-0006, 708618-0007, 708618-0008, 709035-0004, 709035-0005, 709035-0006, 714716-0003, 726194-0001.



SW-G081 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G081

SW-G081 - Alternative numbers

GHO (Garrett original part number): 436504-0004

SW-G081 - Compatibility table

Shaft and wheel SW-G081 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT2049S708618-0004--
GarrettGT2049S708618-0005--
GarrettGT2049S708618-0006--
GarrettGT2049S708618-0007--
GarrettGT2049S708618-0008--
GarrettGT2049S709035-0004--
GarrettGT2049S709035-0005--
GarrettGT2049S709035-0006--
GarrettGT2049S714716-0003--
GarrettGT2049S726194-0001--
GarrettGT2049S726194-0002--
GarrettGT2049S726194-0003--

SW-G081 - Part Properties

Blades (Shaft blades count): 12

Type (Shaft & Wheel Type): Slender

Inducer Diameter A (Inducer Diameter A): 47.0

Exducer Diameter B (Exducer Diameter B): 38.5

Tip Height C (Tip Height C): 6.3

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 92.5

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): GT15-25

708618-0004, 708618-0005, 708618-0006, 708618-0007, 708618-0008, 709035-0004, 709035-0005, 709035-0006, 714716-0003, 726194-0001, 726194-0002, 726194-0003

Data updated: 2024-09-16 19:05:18
