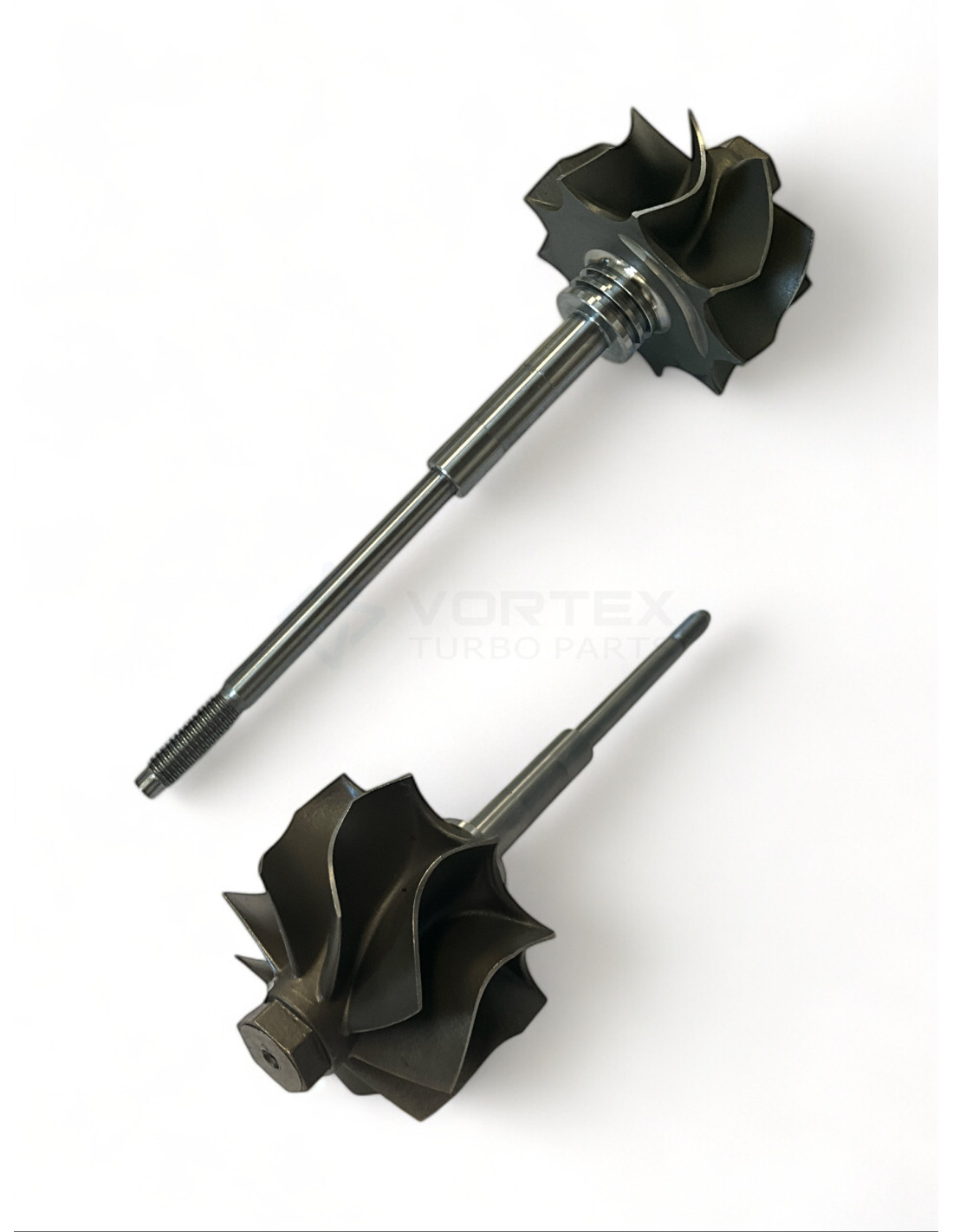

Shaft and wheel SW-G087
Shaft and wheel SW-G087

Shaft and wheel SW-G087

SW-G087
New
In Stock (53 Items)
€31.46
Tax included

Shaft and wheel SW-G087 for turbos 743507-0009, 757608-0001, 761399-0001, 761399-0002, 765155-0004, 765155-0007, 765155-0008, 765156-0003, 765156-0004, 765156-0007.



SW-G087 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G087

SW-G087 - Compatibility table

Shaft and wheel SW-G087 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGTA2259VK743507-0009A6420900080
GarrettGTA2052GVK757608-0001A6420900280
GarrettGT2056V761399-00016420900680, 6420901980, 6420904880, 6420906180, A6420901580
GarrettGT2056V761399-00026420900680, 6420901980, 6420904880, 6420906180, A6420901580
GarrettGT2056V765155-0004A6420901480
GarrettGT2056V765155-0007A6420901480
GarrettGTA2056VK765155-0008A6420901480
GarrettGT2056V765156-00036420900680, 6420901980, 6420904880, 6420906180, A6420901580
GarrettGT2056V765156-00046420900680, 6420901980, 6420904880, 6420906180, A6420901580
GarrettGT2056V765156-00076420900680, 6420901980, 6420904880, 6420906180, A6420901580
GarrettGT2056V770895-0002--
GarrettGT2056V770895-0007--
GarrettGT2056V770895-0008--

SW-G087 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 47.0

Exducer Diameter B (Exducer Diameter B): 43.0

Tip Height C (Tip Height C): 8.4

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 99.0

Back (Back): Open

Piston Ring Type (Piston Ring Type): Twin

Model (Model): GT15-25

743507-0009, A6420900080, 757608-0001, A6420900280, 6420900680, 6420901980, 6420904880, 6420906180, 761399-0001, A6420901580, 6420900680, 6420901980, 6420904880, 6420906180, 761399-0002, A6420901580, 765155-0004, A6420901480, 765155-0007, A6420901480, 765155-0008, A6420901480, 6420900680, 6420901980, 6420904880, 6420906180, 765156-0003, A6420901580, 6420900680, 6420901980, 6420904880, 6420906180, 765156-0004, A6420901580, 6420900680, 6420901980, 6420904880, 6420906180, 765156-0007, A6420901580, 770895-0002, 770895-0007, 770895-0008

Data updated: 2024-09-11 13:20:47
