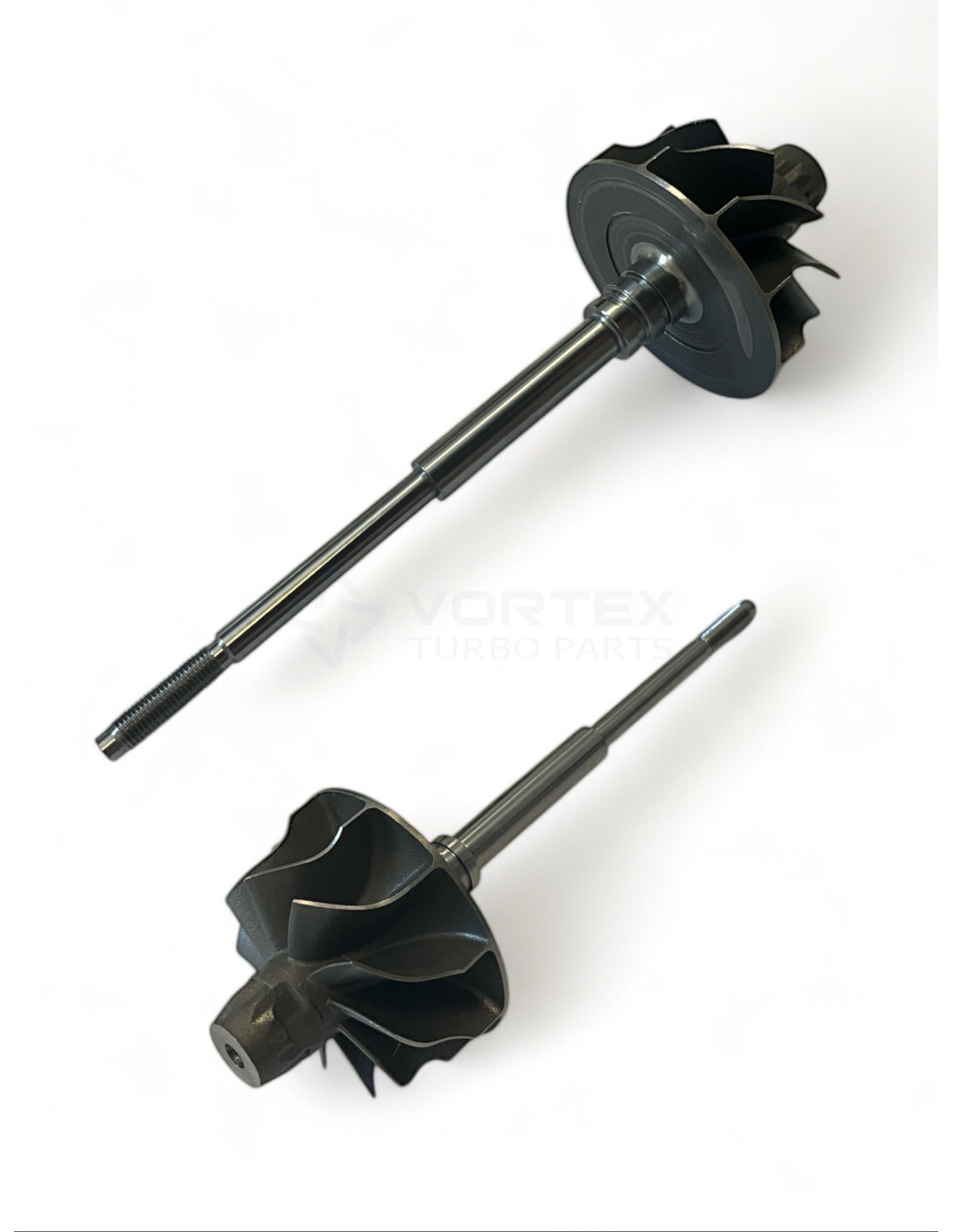

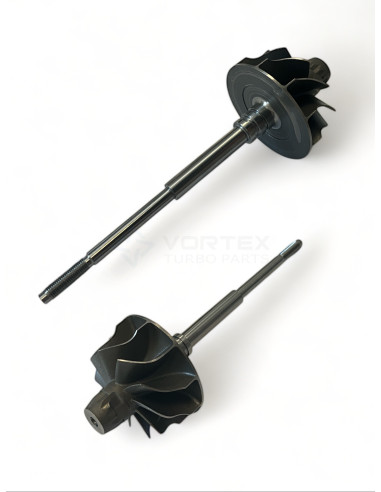

Shaft and wheel SW-K056R
SW-K056R
New
In Stock
(13 Items)
€34.61
Tax included
Shaft and wheel SW-K056R for turbos 54389700002, 54389700006.
SW-K056R - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-K056R
SW-K056R - Compatibility table
| Shaft and wheel SW-K056R - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| BorgWarner | BV38 | 54389700002 | 144111232R, 144114125R |
| BorgWarner | BV38 | 54389700006 | 144114825R, 144117462R, 6070900780 |
SW-K056R - Part Properties
Blades (Shaft blades count): 10
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 37.5
Exducer Diameter B (Exducer Diameter B): 32.3
Tip Height C (Tip Height C): 6.0
Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.1
Shaft Length (mm) (Shaft Length (mm)): 83.5
Back (Back): Closed
Piston Ring Type (Piston Ring Type): Single
Rotation (Rotation): Reverse
Model (Model): KP/BV38
54389700006, 54389700002, 144111232R, 144114125R, 5438 970 0002, 144114825R, 144117462R, 5438 970 0006, 6070900780
