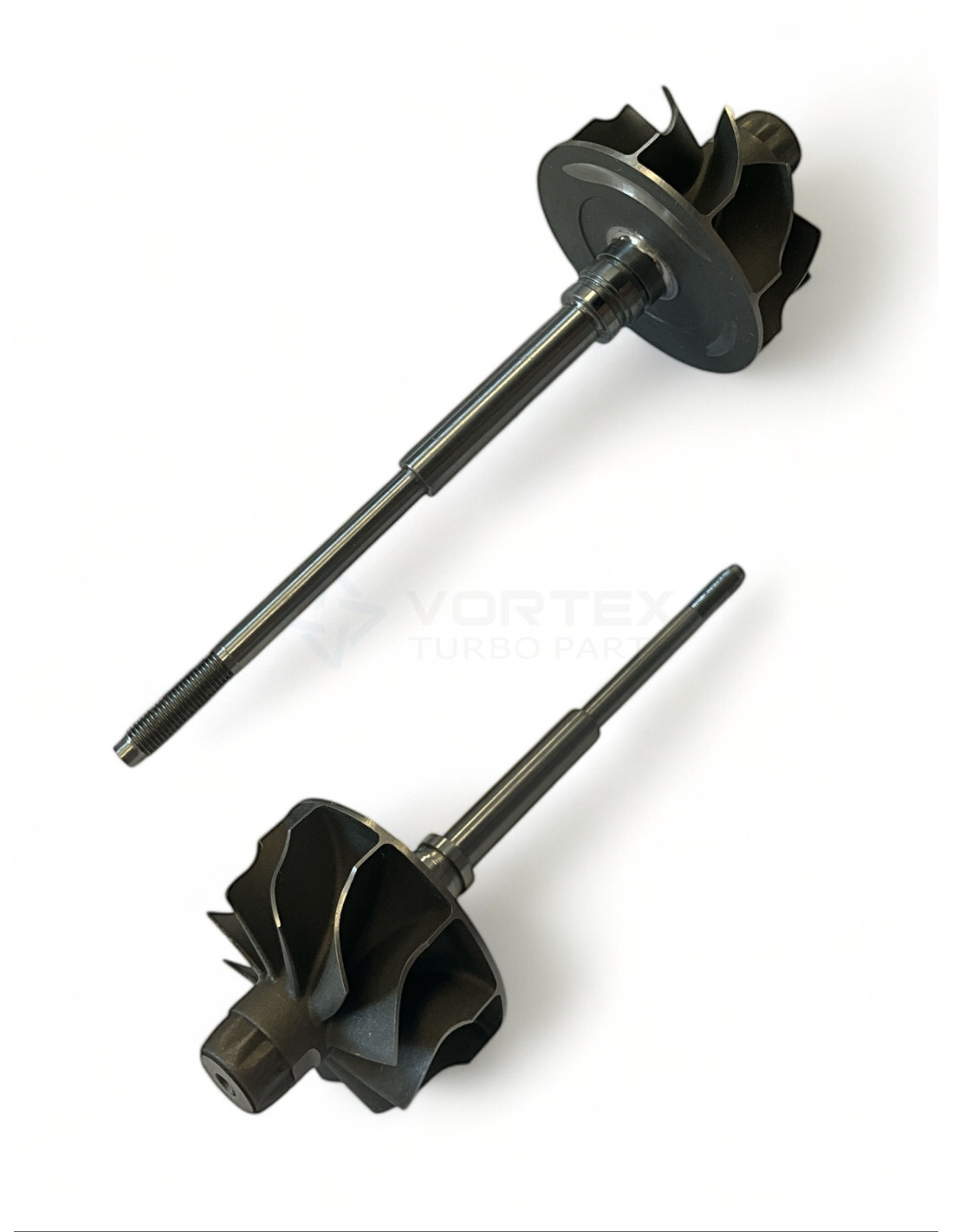

Shaft and wheel SW-K057
Shaft and wheel SW-K057

Shaft and wheel SW-K057

SW-K057
New
In Stock (79 Items)
€31.46
Tax included

Shaft and wheel SW-K057 for turbos 54389700000, 54389700001, 54389700005, 54389700007, 54389700017, 54389700018, 54389700019.



SW-K057 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-K057

SW-K057 - Compatibility table

Shaft and wheel SW-K057 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
BorgWarnerBV38_4-1870KYE340.18AVBXC54389700000144115874R
BorgWarnerBV38_4-1870KYE340.18AVBXC54389700001144117969R
BorgWarnerBV385438970000514411-0219R, 144110219R
BorgWarnerBV3854389700007144118607R
BorgWarnerBV3854389700017144114225R, 144115874R, 144117969R, 144118607R
BorgWarnerBV385438970001814411-0972R, 144110972R, 6220900500, A6220900500
BorgWarnerBV3854389700019144116575R

SW-K057 - Part Properties

Blades (Shaft blades count): 10

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 37.6

Exducer Diameter B (Exducer Diameter B): 33.4

Tip Height C (Tip Height C): 5.8

Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.1

Shaft Length (mm) (Shaft Length (mm)): 83.5

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Single

Model (Model): KP/BV38

54389700019, 54389700018, 54389700017, 54389700007, 54389700005, 54389700001, 54389700000, 144115874R, 5438 970 0000, 144117969R, 5438 970 0001, 14411-0219R, 144110219R, 5438 970 0005, 144118607R, 5438 970 0007, 144114225R, 144115874R, 144117969R, 144118607R, 5438 970 0017, 14411-0972R, 144110972R, 5438 970 0018, 6220900500, A6220900500, 144116575R, 5438 970 0019

Data updated: 2024-09-16 19:12:53
