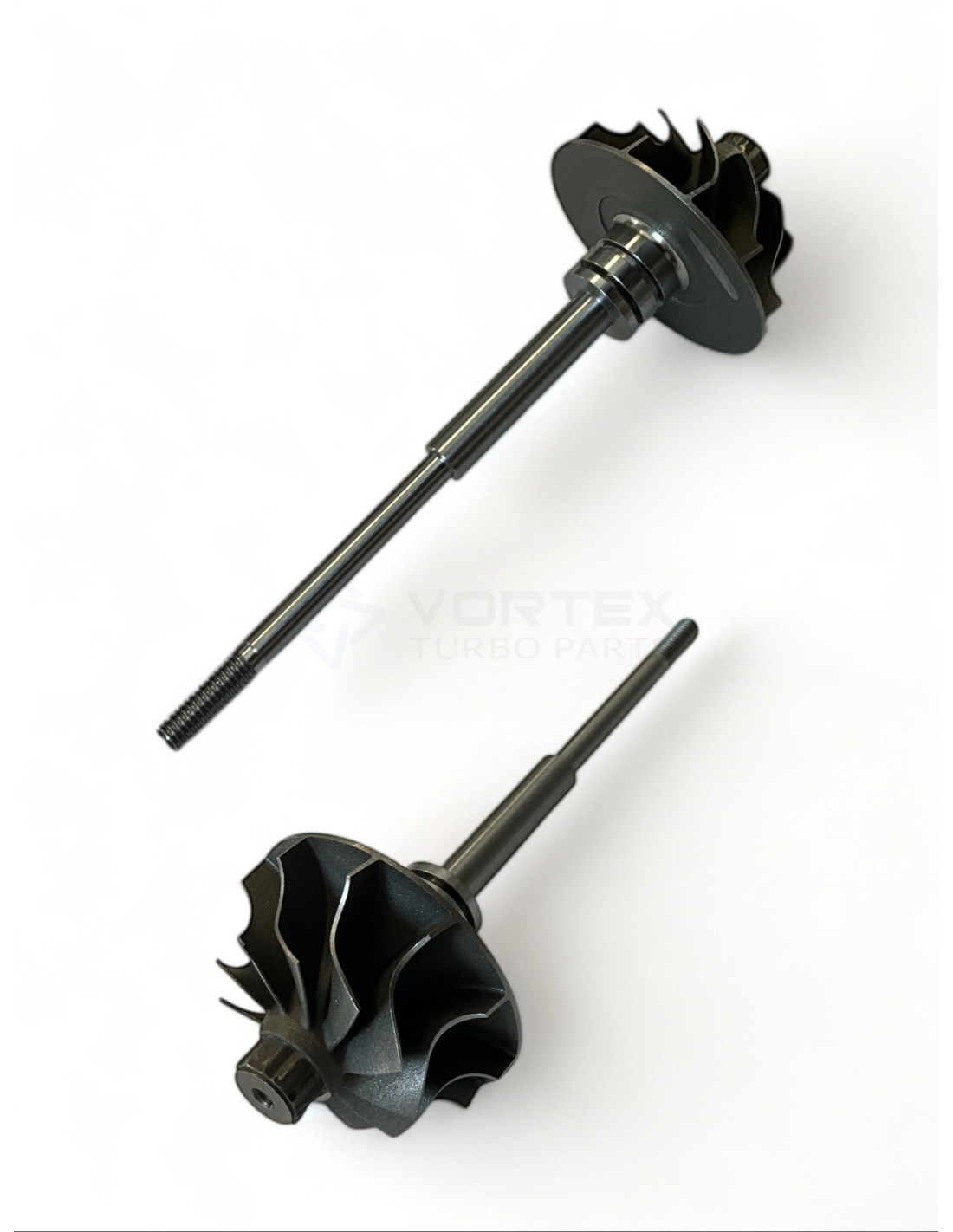

Shaft and wheel SW-M002
Shaft and wheel SW-M002

Shaft and wheel SW-M002

SW-M002
New
Out-of-Stock
€31.46
Tax included

Shaft and wheel SW-M002 for turbos 49173-02800, 49173-07502, 49173-07503, 49173-07504, 49173-07506, 49173-07507, 49173-07508, 49173-07721.




SW-M002 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-M002

SW-M002 - Compatibility table

Shaft and wheel SW-M002 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
MitsubishiTD02549173-02800--
MitsubishiTD025S2-06T4-2.349173-07502--
MitsubishiTD025S2-06T4-2.349173-07503--
MitsubishiTD025S2-06T4-2.349173-07504--
MitsubishiTD025S2-06T4-2.349173-07506--
MitsubishiTD025S2-06T449173-07507--
MitsubishiTD025S2-06T449173-07508--
MitsubishiTD02549173-07721--

SW-M002 - Part Properties

Blades (Shaft blades count): 11

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 37.0

Exducer Diameter B (Exducer Diameter B): 27.7

Tip Height C (Tip Height C): 4.7

Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.0

Shaft Length (mm) (Shaft Length (mm)): 83.0

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Single

Model (Model): TD025

49173-02800, 49173-07502, 49173-07503, 49173-07504, 49173-07506, 49173-07507, 49173-07508, 49173-07721

Data updated: 2025-02-11 16:56:18
