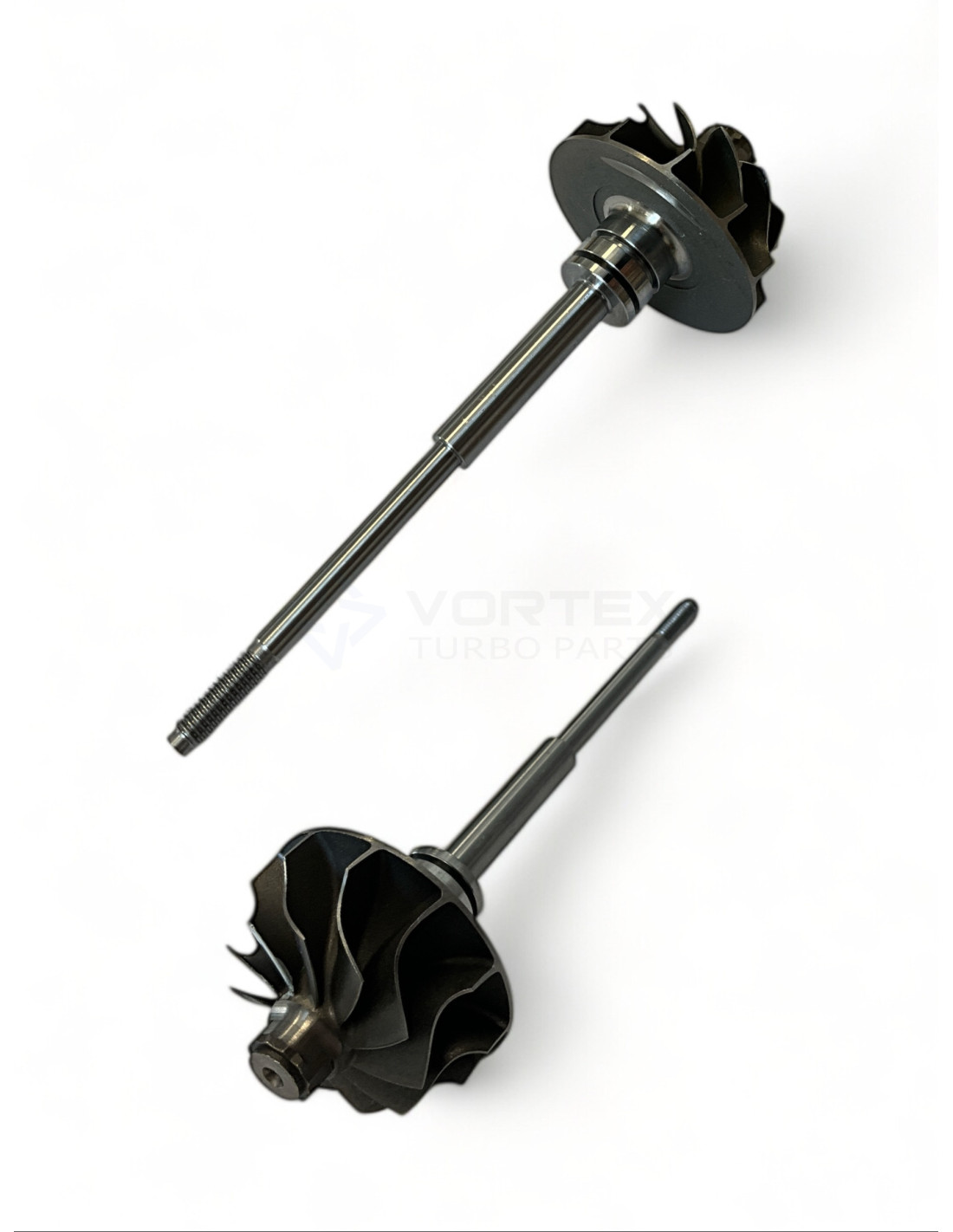

Shaft and wheel SW-M004
Shaft and wheel SW-M004

Shaft and wheel SW-M004

SW-M004
New
In Stock (54 Items)
€36.18
Tax included

Shaft and wheel SW-M004 for turbos 49373-02000, 49373-02001, 49373-02002, 49373-02003, 49373-02004, 49373-02012, 49373-02013, 49373-02022, 49373-02023, 49373-03000.



SW-M004 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-M004

SW-M004 - Compatibility table

Shaft and wheel SW-M004 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
MitsubishiTD02549373-02000--
MitsubishiTD02549373-02001--
MitsubishiTD02549373-020020375Q9, 0375R0, 9673283680, AV6Q-6K682-BB, AV6Q6K682BB
MitsubishiTD02549373-02003--
MitsubishiTD0249373-02004--
MitsubishiTD02549373-02012--
MitsubishiTD02549373-02013--
MitsubishiTD02549373-02022--
MitsubishiTD02549373-02023--
MitsubishiTD02549373-03000--
MitsubishiTD02549373-03001--
MitsubishiTD02549373-03002--
MitsubishiTD02549373-03003--
MitsubishiTD02549373-03004--
MitsubishiTD02549373-03005--
MitsubishiTD02549373-03006--
MitsubishiTD02549373-03010--
MitsubishiTD02549373-03011--
MitsubishiTD02549373-03012--
MitsubishiTD02H2-04TVT-2.349373-04000144108035R
MitsubishiTD02H2-04TVT-2.349373-04001144108035R
MitsubishiTD02H2-04TVT-2.349373-04002144108035R
MitsubishiTD02H2-04TVT-2.349373-04003144108035R
MitsubishiTD02H2-04TVT-2.349373-05000--
MitsubishiTD02H2-04TVT-2.349373-05001--
MitsubishiTD02H2-04TVT-2.349373-05003--
MitsubishiTD02H2-04TVT-2.349373-05004--
MitsubishiTD02H2-04TVT-2.349373-05005--
MitsubishiTD02H2-04TVT-2.349373-05020--
MitsubishiTD02H249373-05100--
MitsubishiTD02H249373-05101--
MitsubishiTD02H249373-05102--
MitsubishiTD02H249373-05103--
MitsubishiTD02H249373-05104--
MitsubishiTD02H249373-05105--

SW-M004 - Part Properties

Blades (Shaft blades count): 11

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 35.5

Exducer Diameter B (Exducer Diameter B): 28.3

Tip Height C (Tip Height C): 5.5

Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.0

Shaft Length (mm) (Shaft Length (mm)): 83.0

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Single

Model (Model): TD025

49373-02000, 49373-02001, 0375Q9, 0375R0, 49373-02002, 9673283680, AV6Q-6K682-BB, AV6Q6K682BB, 49373-02003, 49373-02004, 49373-02012, 49373-02013, 49373-02022, 49373-02023, 49373-03000, 49373-03001, 49373-03002, 49373-03003, 49373-03004, 49373-03005, 49373-03006, 49373-03010, 49373-03011, 49373-03012, 144108035R, 49373-04000, 144108035R, 49373-04001, 144108035R, 49373-04002, 144108035R, 49373-04003, 49373-05000, 49373-05001, 49373-05003, 49373-05004, 49373-05005, 49373-05020, 49373-05100, 49373-05101, 49373-05102, 49373-05103, 49373-05104, 49373-05105

Data updated: 2024-12-18 19:51:50
