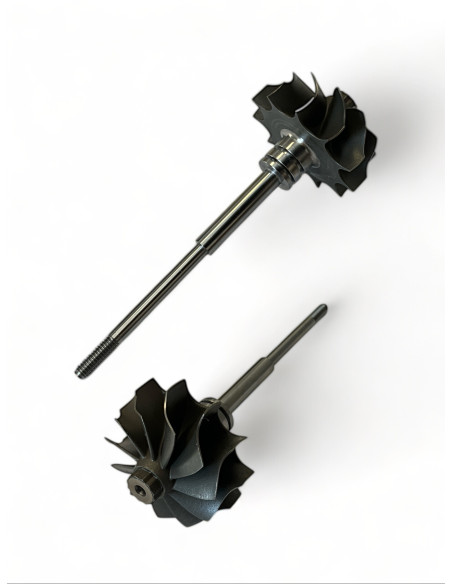

Shaft and wheel SW-M008
Shaft and wheel SW-M008

Shaft and wheel SW-M008

SW-M008
New
In Stock (12 Items)
€34.61
Tax included

Shaft and wheel SW-M008 for turbos 49131-05200, 49131-05210, 49131-05211, 49131-05212, 49131-05252, 49131-05300, 49131-05310, 49131-05312, 49131-05313, 49131-05353.



SW-M008 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-M008

SW-M008 - Compatibility table

Shaft and wheel SW-M008 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
MitsubishiTD0349131-05200--
MitsubishiTD0349131-052100375K7
MitsubishiTD0349131-05211--
MitsubishiTD0349131-052120375K7
MitsubishiTD0349131-05252--
MitsubishiTD0349131-05300--
MitsubishiTD0349131-05310--
MitsubishiTD0349131-05312--
MitsubishiTD0349131-05313--
MitsubishiTD0349131-05353--
MitsubishiTD0349131-05400--
MitsubishiTD0349131-05401--
MitsubishiTD0349131-05402--
MitsubishiTD0349131-05403--
MitsubishiTD0349131-05452--
MitsubishiTD03L4-07T-VG49131-06003860070, 860128, 860147, 93169104, 97300092, 98102364
MitsubishiTD03L4-07T-VG49131-06004860070, 860128, 860147, 93169104, 97300092, 98102364
MitsubishiTD03L4-07T-VG49131-06005860070, 860128, 860147, 93169104, 97300092, 98102364
MitsubishiTD03L4-07T-VG49131-06006860070, 860128, 860147, 93169104, 97300092, 98102364
MitsubishiTD03L4-07T-VG49131-06007860070, 860128, 860147, 93169104, 97300092, 98102364
MitsubishiTD0349131-06300--
MitsubishiTD0349131-06320--
MitsubishiTD0349131-06340--
MitsubishiTD0349131-06701--
MitsubishiTD0349131-06702--
MitsubishiTD0349131-06703--
MitsubishiTD0349131-06704--
MitsubishiTD0349131-06705--
MitsubishiTD0349131-06706--
MitsubishiTD0349131-06800--
MitsubishiTD0349131-06801--
MitsubishiTD0349131-06900--
MitsubishiTD0349131-07001--
MitsubishiTD0349131-07005--
MitsubishiTD0349131-07006--
MitsubishiTD0349131-07007--
MitsubishiTD0349131-07008--
MitsubishiTD0349131-07009--
MitsubishiTD0349131-07011--
MitsubishiTD0349131-07015--
MitsubishiTD0349131-07016--
MitsubishiTD0349131-07017--
MitsubishiTD0349131-07018--
MitsubishiTD0349131-07019--
MitsubishiTD0349131-07025--
MitsubishiTD0349131-07026--
MitsubishiTD0349131-07027--
MitsubishiTD0349131-07028--
MitsubishiTD0349131-07029--
MitsubishiTD0349131-07030--
MitsubishiTD0349131-07031--
MitsubishiTD0349131-07040--
MitsubishiTD0349131-07041--
MitsubishiTD0349131-07050--
MitsubishiTD0349131-07051--
MitsubishiTD0349131-07065--
MitsubishiTD0349131-07066--
MitsubishiTD0349131-07067--
MitsubishiTD0349131-07068--
MitsubishiTD0349131-07069--
MitsubishiTD0349131-07105--
MitsubishiTD0349131-07160--
MitsubishiTD0349131-07161--
MitsubishiTD03L4-10TK3-4.949131-07171--
MitsubishiTD0349131-07205--
MitsubishiTD0349131-07206--
MitsubishiTD0349131-07207--
MitsubishiTD0349131-07208--
MitsubishiTD0349131-07209--
MitsubishiTD0349131-07210--
MitsubishiTD0349131-07235--
MitsubishiTD0349131-07236--
MitsubishiTD0349131-07237--
MitsubishiTD0349131-07238--
MitsubishiTD0349131-07239--
MitsubishiTD0349131-07255--
MitsubishiTD0349131-07256--
MitsubishiTD0349131-07257--
MitsubishiTD0349131-07258--
MitsubishiTD0349131-07259--
MitsubishiTD0349131-07265--
MitsubishiTD0349131-07266--
MitsubishiTD0349131-07267--
MitsubishiTD0349131-07268--
MitsubishiTD0349131-07269--
MitsubishiTD0349131-07270--
MitsubishiTD0349131-07271--
MitsubishiTD0349131-07272--
MitsubishiTD0349131-07273--
MitsubishiTD0349131-07294--
MitsubishiTD0349131-07305--
MitsubishiTD0349131-07306--
MitsubishiTD0349131-07307--
MitsubishiTD0349131-07308--
MitsubishiTD0349131-07309--
MitsubishiTD0349131-07329--
MitsubishiTD0349131-07335--
MitsubishiTD0349131-07336--
MitsubishiTD0349131-07337--
MitsubishiTD0349131-07338--
MitsubishiTD0349131-07339--
MitsubishiTD0349131-07356--
MitsubishiTD0349131-07357--
MitsubishiTD0349131-07358--
MitsubishiTD0349131-07359--
MitsubishiTD0349131-07360--

SW-M008 - Part Properties

Blades (Shaft blades count): 11

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 39.8

Exducer Diameter B (Exducer Diameter B): 35.1

Tip Height C (Tip Height C): 6.5

Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.0

Shaft Length (mm) (Shaft Length (mm)): 83.0

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): TD03

49131-05200, 0375K7, 49131-05210, 49131-05211, 0375K7, 49131-05212, 49131-05252, 49131-05300, 49131-05310, 49131-05312, 49131-05313, 49131-05353, 49131-05400, 49131-05401, 49131-05402, 49131-05403, 49131-05452, 49131-06003, 860070, 860128, 860147, 93169104, 97300092, 98102364, 49131-06004, 860070, 860128, 860147, 93169104, 97300092, 98102364, 49131-06005, 860070, 860128, 860147, 93169104, 97300092, 98102364, 49131-06006, 860070, 860128, 860147, 93169104, 97300092, 98102364, 49131-06007, 860070, 860128, 860147, 93169104, 97300092, 98102364, 49131-06300, 49131-06340, 49131-06701, 49131-06702, 49131-06703, 49131-06704, 49131-06705, 49131-06706, 49131-06800, 49131-06801, 49131-06900, 49131-07001, 49131-07005, 49131-07006, 49131-07007, 49131-07008, 49131-07009, 49131-07011, 49131-07015, 49131-07016, 49131-07017, 49131-07018, 49131-07019, 49131-07025, 49131-07026, 49131-07027, 49131-07028, 49131-07029, 49131-07030, 49131-07031, 49131-07040, 49131-07041, 49131-07050, 49131-07051, 49131-07065, 49131-07066, 49131-07067, 49131-07068, 49131-07069, 49131-07105, 49131-07160, 49131-07161, 49131-07171, 49131-07205, 49131-07206, 49131-07207, 49131-07208, 49131-07209, 49131-07210, 49131-07235, 49131-07236, 49131-07237, 49131-07238, 49131-07239, 49131-07255, 49131-07256, 49131-07257, 49131-07258, 49131-07259, 49131-07265, 49131-07266, 49131-07267, 49131-07268, 49131-07269, 49131-07270, 49131-07271, 49131-07272, 49131-07273, 49131-07294, 49131-07305, 49131-07306, 49131-07307, 49131-07308, 49131-07309, 49131-07329, 49131-07335, 49131-07336, 49131-07337, 49131-07338, 49131-07339, 49131-07356, 49131-07357, 49131-07358, 49131-07359, 49131-07360

Data updated: 2024-12-18 19:34:49
