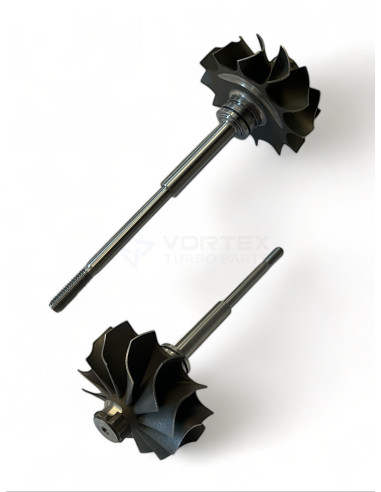

Shaft and wheel SW-M012
49177-30100, SW-M012
Shaft and wheel SW-M012 for turbos 4035393, 49189-00501, 49189-01350, 49189-01360, 49189-01365, 49189-01400, 49189-01401, 49189-01410, 49189-01420, 49189-01430.
SW-M012 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-M012
SW-M012 - Alternative numbers
MHO (Mitsubishi original part number): 49177-30100
SW-M012 - Compatibility table
Shaft and wheel SW-M012 - Compatible turbochargers | |||
---|---|---|---|
TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
Holset | HX25 | 4035393 | -- |
Mitsubishi | TD04HL-15G | 49189-00501 | -- |
Mitsubishi | TD04HL-16T | 49189-01350 | -- |
Mitsubishi | TD04H | 49189-01360 | -- |
Mitsubishi | TD04H | 49189-01365 | -- |
Mitsubishi | TD04H | 49189-01400 | -- |
Mitsubishi | TD04H | 49189-01401 | -- |
Mitsubishi | TD04H | 49189-01410 | -- |
Mitsubishi | TD04H | 49189-01420 | -- |
Mitsubishi | TD04H | 49189-01430 | -- |
Mitsubishi | TD04H | 49189-01435 | -- |
Mitsubishi | TD04HL-15T-6 | 49189-01800 | -- |
Mitsubishi | TD04HL-15T-6 | 49189-01810 | -- |
Mitsubishi | TD04HL-15T-6 | 49189-01820 | -- |
Mitsubishi | TD04HL-15T-6 | 49189-01830 | -- |
Mitsubishi | TD04H | 49189-02350 | -- |
Mitsubishi | TD04 | 49189-02911 | -- |
Mitsubishi | TD04 | 49189-02912 | -- |
Mitsubishi | TD04 | 49189-02913 | 504137713, 504340177 |
Mitsubishi | TD04H | 49189-02914 | 504092197, 504137713, 504340177 |
Mitsubishi | TD04 | 49189-02950 | -- |
Mitsubishi | TD04 | 49189-02951 | 0375L8, 0375P9, 504110697, 504304178 |
Mitsubishi | TD04 | 49189-05000 | -- |
Mitsubishi | TD04H | 49189-05111 | -- |
Mitsubishi | TD04HL-13T-8 | 49189-05200 | -- |
Mitsubishi | TD04HL-13T | 49189-05201 | -- |
Mitsubishi | TD04 | 49189-05202 | -- |
Mitsubishi | TD04H | 49189-08515 | -- |
SW-M012 - Part Properties
Blades (Shaft blades count): 12
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 52.0
Exducer Diameter B (Exducer Diameter B): 45.6
Tip Height C (Tip Height C): 8.3
Journal Bearing Diameter D (Journal Bearing Diameter D): 7.5
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.0
Shaft Length (mm) (Shaft Length (mm)): 93.0
Back (Back): Open
Piston Ring Type (Piston Ring Type): Single
Model (Model): TD04
4035393, 49189-00501, 49189-01350, 49189-01360, 49189-01365, 49189-01400, 49189-01401, 49189-01410, 49189-01420, 49189-01430, 49189-01435, 49189-01800, 49189-01810, 49189-01820, 49189-01830, 49189-02350, 49189-02911, 49189-02912, 49189-02913, 504137713, 504340177, 49189-02914, 504092197, 504137713, 504340177, 49189-02950, 0375L8, 0375P9, 49189-02951, 504110697, 504304178, 49189-05000, 49189-05111, 49189-05200, 49189-05201, 49189-05202, 49189-08515
Data updated: 2023-11-09 15:16:38
