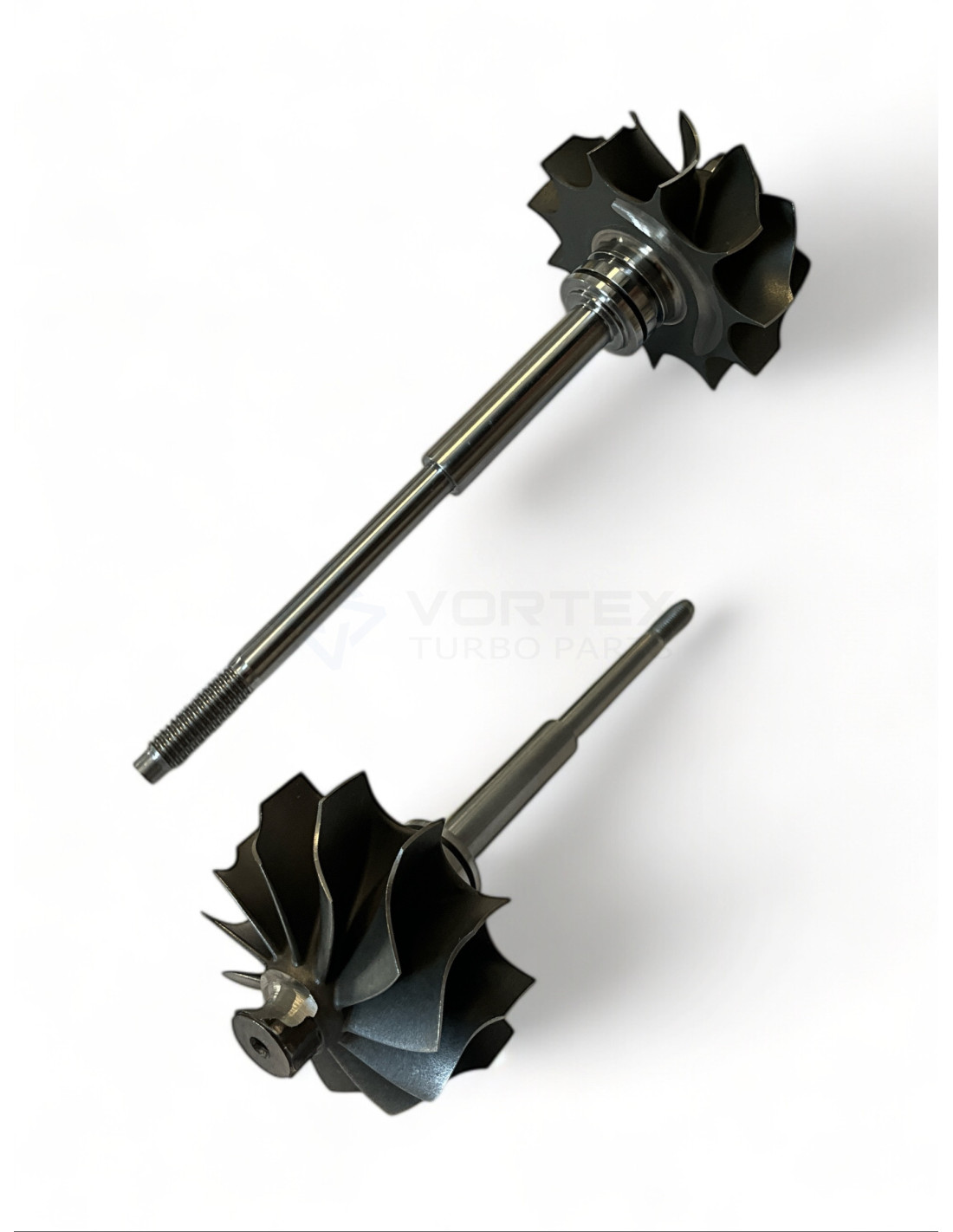

Shaft and wheel SW-M014
Shaft and wheel SW-M014

Shaft and wheel SW-M014

SW-M014
New
In Stock (30 Items)
€33.03
Tax included

Shaft and wheel SW-M014 for turbos 49177-03180, 49177-03181, 49177-03182, 49177-03183, 49177-03184, 49177-03190, 49177-03191, 49177-03192, 49177-03193, 49177-03200.



SW-M014 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-M014

SW-M014 - Compatibility table

Shaft and wheel SW-M014 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
MitsubishiTD0449177-03180--
MitsubishiTD0449177-03181--
MitsubishiTD0449177-03182--
MitsubishiTD0449177-03183--
MitsubishiTD0449177-03184--
MitsubishiTD04L49177-03190--
MitsubishiTD0449177-03191--
MitsubishiTD0449177-03192--
MitsubishiTD0449177-03193--
MitsubishiTD0449177-03200--
MitsubishiTD0449177-03201--
MitsubishiTD0449177-03202--
MitsubishiTD0449177-03203--
MitsubishiTD0449177-03230--
MitsubishiTD0449177-03231--
MitsubishiTD0449177-03232--
MitsubishiTD0449177-03240--
MitsubishiTD0449177-03241--
MitsubishiTD0449177-03242--
MitsubishiTD0449177-03243--
MitsubishiTD0449177-03250--
MitsubishiTD0449177-03251--
MitsubishiTD0449177-03252--
MitsubishiTD0449177-03253--
MitsubishiTD0449177-03254--
MitsubishiTD0449377-00500--
MitsubishiTD0449377-00510--
MitsubishiTD04L49377-06351--
MitsubishiTD0449377-07313--
MitsubishiTD0449377-07343--
MitsubishiTD04L-413TBS49377-07401--
MitsubishiTD04L4-13TBS-VG49377-07403076145701B, 076145701E, 076145701F, 076145701H, 076145701L, 076145702A
MitsubishiTD04L-413TBS49377-07404--
MitsubishiTD04L-413TBS49377-07405--
MitsubishiTD04L-413TBS49377-07440076145701B, 076145701E, 076145701F, 076145701H, 076145701L, 076145702A
MitsubishiTD04L449377-07510076145701S, 076145702D
MitsubishiTD04L449377-07511076145701S, 076145702D
MitsubishiTD04L449377-07515076145701S, 076145702D
MitsubishiTD04HL49377-07830--
MitsubishiTD0449377-07940--
MitsubishiTD04L449477-01000--
MitsubishiTD04L449477-01002--
MitsubishiTD04L449477-01003--
MitsubishiTD04L449477-01012--
MitsubishiTD04L449477-01013--
MitsubishiTD04L449477-01100--
MitsubishiTD04L449477-01114--
MitsubishiTD04L-11TK3s-VG49477-01200LR022358
MitsubishiTD04L-11TK3s-VG49477-01202LR038309
MitsubishiTD04L-11TK3s-VG49477-01203LR038322
MitsubishiTD04L-11TK3s-VG49477-01204LR049592

SW-M014 - Part Properties

Blades (Shaft blades count): 11

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 46.5

Exducer Diameter B (Exducer Diameter B): 41.0

Tip Height C (Tip Height C): 7.5

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.5

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.0

Shaft Length (mm) (Shaft Length (mm)): 93.0

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): TD04

49177-03180, 49177-03181, 49177-03182, 49177-03183, 49177-03184, 49177-03190, 49177-03191, 49177-03192, 49177-03193, 49177-03200, 49177-03201, 49177-03202, 49177-03203, 49177-03230, 49177-03231, 49177-03232, 49177-03240, 49177-03241, 49177-03242, 49177-03243, 49177-03250, 49177-03251, 49177-03252, 49177-03253, 49177-03254, 49377-00500, 49377-00510, 49377-06351, 49377-07313, 49377-07343, 49377-07401, 076145701B, 076145701E, 076145701F, 076145701H, 076145701L, 076145702A, 49377-07403, 49377-07404, 49377-07405, 076145701B, 076145701E, 076145701F, 076145701H, 076145701L, 076145702A, 49377-07440, 076145701S, 076145702D, 49377-07510, 076145701S, 076145702D, 49377-07511, 076145701S, 076145702D, 49377-07515, 49377-07830, 49377-07940, 49477-01000, 49477-01002, 49477-01003, 49477-01012, 49477-01013, 49477-01100, 49477-01114, 49477-01200, LR022358, 49477-01202, LR038309, 49477-01203, LR038322, 49477-01204, LR049592
