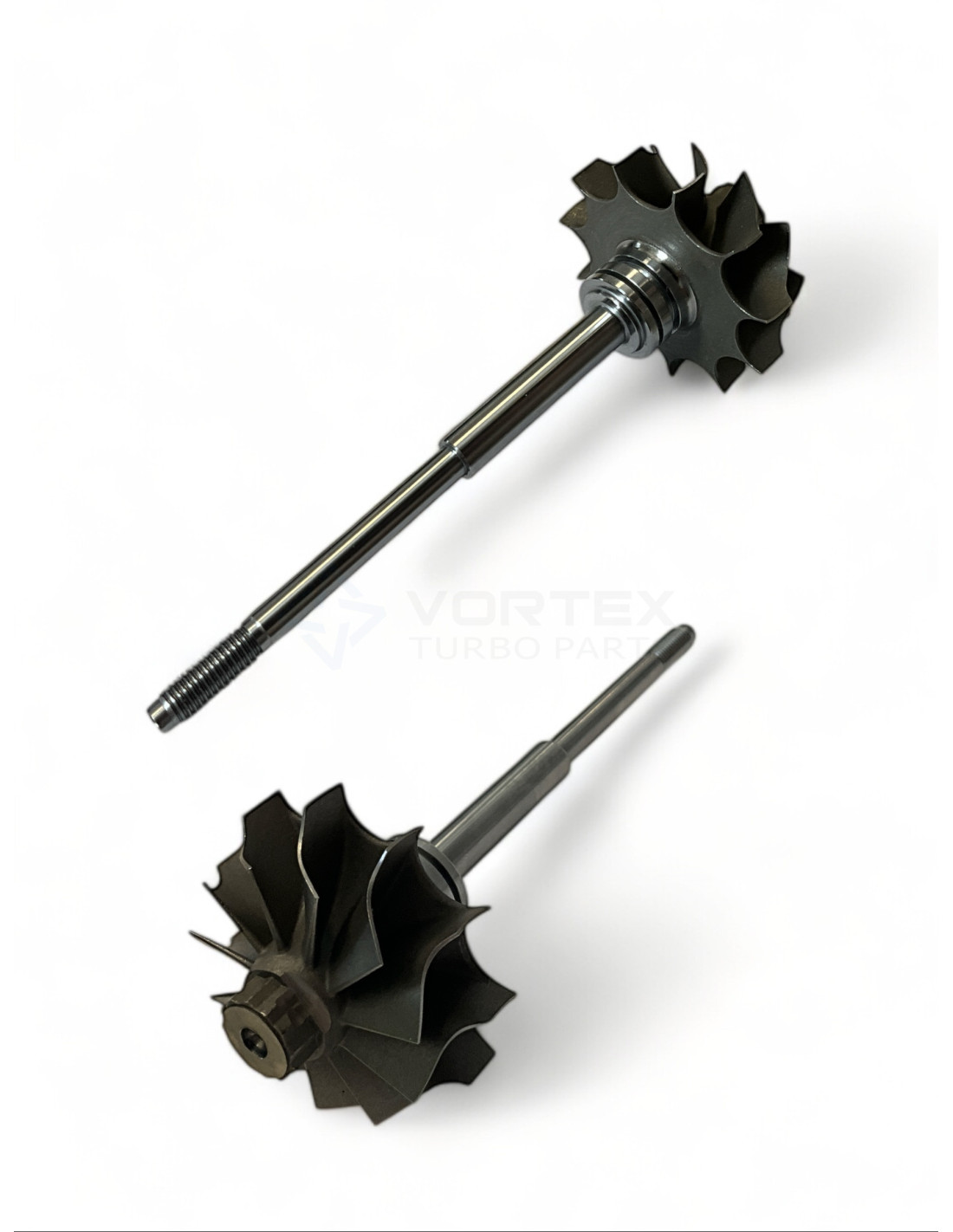

Shaft and wheel SW-M019
Shaft and wheel SW-M019

Shaft and wheel SW-M019

SW-M019
New
Last items in stock (4 Items)
€42.47
Tax included

49135-30100, SW-M019

Shaft and wheel SW-M019 for turbos 49135-00100, 49135-00101, 49135-00102, 49135-00110, 49135-00112, 49135-00120, 49135-02100, 49135-02110, 49135-02240, 49135-02300.



SW-M019 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-M019

SW-M019 - Alternative numbers

MHO (Mitsubishi original part number): 49135-30100

SW-M019 - Compatibility table

Shaft and wheel SW-M019 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
MitsubishiTF03549135-00100--
MitsubishiTF03549135-00101--
MitsubishiTF03549135-00102--
MitsubishiTF03549135-00110--
MitsubishiTF03549135-00112--
MitsubishiTF03549135-00120--
MitsubishiTF03549135-02100--
MitsubishiTF035HM-12T49135-02110--
MitsubishiTF03549135-02240--
MitsubishiTF03549135-02300--
MitsubishiTF03549135-02310--
MitsubishiTF03549135-02400--
MitsubishiTF03549135-02600--
MitsubishiTF03549135-02601--
MitsubishiTF035HM-12T49135-03101--
MitsubishiTF035HM-12T-449135-03130ME202578
MitsubishiTF03549135-04000--
MitsubishiTF03549135-04010--
MitsubishiTF03549135-04020--
MitsubishiTF03549135-04021--
MitsubishiTF03549135-04031--
MitsubishiTF03549135-04121--
MitsubishiTF03549135-04131--
MitsubishiTF03549135-04210--
MitsubishiTF03549135-04211--
MitsubishiTF03549135-04212--
MitsubishiTF03549135-04500--
MitsubishiTD035HM-14T-449135-04600--
MitsubishiTF03549135-04820--
MitsubishiTF03549135-04900--
MitsubishiTF035HM-13T-649135-0500099450703
MitsubishiTF035HM-13T-649135-0501099450704
MitsubishiTF035HM-13T-649135-0505099460981, 99466793
MitsubishiTF03549135-05121--
MitsubishiTF03549135-05122--
MitsubishiTF03549135-05123--
MitsubishiTF03549135-05130--
MitsubishiTF03549135-05131--
MitsubishiTF03549135-05132--
MitsubishiTF03549135-05133--
MitsubishiTF03549135-05134--
MitsubishiTF03549135-06000--
MitsubishiTF03549135-06010--
MitsubishiTF035HM-12T49135-06015--
MitsubishiTF035HM-12T49135-06017--
MitsubishiTF035HM-10T-449135-06020--
MitsubishiTF035HM-10T-449135-06025--
MitsubishiTF03549135-06030--
MitsubishiTF03549135-06035--
MitsubishiTF03549135-06037--
MitsubishiTF035HM-10T-449135-06100--
MitsubishiTF035HM-10T-449135-06105--
MitsubishiTF035HM-10T-449135-06107--
MitsubishiTF035HM-12T49135-06110--
MitsubishiTF03549135-06115--
MitsubishiTF035HM-12T49135-06117--

SW-M019 - Part Properties

Blades (Shaft blades count): 11

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 42.7

Exducer Diameter B (Exducer Diameter B): 36.0

Tip Height C (Tip Height C): 6.5

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.0

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.0

Shaft Length (mm) (Shaft Length (mm)): 93.0

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): TF035

49135-00100, 49135-00101, 49135-00102, 49135-00110, 49135-00112, 49135-00120, 49135-02100, 49135-02110, 49135-02240, 49135-02300, 49135-02310, 49135-02400, 49135-02600, 49135-02601, 49135-03101, 49135-03130, ME202578, 49135-04000, 49135-04010, 49135-04020, 49135-04021, 49135-04031, 49135-04121, 49135-04131, 49135-04210, 49135-04211, 49135-04212, 49135-04500, 49135-04600, 49135-04820, 49135-04900, 49135-05000, 99450703, 49135-05010, 99450704, 49135-05050, 99460981, 99466793, 49135-05121, 49135-05122, 49135-05123, 49135-05130, 49135-05131, 49135-05132, 49135-05133, 49135-05134, 49135-06000, 49135-06010, 49135-06015, 49135-06017, 49135-06020, 49135-06025, 49135-06030, 49135-06035, 49135-06037, 49135-06100, 49135-06105, 49135-06107, 49135-06110, 49135-06115, 49135-06117
