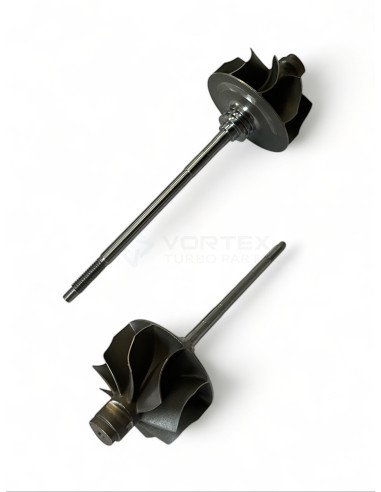

Shaft and wheel SW-G094
SW-G094
New
In Stock
(8 Items)
€44.04
Tax included
Shaft and wheel SW-G094 for turbos 802774-0002, 802774-0004, 802774-0005, 802774-0006, 802774-0007, 802774-0008, 816841-0002, 816841-0003, 826830-0001, 826830-0003.
SW-G094 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-G094
SW-G094 - Compatibility table
| Shaft and wheel SW-G094 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Garrett | GTB2060V | 802774-0002 | 6420901086, 6420901386, 6420901686, A6420901186 |
| Garrett | GTB2060V | 802774-0004 | 6420901086, 6420901386, 6420901686, A6420901186 |
| Garrett | GTB2060V | 802774-0005 | 6420901086, 6420901386, 6420901686, A6420901686 |
| Garrett | GTB2060V | 802774-0006 | 6420901686, A6420901686 |
| Garrett | GTB2060V | 802774-0007 | 6420901686, A6420901686 |
| Garrett | GTB2060V | 802774-0008 | 6420901686, A6420901686 |
| Garrett | GTB2056VKLR | 816841-0002 | -- |
| Garrett | GTB2056VKLR | 816841-0003 | -- |
| Garrett | 826830-0001 | -- | |
| Garrett | 826830-0003 | -- | |
| Garrett | 826830-0004 | -- | |
| Garrett | GTB2060VR | 829440-0001 | -- |
| Garrett | GTB2060VR | 829440-0002 | -- |
| Garrett | GTB2060VR | 829440-0003 | -- |
| Garrett | GTB2060VR | 829440-0004 | -- |
SW-G094 - Part Properties
Blades (Shaft blades count): 9
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 47.0
Exducer Diameter B (Exducer Diameter B): 43.0
Tip Height C (Tip Height C): 10.2
Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1
Shaft Length (mm) (Shaft Length (mm)): 100.0
Back (Back): Closed
Piston Ring Type (Piston Ring Type): Twin
Model (Model): GT15-25 BB
6420901086, 6420901386, 6420901686, 802774-0002, A6420901186, 6420901086, 6420901386, 6420901686, 802774-0004, A6420901186, 6420901086, 6420901386, 6420901686, 802774-0005, A6420901686, 6420901686, 802774-0006, A6420901686, 6420901686, 802774-0007, A6420901686, 6420901686, 802774-0008, A6420901686, 816841-0002, 816841-0003, 826830-0001, 826830-0003, 826830-0004, 829440-0001, 829440-0002, 829440-0003, 829440-0004
Data updated: 2024-10-21 17:32:29
