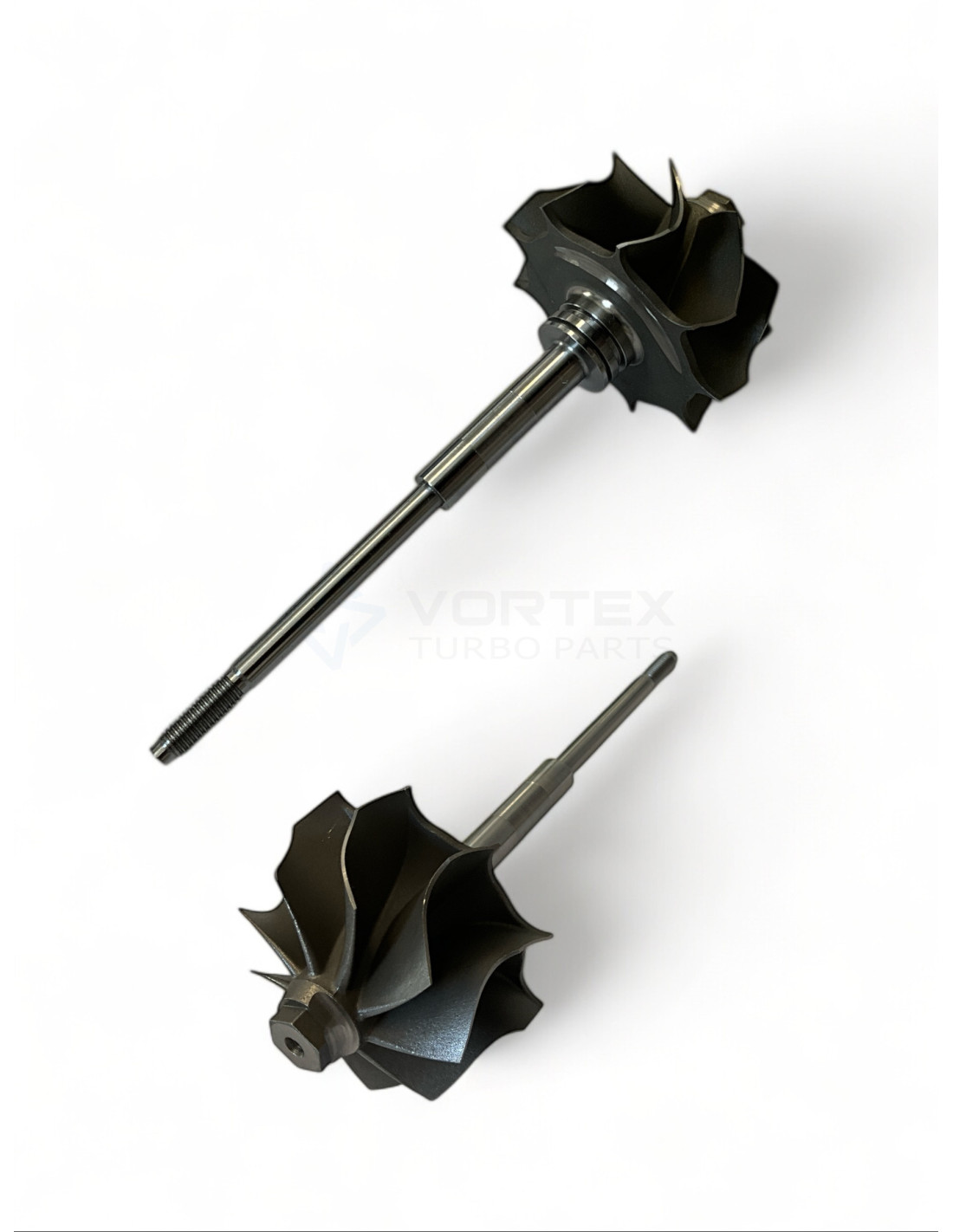

Shaft and wheel SW-G097
Shaft and wheel SW-G097

Shaft and wheel SW-G097

SW-G097
New
In Stock (13 Items)
€33.03
Tax included

1100-020-236B, 1102-022-435, 434882-0005, 434882-0010

Shaft and wheel SW-G097 for turbos 704432-0002, 704442-0001, 704567-0001, 709837-0001, 709837-0002, 709837-0003, 709838-0001, 709838-0003, 709838-0004, 709838-0005.

See below for mo



SW-G097 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G097

SW-G097 - Alternative numbers

Jrone (Jrone): 1100-020-236B

Melett (Melett): 1102-022-435

GHO (Garrett original part number): 434882-0005

GHO (Garrett original part number): 434882-0010

KD (KODE): TW-024

SW-G097 - Compatibility table

Shaft and wheel SW-G097 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
Garrett704432-0002--
Garrett704442-0001--
Garrett704567-0001--
GarrettGTA2256V709837-0001A6120960299
GarrettGTA2256V709837-0002A6120960299
GarrettGTA2256V709837-0003A6120960299
GarrettGTA2256V709838-00016120960399
GarrettGTA2256V709838-00036120960399
GarrettGTA2256V709838-00046120960399
GarrettGTA2256V709838-00056120960399
GarrettGTA2256V709838-00066120960399
GarrettGT2256V711009-0001A6120960499
GarrettGT2256V711009-0002A6120960499
GarrettGT2256V712541-00017785838F
GarrettGT2256V712541-00027785839F
GarrettGT2256V712541-00037785840F
GarrettGT2256V712541-00047785838G04
GarrettGT2256V712541-00057785839G04, LR018264, LR06705
GarrettGT2256V712541-00067785840G04
GarrettGTA2256V712541-00077785839G04, LR018264, LR06705
GarrettGT2256V715568-0001--
GarrettGT2256V715568-0002--
GarrettGTA2256V715910-0001A6120960599
GarrettGTA2256V715910-0002A6120960599
GarrettGTA2256V715910-0003A6120960599
GarrettGTA2256V721020-0001--
GarrettGT2556V(S2)721204-0001--
GarrettGT1852V727463-0001--
GarrettGT1852V727463-0002--
GarrettGT1852V727463-0003--

SW-G097 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 50.0

Exducer Diameter B (Exducer Diameter B): 42.7

Tip Height C (Tip Height C): 8.2

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 99.0

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): GT15-25

Data updated: 2023-01-17 16:54:30
