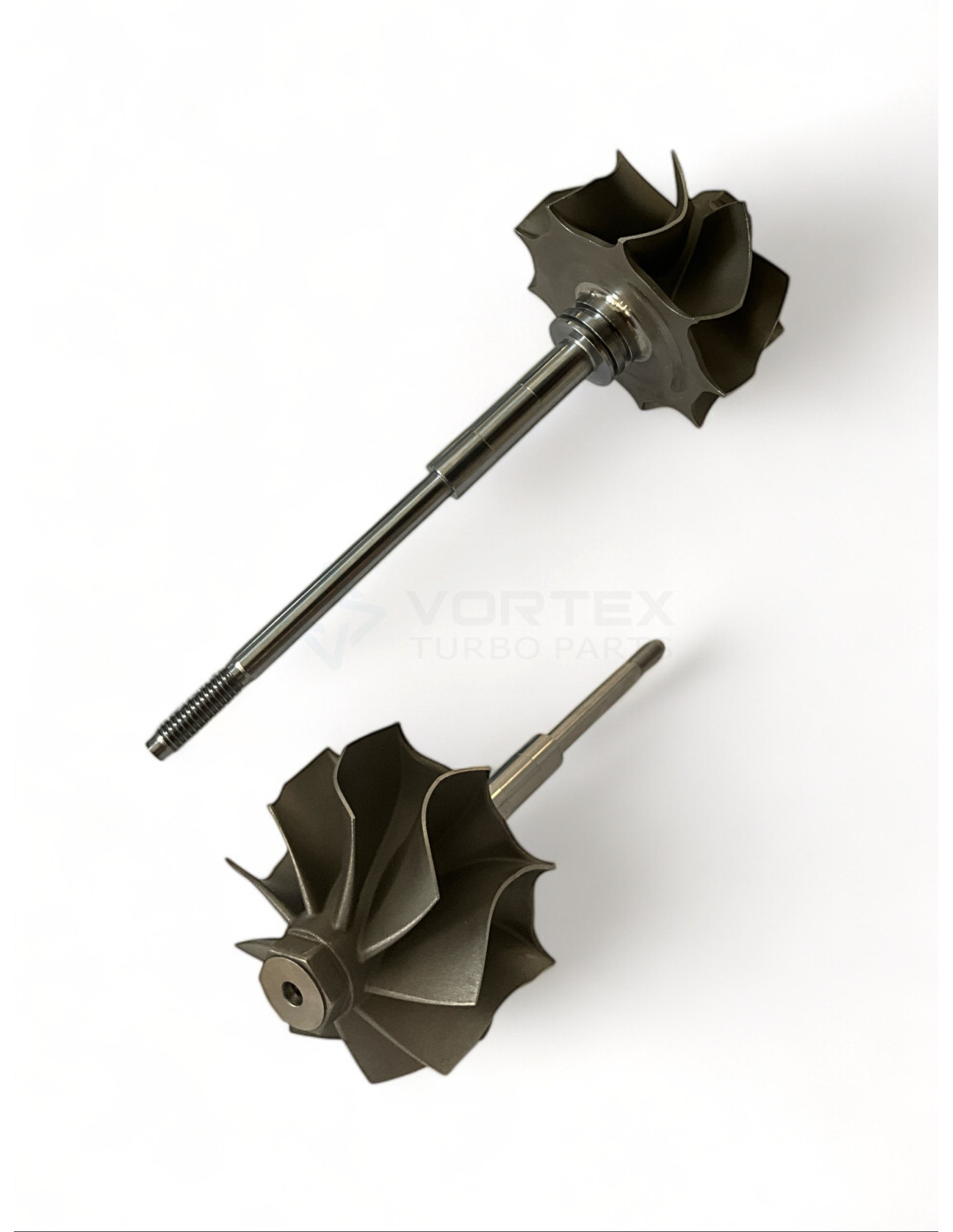

Shaft and wheel SW-G116
Shaft and wheel SW-G116

Shaft and wheel SW-G116

SW-G116
New
Last items in stock (4 Items)
€36.18
Tax included

434717-0028, SW-G116

Shaft and wheel SW-G116 for turbos 454191-0003, 454191-0004, 454191-0005, 454191-0006, 454191-0007, 709841-0001, 709841-0002, 709841-0003, 711017-0001, 711017-0002.



SW-G116 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G116

SW-G116 - Alternative numbers

GHO (Garrett original part number): 434717-0028

SW-G116 - Compatibility table

Shaft and wheel SW-G116 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT2556V454191-000311652248906, 11652248907, 2247691F
GarrettGT2556V454191-000422489079
GarrettGT2556V454191-000522489069
GarrettGT2556V454191-000611652248906, 11652248907, 2247691G
GarrettGT2556V454191-00072248906G
GarrettGTA2359V709841-0001A6130960199
GarrettGTA2359V709841-0002A6130960199
GarrettGTA2359V709841-0003A6130960199
GarrettGT2359V711017-0001A6130960299
GarrettGT2359V711017-0002A6130960499
GarrettGT2359V711017-0003A6130960499
GarrettGT2359V711017-0004A6130960499
GarrettGT2359V734899-0001A6480960099
GarrettGT2359V734899-0002A6480960099
GarrettGTA2359VK743436-00012205586-0/00, 6480960099, 6480960299, A6480960299
GarrettGT2359743436-00032205586-0/00, 6480960099, 6480960299, A6480960299

SW-G116 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 51.4

Exducer Diameter B (Exducer Diameter B): 47.0

Tip Height C (Tip Height C): 9.5

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 99.0

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): GT15-25

11652248906, 11652248907, 2247691F, 454191-0003, 22489079, 454191-0004, 22489069, 454191-0005, 11652248906, 11652248907, 2247691G, 454191-0006, 2248906G, 454191-0007, 709841-0001, A6130960199, 709841-0002, A6130960199, 709841-0003, A6130960199, 711017-0001, A6130960299, 711017-0002, A6130960499, 711017-0003, A6130960499, 711017-0004, A6130960499, 734899-0001, A6480960099, 734899-0002, A6480960099, 2205586-0/00, 6480960099, 6480960299, 743436-0001, A6480960299, 2205586-0/00, 6480960099, 6480960299, 743436-0003, A6480960299

Data updated: 2023-11-09 14:36:40
