Shaft and wheel SW-G107
Shaft and wheel SW-G107

Shaft and wheel SW-G107

SW-G107
New
In Stock (7 Items)
€42.47
Tax included

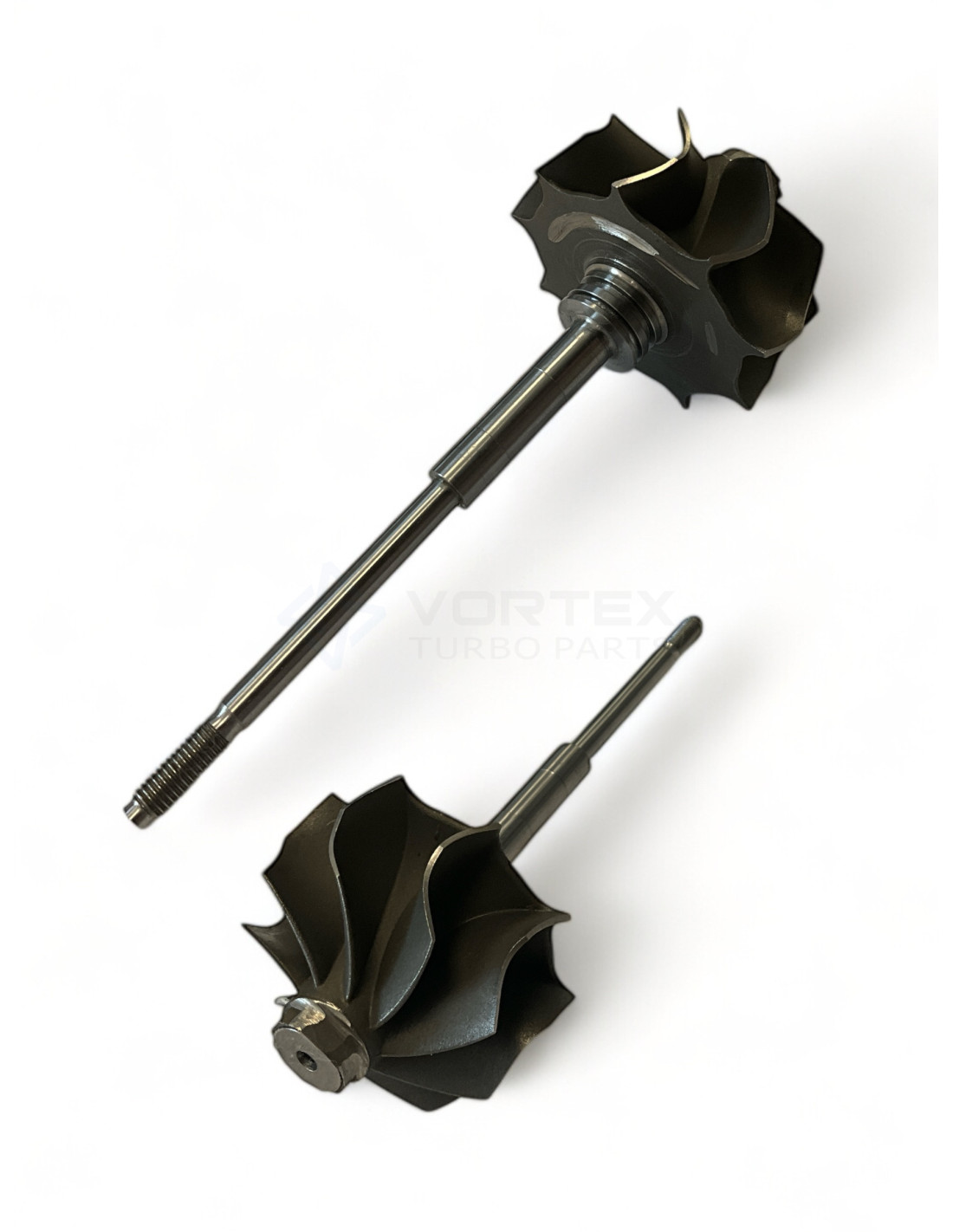

Shaft and wheel SW-G107 for turbos 750001-0002, 802012-0001.



SW-G107 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G107

SW-G107 - Compatibility table

Shaft and wheel SW-G107 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT23750001-0002--
GarrettGT2359V802012-0001--

SW-G107 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 51.2

Exducer Diameter B (Exducer Diameter B): 47.0

Tip Height C (Tip Height C): 9.2

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 99.0

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): GT15-25

750001-0002, 802012-0001

Data updated: 2023-11-09 14:34:58
