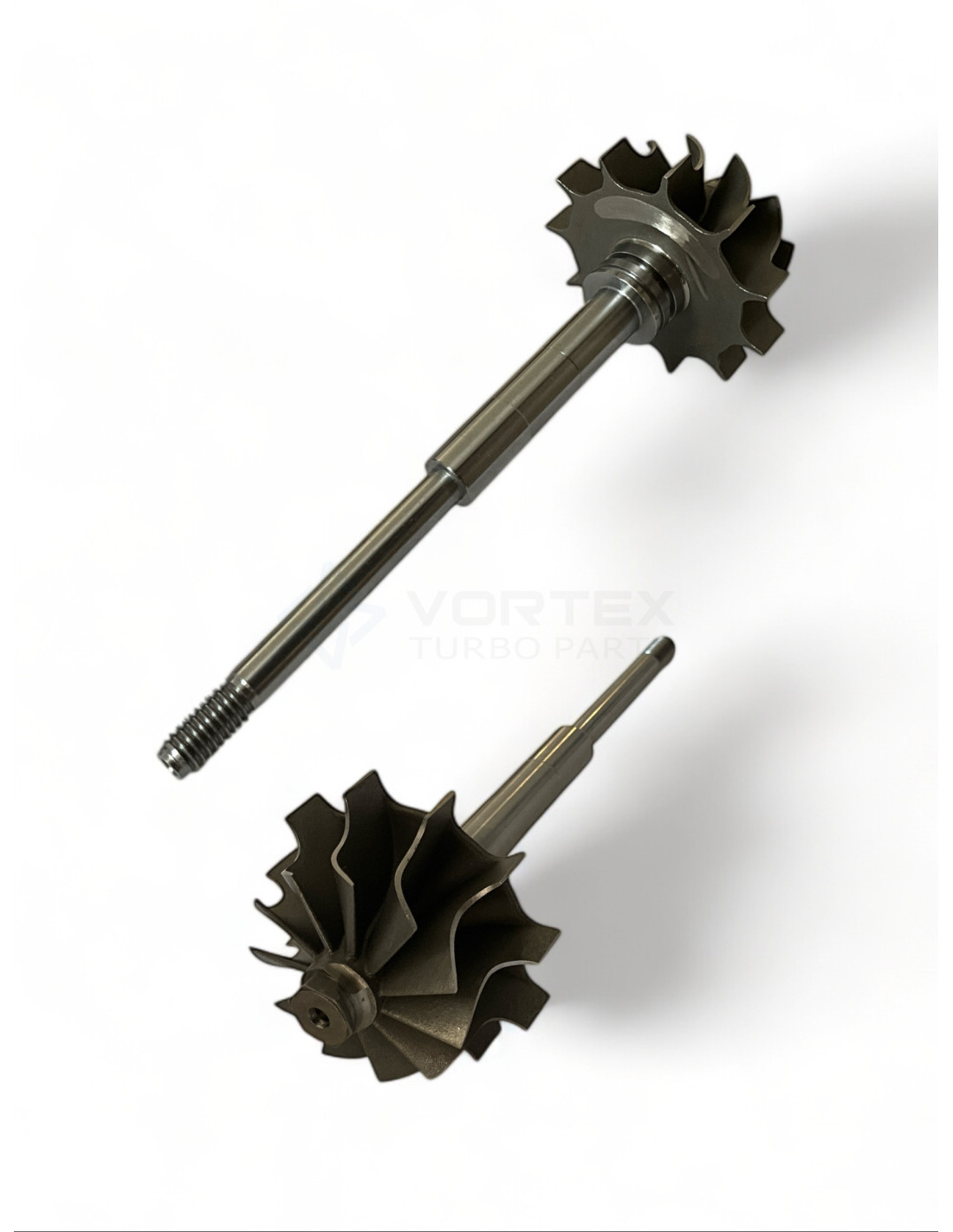

Shaft and wheel SW-G126
Shaft and wheel SW-G126

Shaft and wheel SW-G126

SW-G126
New
Last items in stock (2 Items)
€42.47
Tax included

435243-0001, 435243-0002, 435243-0004, 435737-0001

Shaft and wheel SW-G126 for turbos 452005-0001, 452014-0003, 452014-0005, 452014-0006, 452055-0004, 452055-0008, 452063-0001, 452063-0002, 452063-0003, 454027-0002.



SW-G126 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G126

SW-G126 - Alternative numbers

GHO (Garrett original part number): 435243-0001

GHO (Garrett original part number): 435243-0002

GHO (Garrett original part number): 435243-0004

GHO (Garrett original part number): 435737-0001

GHO (Garrett original part number): 435737-0006

GHO (Garrett original part number): 435737-0029

SW-G126 - Compatibility table

Shaft and wheel SW-G126 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettTB022452005-0001--
GarrettT2452014-0003--
GarrettT2452014-0005--
GarrettT2452014-0006--
GarrettT250-04452055-0004ERR4893, PMF100410
GarrettT250-04452055-0008PMF100510
GarrettTB027452063-0001--
GarrettTB027452063-0002--
GarrettTB027452063-0003--
GarrettTB0265454027-0002--
GarrettTB0267454052-000177521310
GarrettTB0267454052-000277521310
GarrettTB0269454055-000177403100
GarrettTB0269454055-00021307679080
GarrettTB027454060-0001--
GarrettTB027454076-0001--
GarrettTB027454076-0002--
GarrettTB0279454076-0003--
GarrettGT25C454086-0001--
GarrettTB0293454112-00037700868124, 8111321, 8602092, M855994
GarrettTB0293454112-00047700868124, 8111321, 8602092
GarrettTB028454131-0002--
GarrettTB02454131-0003--
GarrettTB027454132-0001--
GarrettTB028454132-0002--
GarrettTB02454204-0001--
GarrettTB02454204-0002--
GarrettTB0237465137-0001--
GarrettTB0237465137-0002--
GarrettTB0242465171-0002--
GarrettTB024465175-0001--
GarrettTB0250465187-0002--
GarrettTB023465265-0001--
GarrettTB023465265-0002--
GarrettTB026465407-0001--
GarrettTB026465407-0002--
GarrettTB0253465567-0001464309
GarrettTB0253465567-0002464309
GarrettTB020466028-0001--
GarrettTB0213466450-0001--
GarrettTB02466534-0001--
GarrettTB02466534-0002--
GarrettTB02466534-0003--
GarrettTB02466534-0004--
GarrettTB02466534-0005--
GarrettTB022466856-0001--
GarrettTB022466856-0002--
GarrettTB022466856-0003--
GarrettTB022466856-0004--
GarrettTB022466884-0001--
GarrettTB022466884-0002--

SW-G126 - Part Properties

Blades (Shaft blades count): 11

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 47.0

Exducer Diameter B (Exducer Diameter B): 35.6

Tip Height C (Tip Height C): 7.3

Journal Bearing Diameter D (Journal Bearing Diameter D): 9.2

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 6.0

Shaft Length (mm) (Shaft Length (mm)): 102.0

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): T2

452005-0001, 452014-0003, 452014-0005, 452014-0006, 452055-0004, ERR4893, PMF100410, 452055-0008, PMF100510, 452063-0001, 452063-0002, 452063-0003, 454027-0002, 454052-0001, 77521310, 454052-0002, 77521310, 454055-0001, 77403100, 1307679080, 454055-0002, 454060-0001, 454076-0001, 454076-0002, 454076-0003, 454086-0001, 454112-0003, 7700868124, 8111321, 8602092, M855994, 454112-0004, 7700868124, 8111321, 8602092, 454131-0002, 454131-0003, 454132-0001, 454132-0002, 454204-0001, 454204-0002, 465137-0001, 465137-0002, 465171-0002, 465175-0001, 465187-0002, 465265-0001, 465265-0002, 465407-0001, 465407-0002, 464309, 465567-0001, 464309, 465567-0002, 466028-0001, 466450-0001, 466534-0001, 466534-0002, 466534-0003, 466534-0004, 466534-0005, 466856-0001, 466856-0002, 466856-0003, 466856-0004, 466884-0001, 466884-0002

Data updated: 2024-10-03 17:31:45
