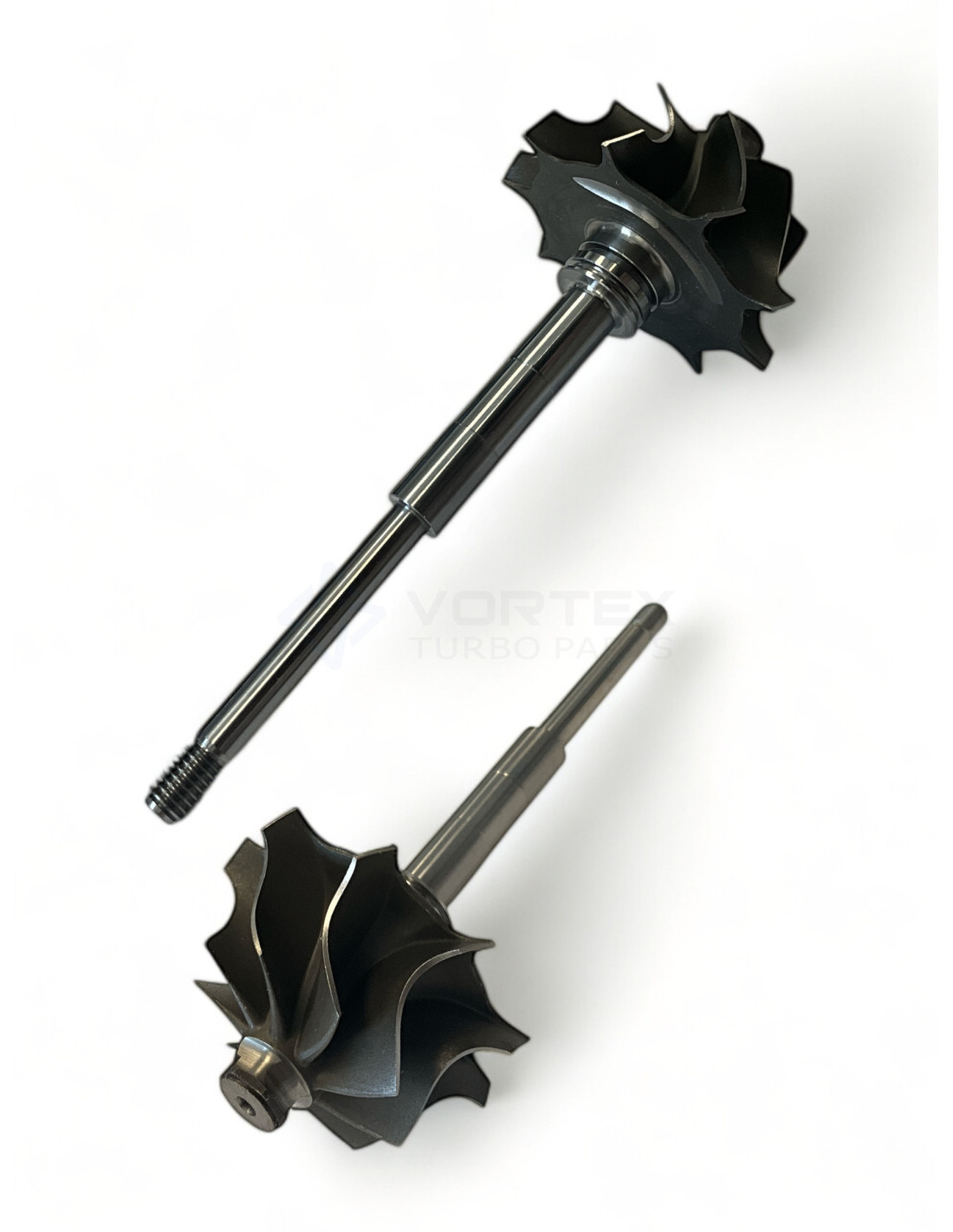

Shaft and wheel SW-G134
1100-016-016, 448941-0007, SW-G134, TW-337
Shaft and wheel SW-G134 for turbos 454193-0001, 454193-0002, 454193-0003, 454193-0004, 454203-0001, 454207-0001, 454207-0002.
See below for more info.
SW-G134 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-G134
SW-G134 - Alternative numbers
Jrone (Jrone): 1100-016-016
GHO (Garrett original part number): 448941-0007
KD (KODE): TW-337
SW-G134 - Compatibility table
Shaft and wheel SW-G134 - Compatible turbochargers | |||
---|---|---|---|
TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
Garrett | GT2538C | 454193-0001 | -- |
Garrett | GT2538C | 454193-0002 | -- |
Garrett | GT2538C | 454193-0003 | -- |
Garrett | GT2538C | 454193-0004 | -- |
Garrett | GT25 | 454203-0001 | -- |
Garrett | GT25C | 454207-0001 | 6020900880, 6020901380, 6020960699, 6020960899, A6020900880, A6020901380, A6020960699, A6020960899 |
Garrett | GT25C | 454207-0002 | 6020900880, 6020901380, 6020960699, 6020960899, A6020900880, A6020901380, A6020960699, A6020960899 |
SW-G134 - Part Properties
Blades (Shaft blades count): 9
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 52.2
Exducer Diameter B (Exducer Diameter B): 38.3
Tip Height C (Tip Height C): 6.0
Journal Bearing Diameter D (Journal Bearing Diameter D): 9.2
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 6.0
Shaft Length (mm) (Shaft Length (mm)): 102.0
Back (Back): Open
Piston Ring Type (Piston Ring Type): Single
Model (Model): T25
Data updated: 2022-12-19 18:59:00
