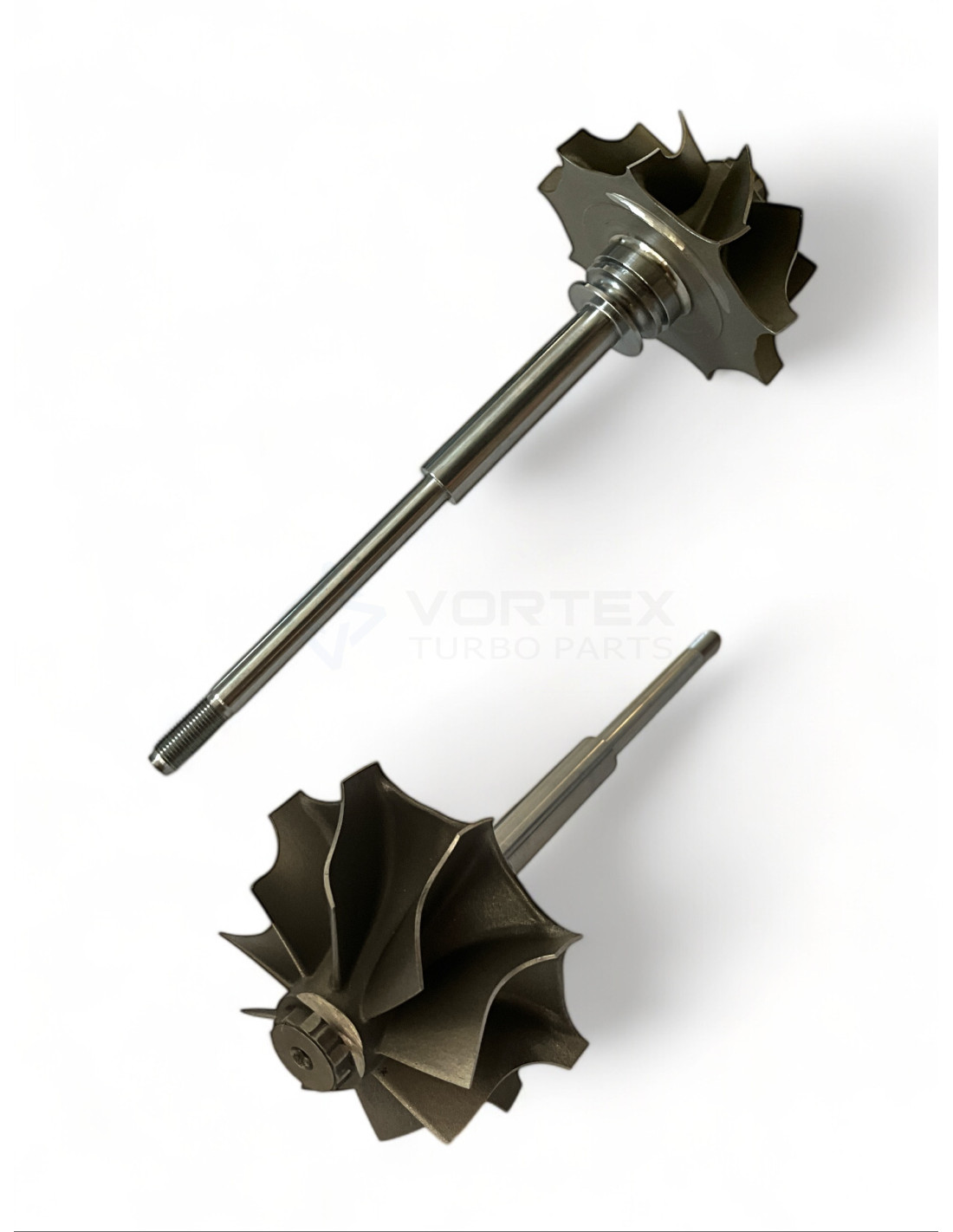

Shaft and wheel SW-I029
SW-I029
New
Out-of-Stock
€40.90
Tax included
Shaft and wheel SW-I029 for turbos VB13, VB15, VB16.
See below for more info.
SW-I029 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-I029
SW-I029 - Compatibility table
| Shaft and wheel SW-I029 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| IHI | RHF5V | VB13 | 17201-0R020, 17201-0R021, 17201-0R022, 17201-440FP, 172010R020, 172010R021, 172010R022, 17201440FP |
| IHI | RHF5 | VB15 | 17201-26090, 1720126090 |
| IHI | RHF5 | VB16 | 17201-0R010, 17201-0R011, 17201-26031, 172010R010, 172010R011, 1720126031 |
SW-I029 - Part Properties
Blades (Shaft blades count): 9
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 53.0
Exducer Diameter B (Exducer Diameter B): 40.0
Tip Height C (Tip Height C): 6.0
Journal Bearing Diameter D (Journal Bearing Diameter D): 8.0
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1
Shaft Length (mm) (Shaft Length (mm)): 99.0
Back (Back): Open
Piston Ring Type (Piston Ring Type): Single
Model (Model): RHF5
Data updated: 2022-12-22 16:06:00
