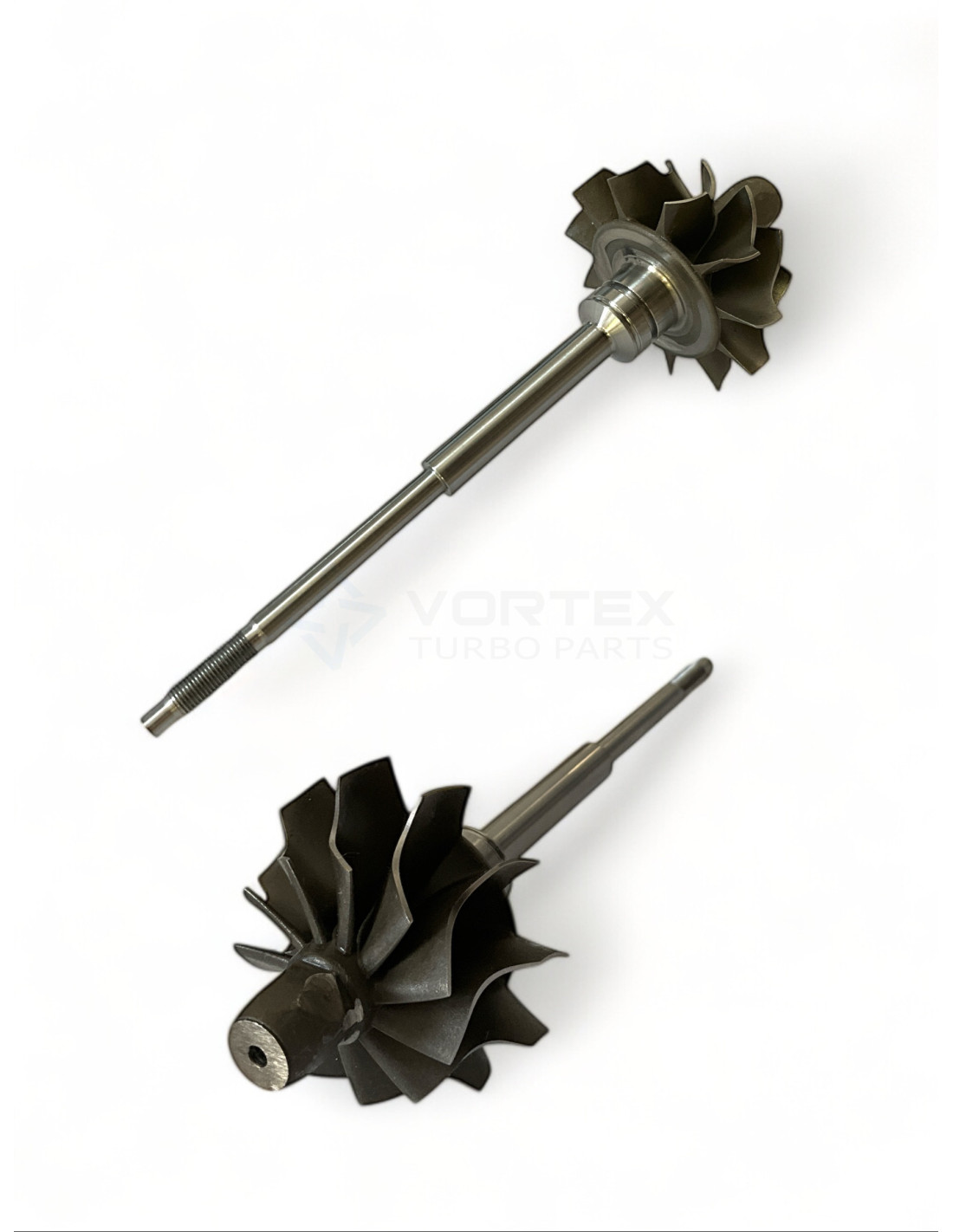

Shaft and wheel SW-K004
Shaft and wheel SW-K004

Shaft and wheel SW-K004

SW-K004
New
In Stock (15 Items)
€33.03
Tax included

5303 120 5015, SW-K004

Shaft and wheel SW-K004 for turbos 53039700008, 53039700009, 53039700014, 53039700018, 53039700019, 53039700023, 53039700024, 53039700038, 53039700047, 53039700050.



SW-K004 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-K004

SW-K004 - Alternative numbers

BWO (BorgWarner original part number): 5303 120 5015

SW-K004 - Compatibility table

Shaft and wheel SW-K004 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
BorgWarnerK03-1870EAA4.82KCAAD530397000082M59082
BorgWarnerK03-1875EXE4.81KCAXD530397000090375C8, 9633382180
BorgWarnerK03-1873CXA4.81KCAXD530397000147700108948, 7701471634, 7711134065, 8200107826
BorgWarnerK03-1875EXE4.81KCAXD530397000180375A6, 9632427880
BorgWarnerK03-1873CAB3.81KCAAD530397000196680960199, 6680960299, 6680960399
BorgWarnerK03-1875EXE4.81KCAXD530397000239632406680
BorgWarnerK03-1875EXE4.81KCAXD530397000240375C9, 0375C9, 0375F5, 0375F5, 9632124680
BorgWarnerK03-1873CXA4.81KCAXD530397000387700115414
BorgWarnerK03-1873CXA4.81KCAXD530397000477700315460, 7701472751, 8200122302
BorgWarnerK03-1875EXE4.81KCAXD530397000500375G3, 9640168280
BorgWarnerK03-1875EXE4.81KCAXD5303970005113900-67G00, ZY34027010
BorgWarnerK03-1875EXE4.81KCAXD530397000569640873380
BorgWarnerK03-1875EXE4.81KCAXD530397000579640355080
BorgWarnerK03-1873CAB3.81KCAAF530397000606680960499
BorgWarnerK03-1875EXE4.81KCAXD530397000619636473280
BorgWarnerK03-1875EXE4.81KCAXD53039700063ZY34027308

SW-K004 - Part Properties

Blades (Shaft blades count): 11

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 45.0

Exducer Diameter B (Exducer Diameter B): 33.5

Tip Height C (Tip Height C): 6.3

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.0

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.6

Shaft Length (mm) (Shaft Length (mm)): 98.0

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): K03/04

53039700063, 53039700061, 53039700060, 53039700057, 53039700056, 53039700051, 53039700050, 53039700047, 53039700038, 53039700024, 0375C9,0375F5, 53039700023, 53039700019, 53039700018, 53039700014, 53039700009, 53039700008, 2M59082, 5303 970 0008, 0375C8, 5303 970 0009, 9633382180, 5303 970 0014, 7700108948, 7701471634, 7711134065, 8200107826, 0375A6, 5303 970 0018, 9632427880, 5303 970 0019, 6680960199, 6680960299, 6680960399, 5303 970 0023, 9632406680, 0375C9, 0375C9, 0375F5, 0375F5, 5303 970 0024, 9632124680, 5303 970 0038, 7700115414, 5303 970 0047, 7700315460, 7701472751, 8200122302, 0375G3, 5303 970 0050, 9640168280, 13900-67G00, 5303 970 0051, ZY34027010, 5303 970 0056, 9640873380, 5303 970 0057, 9640355080, 5303 970 0060, 6680960499, 5303 970 0061, 9636473280, 5303 970 0063, ZY34027308
