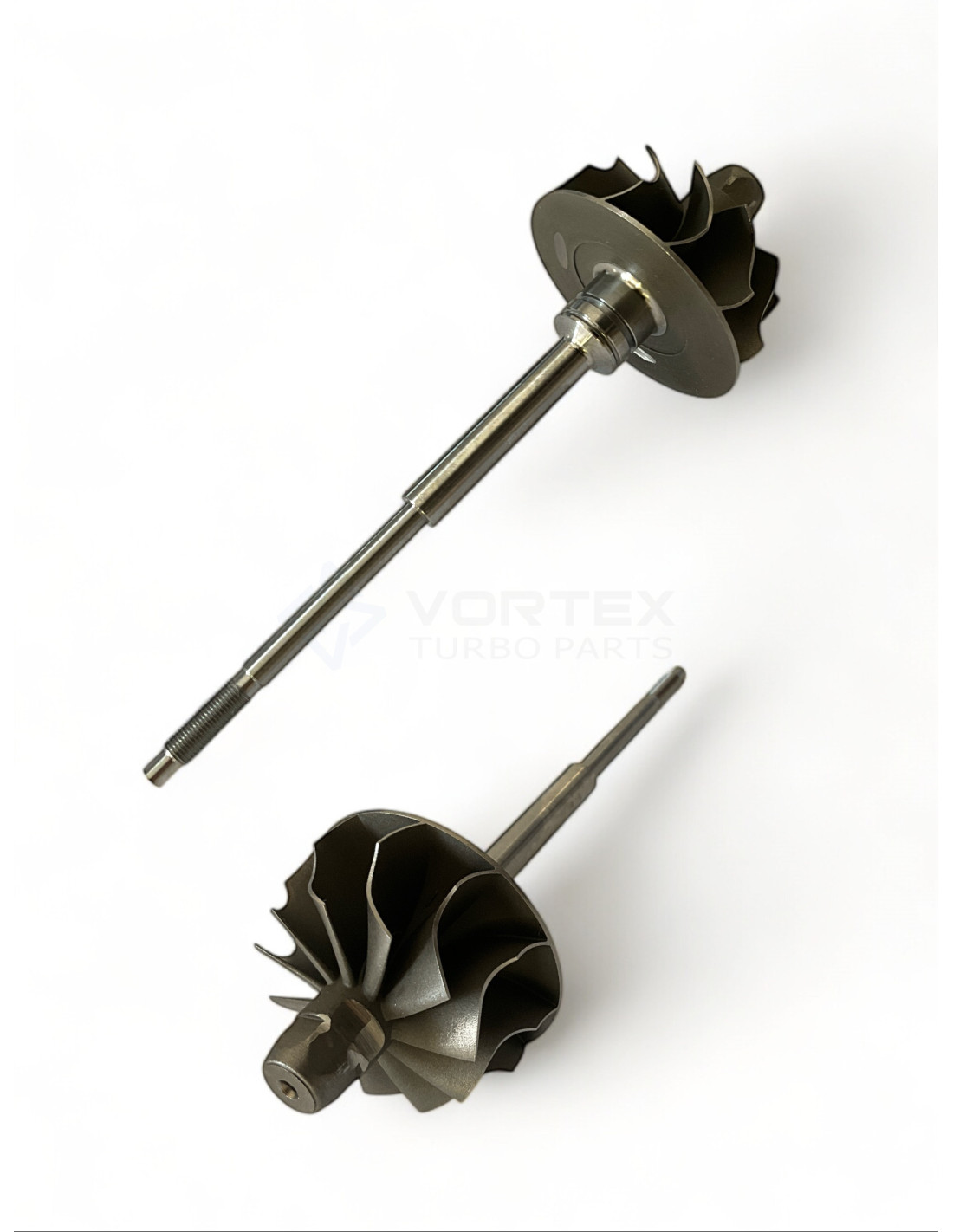

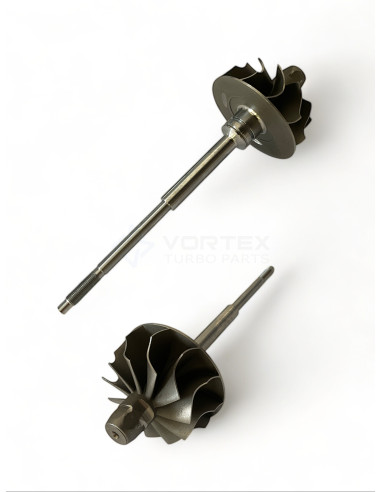

Shaft and wheel SW-K005
Shaft and wheel SW-K005

Shaft and wheel SW-K005

SW-K005
New
In Stock (16 Items)
€33.03
Tax included

5303 120 5060, SW-K005

Shaft and wheel SW-K005 for turbos 53039700099, 53039700104, 53039700110, 53039700120, 53039700121, 53039700135, 53039700142, 53039700149, 53039700150, 53039700151.



SW-K005 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-K005

SW-K005 - Alternative numbers

BWO (BorgWarner original part number): 5303 120 5060

SW-K005 - Compatibility table

Shaft and wheel SW-K005 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
BorgWarnerK03-2074DAB4.82KCAXM5303970009903C145701B, 03C145701G, 03C145701K
BorgWarnerK03-2068CCC304.92KXAXK53039700104V754667580-05
BorgWarnerK03-2074DCB5.82KCAXK5303970011055355617
BorgWarnerK03-2068CCC304.92KXAXX530397001200375L0, V754667580-05, V756494480-02
BorgWarnerK03-2068CCC304.92KXAXX530397001210375N7, V758078980-01
BorgWarnerK03-1874KAB4.82KCAXM53039700135--
BorgWarnerK035303970014203C145701K
BorgWarnerK03-2074KCA5.82KCAXM5303970014955224275, 55232225
BorgWarnerK03-2074DAB4.82KCAXM5303970015003C145701K, 03C145701Q
BorgWarnerK03-1874KAB4.82KCAXM5303970015103C145701S
BorgWarnerK03-2074DAB4.82KCAXM5303970016203C145701T
BorgWarnerK03-2074DCB5.82KCAXK5303970017455574478
BorgWarnerK03-2068CCC304.92KXAXX53039700179V760088380-01
BorgWarnerK03-2068CCC304.92KXAXX53039700217V762045580-01
BorgWarnerK03-2068CCC304.92KXAXX530397002439807682180
BorgWarnerK03-2074DAB4.82KCAXM5303970024803C145702P
BorgWarnerK03-1874KAB4.82KCAXM5303970024903C145702R
BorgWarnerK03-2068CCC304.92KXAXX530397004259809028780
BorgWarnerK03-2074DAB4.82KCAXM5303970045903C145703A
BorgWarnerK03-1874KAB4.82KCAXM5303970046003C145703B
BorgWarnerK03-2074DAB4.82KCAXM53039710162--

SW-K005 - Part Properties

Blades (Shaft blades count): 11

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 45.0

Exducer Diameter B (Exducer Diameter B): 37.5

Tip Height C (Tip Height C): 8.0

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.0

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.6

Shaft Length (mm) (Shaft Length (mm)): 98.0

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Single

Model (Model): K03/04

03C145701B, 03C145701G, 03C145701K, 53039700099, 53039700104, V754667580-05, 53039700110, 55355617, 0375L0, 53039700120, V754667580-05, V756494480-02, 0375N7, 53039700121, V758078980-01, 53039700135, 03C145701K, 53039700142, 53039700149, 55224275, 55232225, 03C145701K, 03C145701Q, 53039700150, 03C145701S, 53039700151, 03C145701T, 53039700162, 53039700174, 55574478, 53039700179, V760088380-01, 53039700217, V762045580-01, 53039700243, 9807682180, 03C145702P, 53039700248, 03C145702R, 53039700249, 53039700425, 9809028780, 03C145703A, 53039700459, 03C145703B, 53039700460, 53039710162
