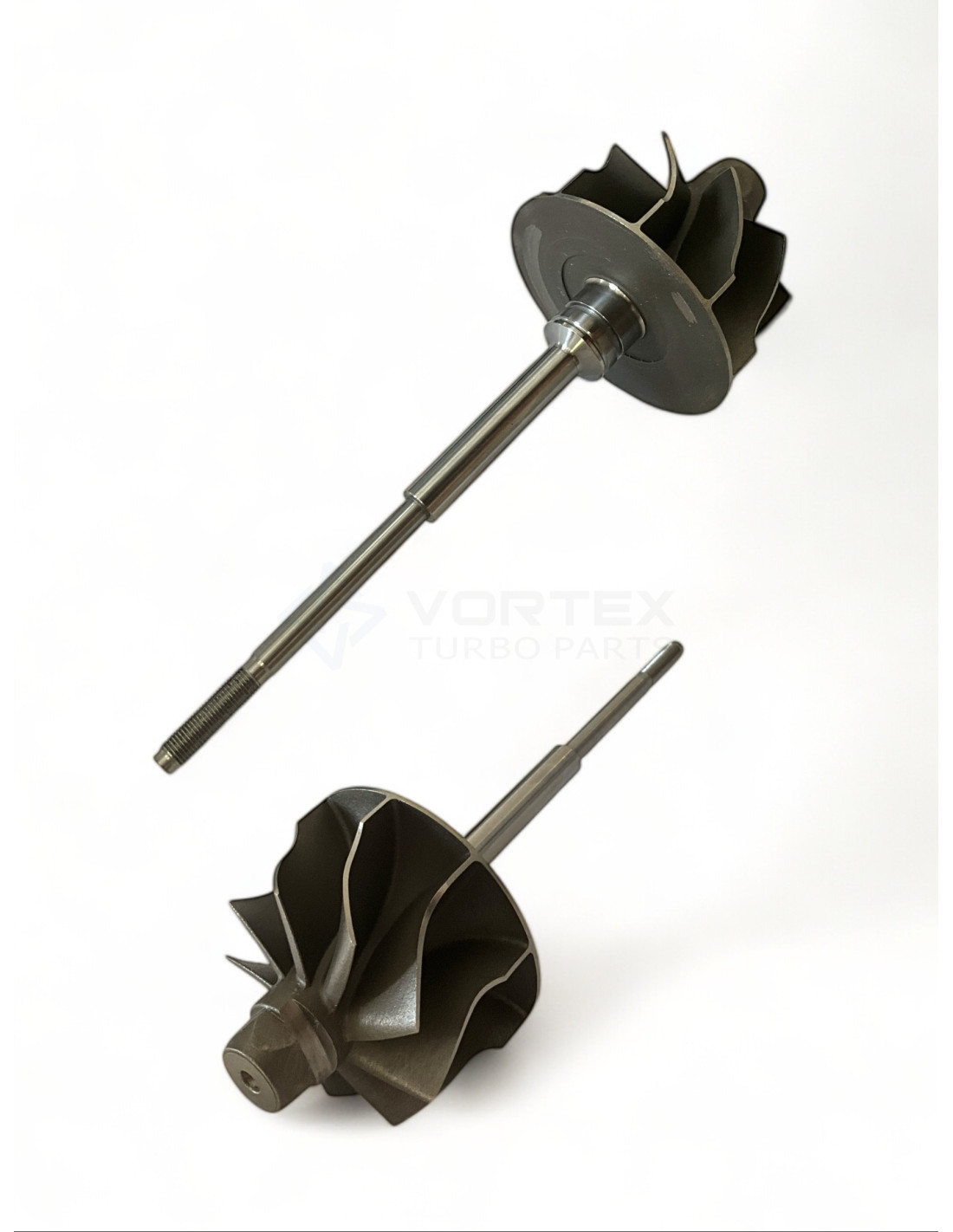

Shaft and wheel SW-K016
SW-K016
New
Please login to see prices and stock
Shaft and wheel SW-K016 for turbos 53049700035, 53049700043, 53049700045, 53049700050, 53049700054, 53049700062, 53049700066, 53049700070, 53049700101.
SW-K016 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-K016
SW-K016 - Compatibility table
| Shaft and wheel SW-K016 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| BorgWarner | BV50-2277DYB426.18BVAXC | 53049700035 | 059145702F, 059145702L |
| BorgWarner | BV50-2277DYB426.18BVAXC | 53049700043 | 059145702M |
| BorgWarner | BV50-2277DYB426.18BVAXC | 53049700045 | 059145702R |
| BorgWarner | BV50-2277DYB426.18BVAXC | 53049700050 | 059145702S |
| BorgWarner | BV50-2277DYB426.18BVAXC | 53049700054 | 059145715F |
| BorgWarner | BV50-2274DCB426.18BVAXK | 53049700062 | 8973530342 |
| BorgWarner | BV50-2274DCB426.18BVAXK | 53049700066 | 8973530342 |
| BorgWarner | BV50 | 53049700070 | -- |
| BorgWarner | BV50 | 53049700101 | -- |
SW-K016 - Part Properties
Blades (Shaft blades count): 9
Type (Shaft & Wheel Type): Straight
Inducer Diameter A (Inducer Diameter A): 50.0
Exducer Diameter B (Exducer Diameter B): 44.2
Tip Height C (Tip Height C): 8.3
Journal Bearing Diameter D (Journal Bearing Diameter D): 7.0
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.6
Shaft Length (mm) (Shaft Length (mm)): 98.0
Back (Back): Closed
Piston Ring Type (Piston Ring Type): Single
Model (Model): K03/04
059145702F, 059145702L, 53049700035, 059145702M, 53049700043, 059145702R, 53049700045, 059145702S, 53049700050, 059145715F, 53049700054, 53049700062, 8973530342, 53049700066, 8973530342, 53049700070, 53049700101
Data updated: 2025-08-29 15:21:04
