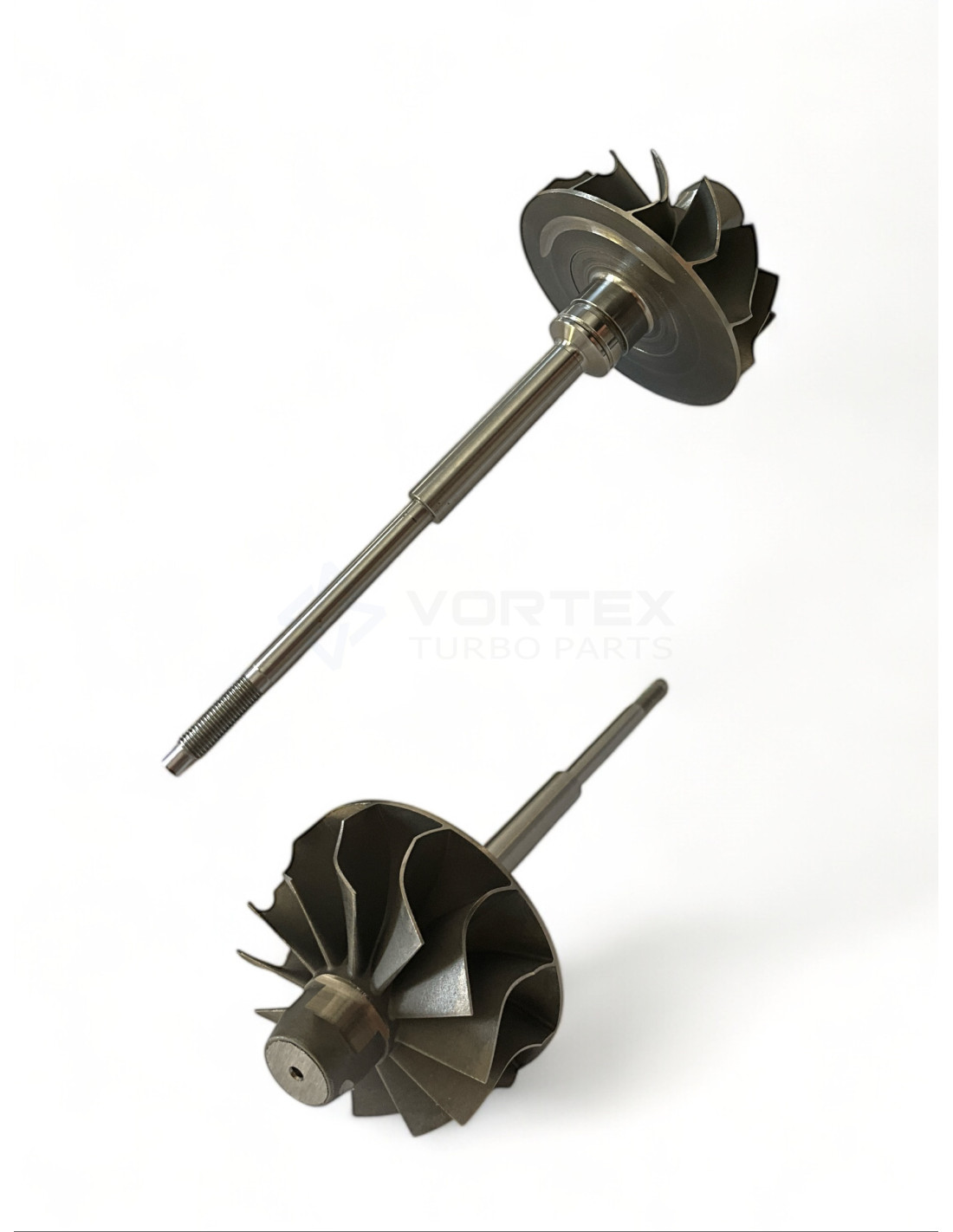

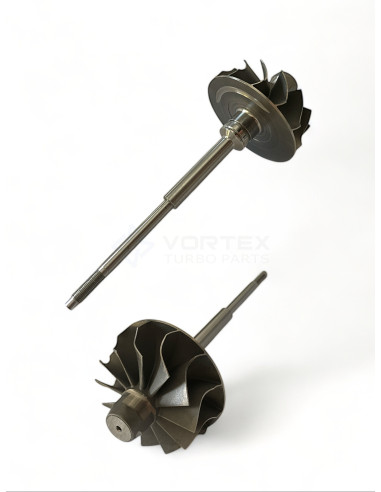

Shaft and wheel SW-K017
Shaft and wheel SW-K017

Shaft and wheel SW-K017

SW-K017
New
In Stock (10 Items)
€37.75
Tax included

5304 120 5018, SW-K017

Shaft and wheel SW-K017 for turbos 5304-970-0162, 53049700011, 53049700013, 53049700021, 53049700033, 53049700059, 53049700064, 53049700094, 53049700184, 53049700191.



SW-K017 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-K017

SW-K017 - Alternative numbers

BWO (BorgWarner original part number): 5304 120 5018

SW-K017 - Compatibility table

Shaft and wheel SW-K017 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
BorgWarnerK045304-970-0162--
BorgWarnerK04-2070EAB7.88GCASD53049700011037590, 9619991180
BorgWarnerK04-2070EAB7.88KCAXD530497000130375C0, 9633828080
BorgWarnerK04-2070EAB7.88GCASD53049700021ZY34026857
BorgWarnerK04-2280DCBAA6.88GCCXM5304970003330650569, 30650975, 30757112, 6G9N-6K682-AA, 6G9N6K682AA, 8603691
BorgWarnerK04-2277DCB437.98GGAXX5304970005912598713, 12618667, 12643932
BorgWarnerK04-2283DXBAA6.88GCAXM5304970006406F145702C
BorgWarner(R2S) K04-2274DGF201.88GCAAK530497000946510902880
BorgWarnerK04-2277DCB437.98GGAXX5304970018412652494
BorgWarnerK04-2283DXBAA6.88GCAXM5304970019106F145702F
BorgWarnerK04-2277DCB437.98GGAXX5304970020012598713, 12618667, 12643932
HitachiK04-2274DCB TG HWTSK0422-582GL214770-C, L33L13700B

SW-K017 - Part Properties

Blades (Shaft blades count): 12

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 50.0

Exducer Diameter B (Exducer Diameter B): 44.5

Tip Height C (Tip Height C): 6.5

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.0

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.6

Shaft Length (mm) (Shaft Length (mm)): 98.0

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Single

Model (Model): K03/04

53049700200, 53049700191, 53049700184, 53049700094, 53049700064, 53049700059, 53049700033, 53049700021, 53049700013, 53049700011, 037590, 5304 970 0011, 9619991180, 0375C0, 5304 970 0013, 9633828080, 5304 970 0021, ZY34026857, 30650569, 30650975, 30757112, 5304 970 0033, 6G9N-6K682-AA, 6G9N6K682AA, 8603691, 12598713, 12618667, 12643932, 5304 970 0059, 06F145702C, 5304 970 0064, 5304 970 0094, 6510902880, 12652494, 5304 970 0184, 06F145702F, 5304 970 0191, 12598713, 12618667, 12643932, 5304 970 0200, GL214770-C, K0422-582, L33L13700B

Data updated: 2024-09-11 15:14:32
