Shaft and wheel SW-G077
Shaft and wheel SW-G077

Shaft and wheel SW-G077

SW-G077
New
Last items in stock (2 Items)
€31.46
Tax included

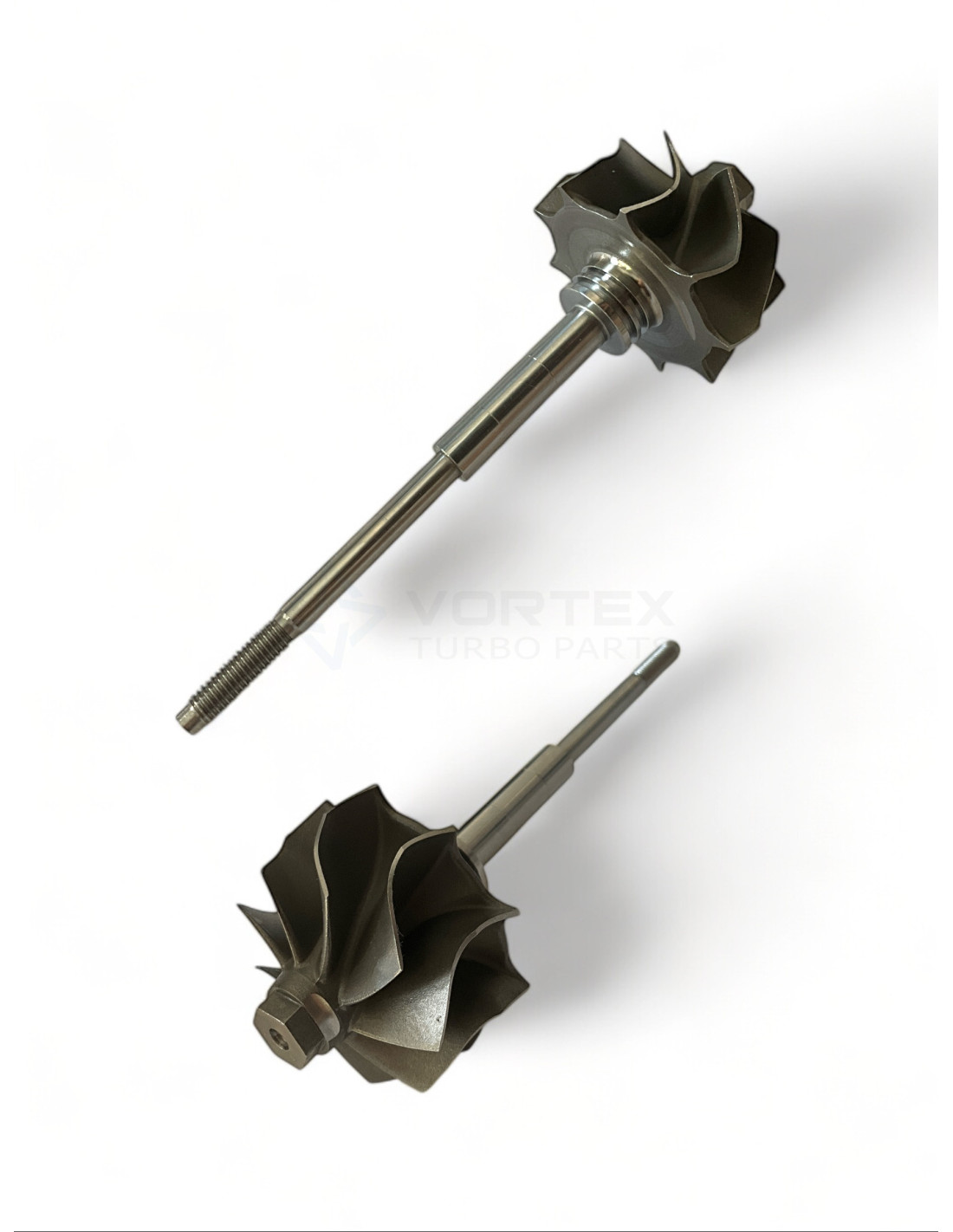

Shaft and wheel SW-G077 for turbos 742693-0001, 742693-0002, 742693-0003, 742693-0004.



SW-G077 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G077

SW-G077 - Compatibility table

Shaft and wheel SW-G077 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT1852V742693-0001A6460960399
GarrettGT1852V742693-0002A6460900180
GarrettGT1852V742693-0003A6460900180
GarrettGT1852V742693-0004A6460900180

SW-G077 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 43.3

Exducer Diameter B (Exducer Diameter B): 39.9

Tip Height C (Tip Height C): 8.5

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 92.5

Back (Back): Open

Piston Ring Type (Piston Ring Type): Twin

Model (Model): GT15-25

742693-0001, A6460960399, 742693-0002, A6460900180, 742693-0003, A6460900180, 742693-0004, A6460900180

Data updated: 2023-11-09 14:15:24
