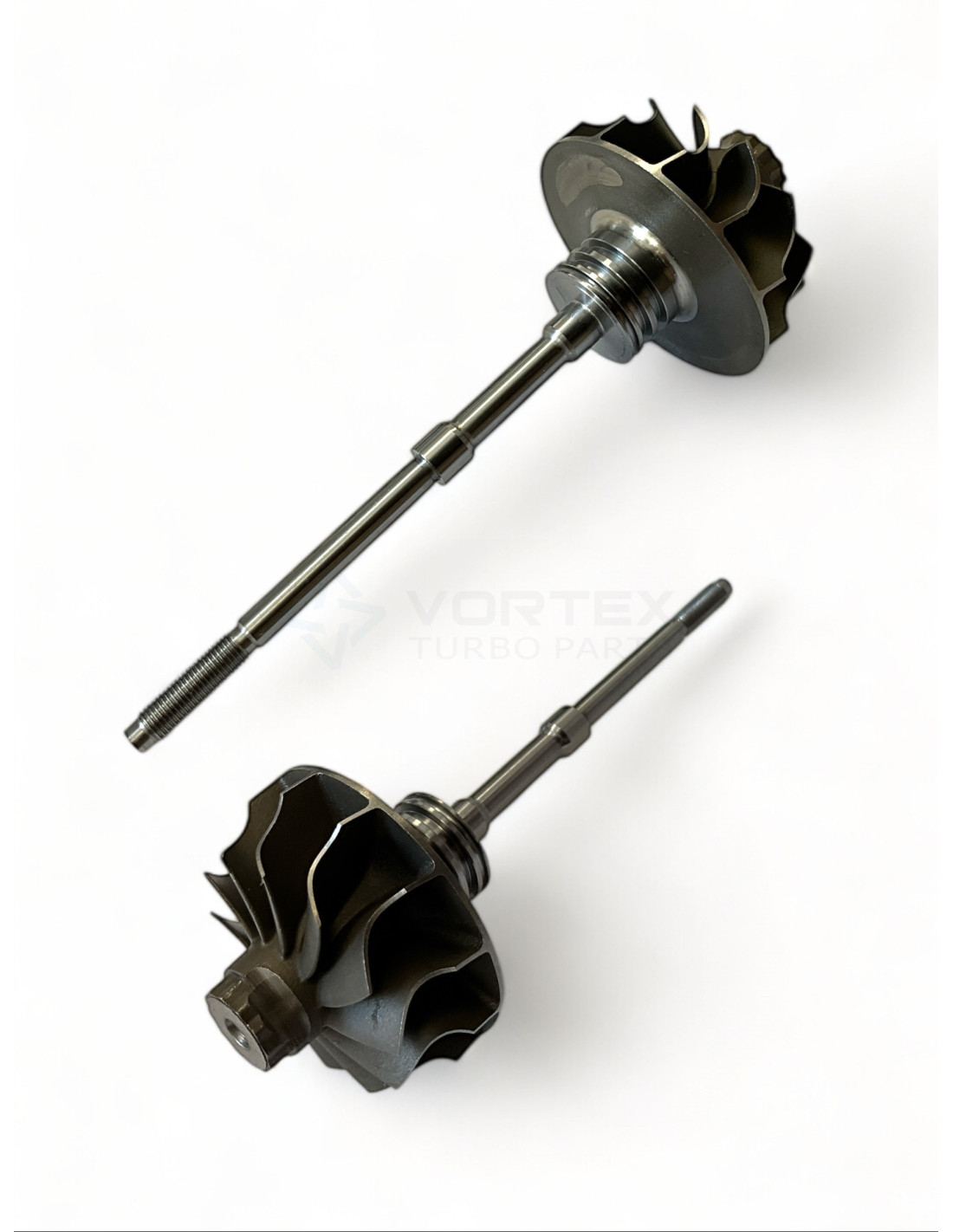

Shaft and wheel SW-G025
Shaft and wheel SW-G025

Shaft and wheel SW-G025

SW-G025
New
Last items in stock (4 Items)
€37.75
Tax included

Shaft and wheel SW-G025 for turbos 778401-0004, 778401-0005, 778401-0006, 778401-0007, 778401-0008, 778401-0010, 778401-0011, 778401-0012, 778402-0005, 778402-0012.



SW-G025 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G025

SW-G025 - Compatibility table

Shaft and wheel SW-G025 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT1444Z VTC778401-0004AH2Q6K682AC, LR013205
GarrettGT1444Z778401-0005AH2Q6K682AD, AH2Q6K682AF, LR013205, LR021254, LR032370, LR038620, LR056370, LR063777
GarrettGT1444Z + VTC778401-0006AH2Q6K682AE, LR032370
GarrettGT14778401-0007--
GarrettGT1444Z778401-0008AH2Q6K682AF, LR038620
GarrettGT1444Z VTC778401-0010AH2Q6K682AH
GarrettGT1444Z + VTC778401-0011AH2Q6K682AJ, LR063777
GarrettGT1444Z + VTC778401-0012AH2Q6K682AK, LR063777
GarrettGT1444Z778402-0005778402-0004, 778402-0005, 778402-0006, 778402-0008, 778402-0010
GarrettGT1444Z778402-0012778402-0004, 778402-0005, 778402-0006, 778402-0008, 778402-0012
GarrettGT1446SZ788778-000155562591
GarrettGT1446SZ788778-000255562591
GarrettGT1446SZ788778-000355596485
GarrettGT1444Z795221-0011--

SW-G025 - Part Properties

Blades (Shaft blades count): 12

Type (Shaft & Wheel Type): Slender

Inducer Diameter A (Inducer Diameter A): 39.0

Exducer Diameter B (Exducer Diameter B): 33.0

Tip Height C (Tip Height C): 5.1

Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.0

Shaft Length (mm) (Shaft Length (mm)): 80.0

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Twin

Model (Model): GT14

778401-0004, AH2Q6K682AC, LR013205, 778401-0005, AH2Q6K682AD, AH2Q6K682AF, LR013205, LR021254, LR032370, LR038620, LR056370, LR063777, 778401-0006, AH2Q6K682AE, LR032370, 778401-0007, 778401-0008, AH2Q6K682AF, LR038620, 778401-0010, AH2Q6K682AH, 778401-0011, AH2Q6K682AJ, LR063777, 778401-0012, AH2Q6K682AK, LR063777, 778402-0004, 778402-0005, 778402-0006, 778402-0008, 778402-0010, 778402-0004, 778402-0005, 778402-0006, 778402-0008, 778402-0012, 55562591, 788778-0001, 55562591, 788778-0002, 55596485, 788778-0003, 795221-0011

Data updated: 2024-10-03 17:13:42
