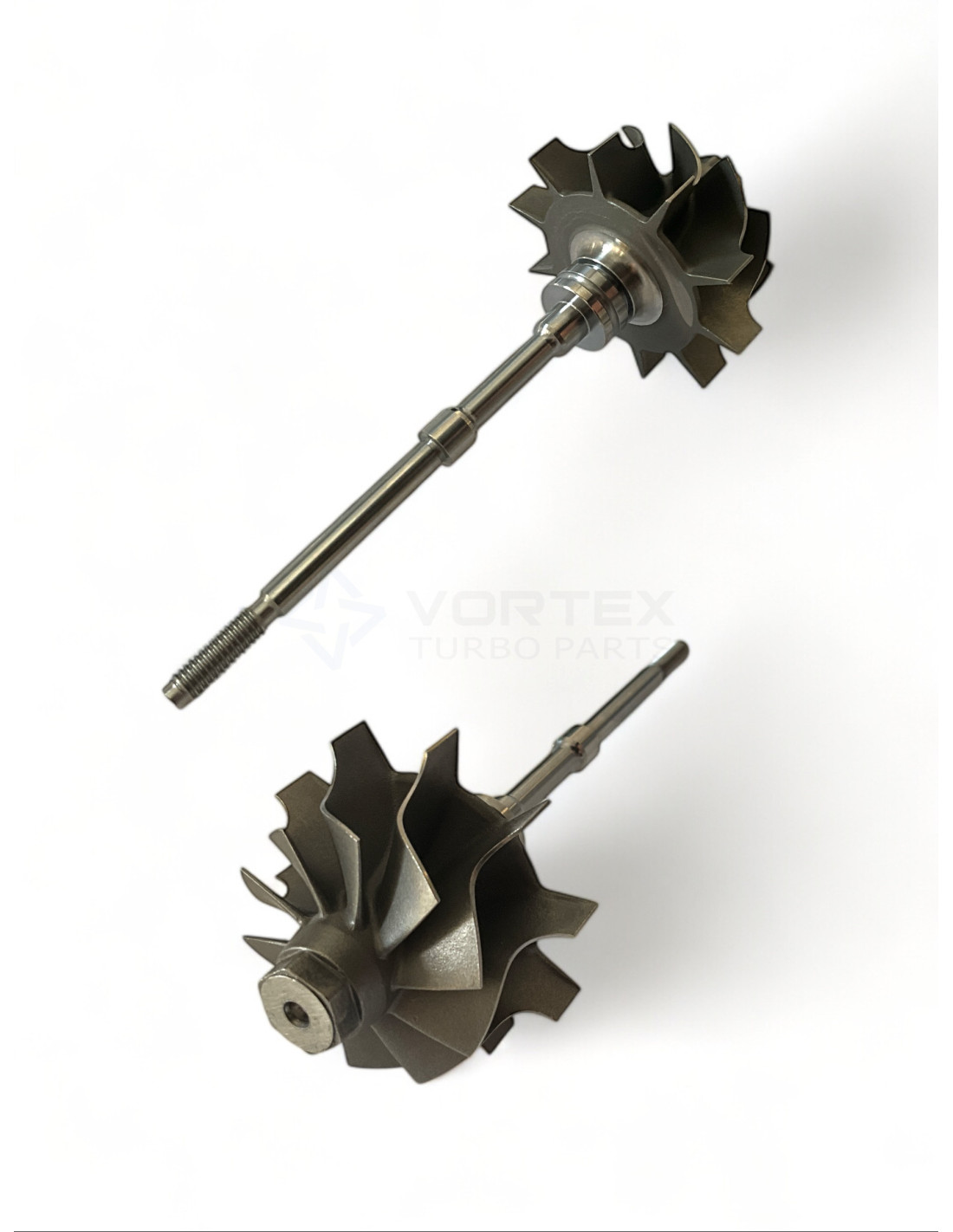

Shaft and wheel SW-G016
1100-016-173, SW-G016, TW-090
Shaft and wheel SW-G016 for turbos 706499-0001, 706499-0002, 706499-0004, 756919-0002, 756919-0003, 802419-0006, 802419-0008, 802419-0010.
See below for more info.
SW-G016 - Shaft and wheel
Brand: Vortex
Vortex Reference: SW-G016
SW-G016 - Alternative numbers
Jrone (Jrone): 1100-016-173
KD (KODE): TW-090
SW-G016 - Compatibility table
Shaft and wheel SW-G016 - Compatible turbochargers | |||
---|---|---|---|
TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
Garrett | GT1544Z | 706499-0001 | -- |
Garrett | GT1544Z | 706499-0002 | -- |
Garrett | GT1544Z | 706499-0004 | -- |
Garrett | GT1544Z | 756919-0002 | -- |
Garrett | GT1544Z | 756919-0003 | -- |
Garrett | GT1544Z | 802419-0006 | -- |
Garrett | GT1544Z | 802419-0008 | -- |
Garrett | GT1544Z | 802419-0010 | -- |
SW-G016 - Part Properties
Blades (Shaft blades count): 10
Type (Shaft & Wheel Type): Slender
Inducer Diameter A (Inducer Diameter A): 42.0
Exducer Diameter B (Exducer Diameter B): 32.2
Tip Height C (Tip Height C): 6.0
Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0
Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.0
Shaft Length (mm) (Shaft Length (mm)): 77.0
Back (Back): Open
Piston Ring Type (Piston Ring Type): Single
Model (Model): GT12
Data updated: 2022-12-19 12:24:46
