Shaft and wheel SW-G096
Shaft and wheel SW-G096

Shaft and wheel SW-G096

SW-G096
New
In Stock (10 Items)
€47.19
Tax included

Ball Bearing

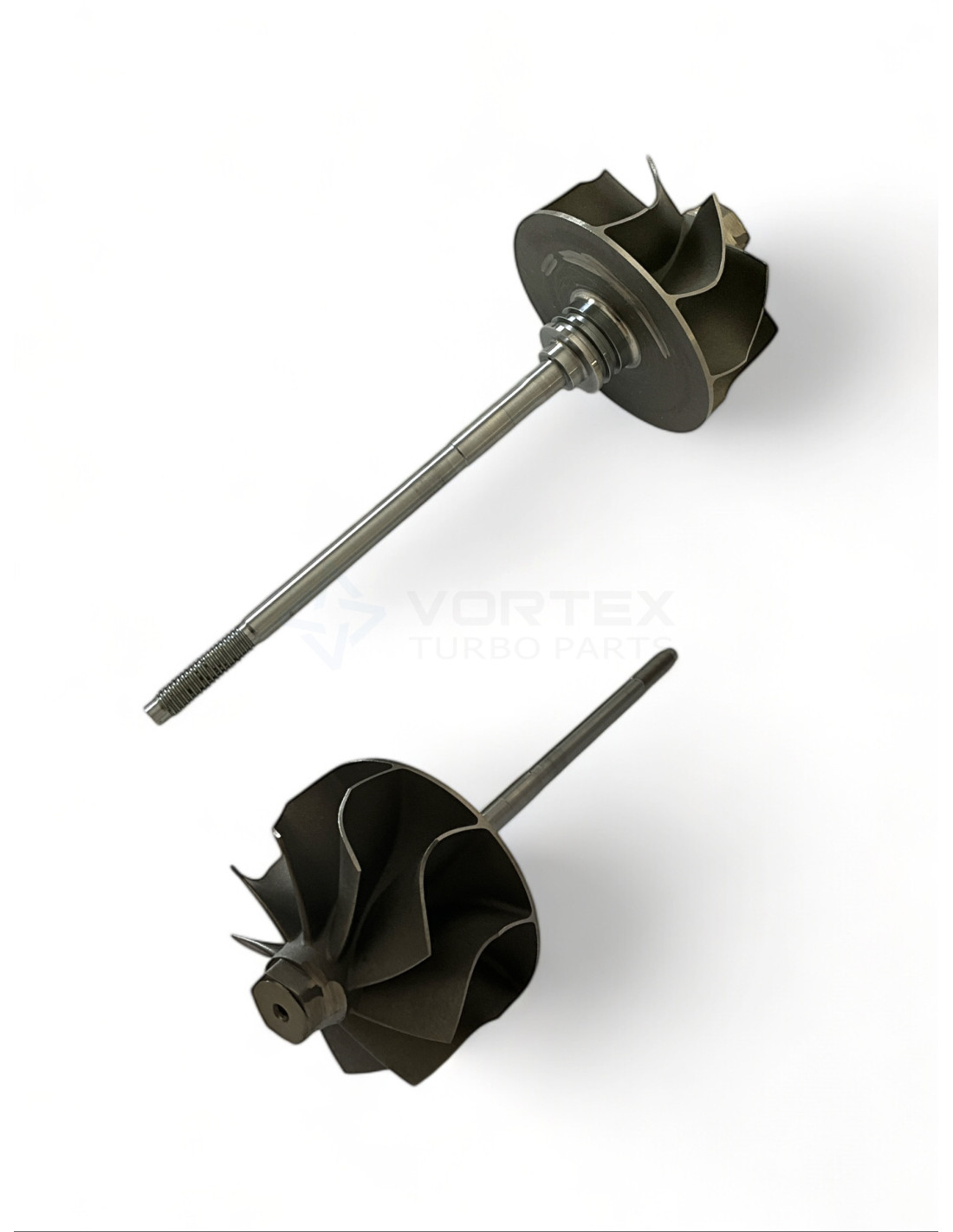

Shaft and wheel SW-G096 for turbos 794877-0004, 794877-0006, 794877-0007, 794877-0008, 794877-0009.



SW-G096 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G096

SW-G096 - Compatibility table

Shaft and wheel SW-G096 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGTB2260VKLR794877-00046420909580, A6420909580
GarrettGTB2260VKLR794877-00066420901786, A6420901786
GarrettGTB2260VKLR794877-00076420901786, A6420901786
GarrettGTB2260VKLR794877-0008A6420901786
GarrettGTB2260VKLR794877-0009A6420901786

SW-G096 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 50.0

Exducer Diameter B (Exducer Diameter B): 45.9

Tip Height C (Tip Height C): 10.0

Journal Bearing Diameter D (Journal Bearing Diameter D): 6.5

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 100.0

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Twin

Model (Model): GT15-25 BB

6420909580, 794877-0004, A6420909580, 6420901786, 794877-0006, A6420901786, 6420901786, 794877-0007, A6420901786, 794877-0008, A6420901786, 794877-0009, A6420901786

Data updated: 2024-12-13 12:48:34
