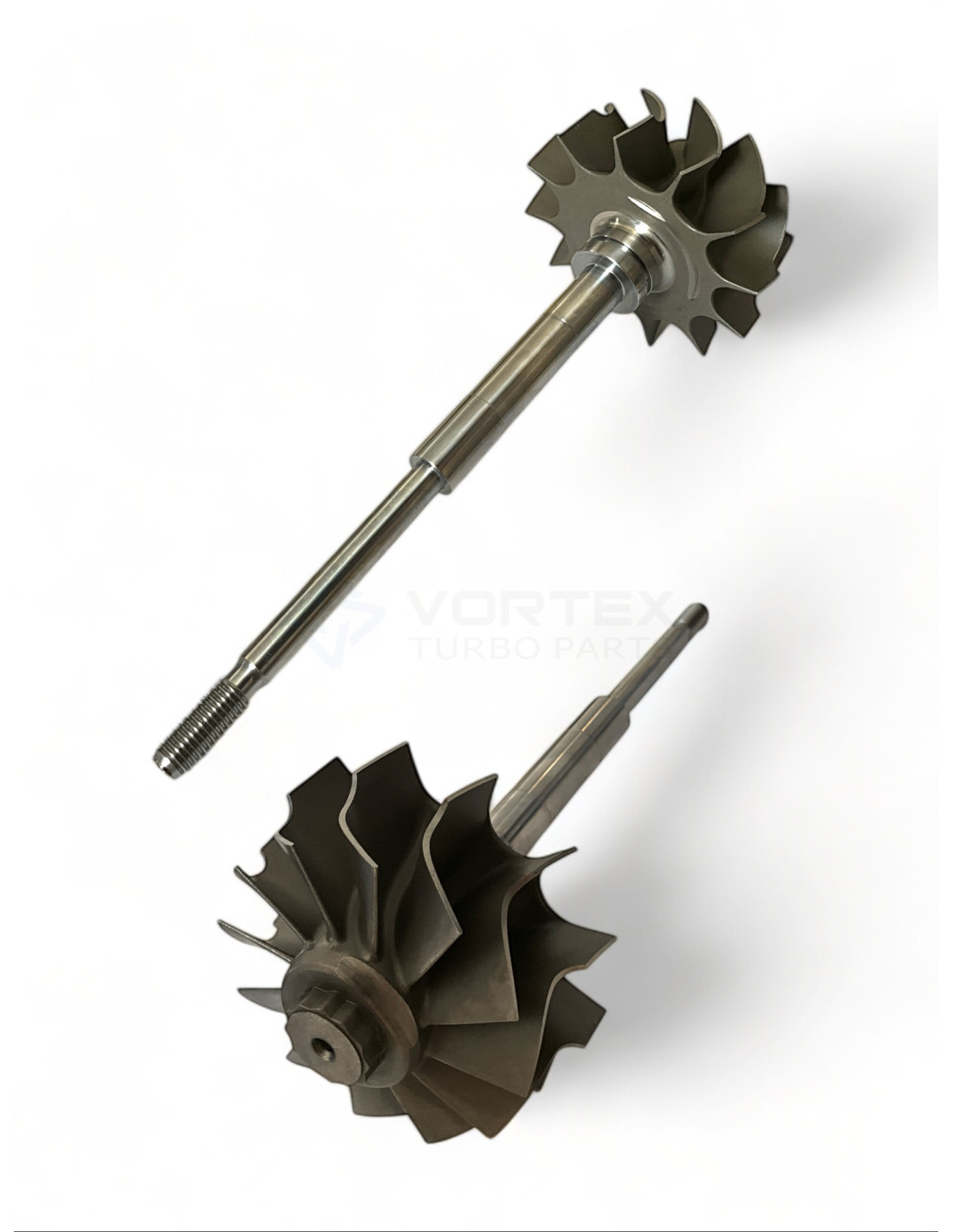

Shaft and wheel SW-H008
Shaft and wheel SW-H008
Shaft and wheel SW-H008
Shaft and wheel SW-H008

Shaft and wheel SW-H008

SW-H008
New
In Stock (7 Items)
€67.64
Tax included

Shaft and wheel SW-H008 for turbos 2840195, 3592811, 3592836, 3596183, 3596191, 4029159, 4029160, 4035044, 4036835, 4036836.

See below for more info.



SW-H008 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-H008

SW-H008 - Compatibility table

Shaft and wheel SW-H008 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
HolsetHX352840195--
HolsetHX353592811--
HolsetHX353592836--
HolsetHX353596183--
HolsetHX353596191--
HolsetHX354029159--
HolsetHX354029160--
HolsetHX354035044--
HolsetHX354036835--
HolsetHX354036836--
HolsetHX354037001--
HolsetHX354037002--
HolsetHX354043600--
HolsetHX354050004--
HolsetHX354050155--
HolsetHX354050237--
HolsetHX354050242--
HolsetHX354051093--
HolsetHX354051162--
HolsetHX354051197--
HolsetHX354051198--

SW-H008 - Part Properties

Blades (Shaft blades count): 12

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 65.5

Exducer Diameter B (Exducer Diameter B): 58.5

Tip Height C (Tip Height C): 10.5

Journal Bearing Diameter D (Journal Bearing Diameter D): 11.0

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 7.0

Shaft Length (mm) (Shaft Length (mm)): 140.0

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): HX35

Data updated: 2023-01-19 11:52:26
