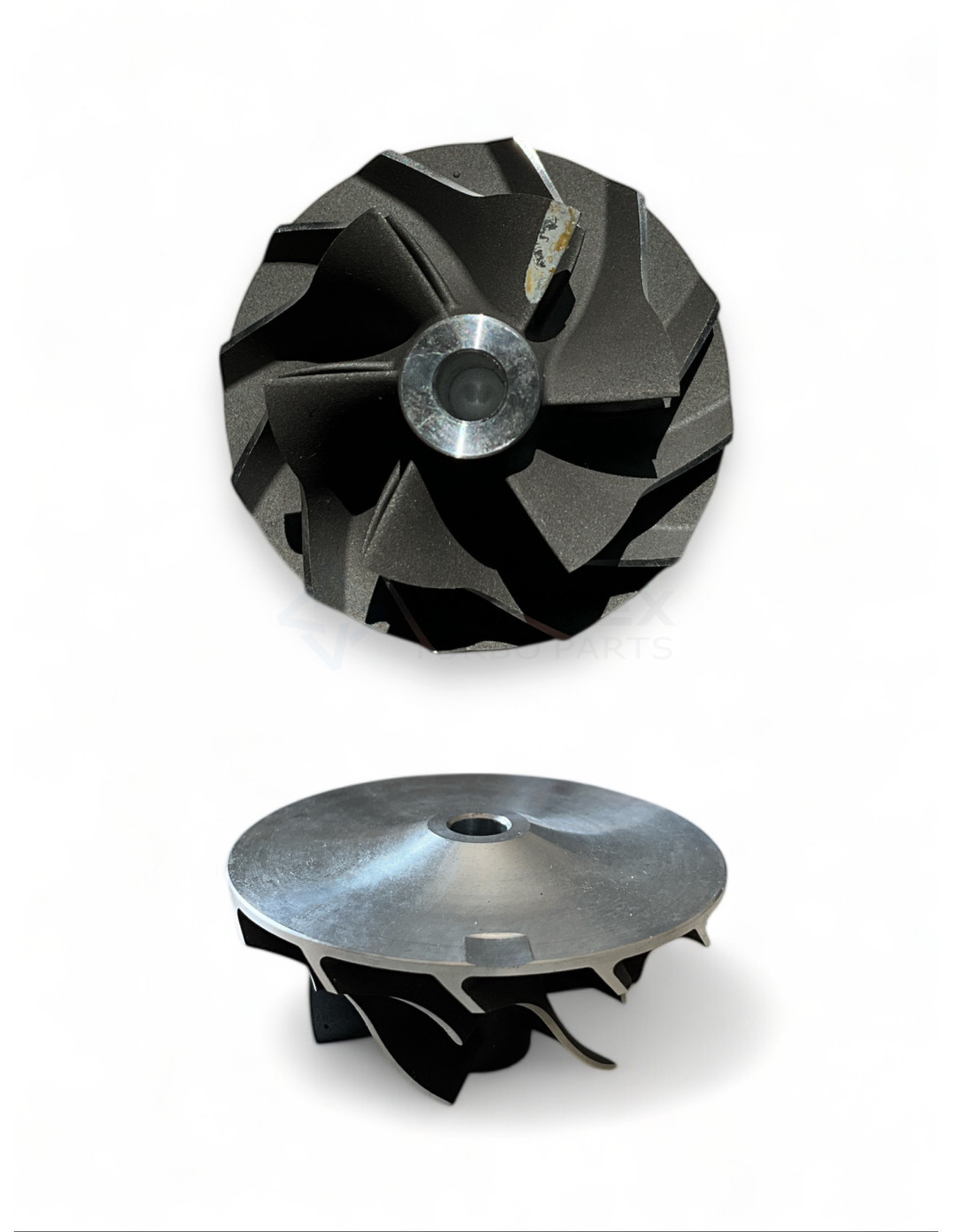

Compressor Wheel CW-G048
CW-G048
Nuevo
Please login to see prices and stock
Compressor Wheel CW-G048 for turbos 452244-0004, 452244-0005, 701729-0001, 701729-0003, 701729-0006, 701729-0009, 701729-0010, 706680-0001, 720243-0001, 720243-0002.
CW-G048 - Compressor Wheel
Brand: Vortex
Vortex Reference: CW-G048
CW-G048 - Compatibility table
| Compressor Wheel CW-G048 - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| Garrett | GT1544S | 452244-0004 | -- |
| Garrett | GT1544S | 452244-0005 | -- |
| Garrett | GT1544S | 701729-0001 | 045145701 |
| Garrett | GT1544S | 701729-0003 | 045145701V400 |
| Garrett | GT1544S | 701729-0006 | 045145701V405 |
| Garrett | GT1544S | 701729-0009 | 045145701V500 |
| Garrett | GT1544S | 701729-0010 | 045145701J |
| Garrett | GT1544S | 706680-0001 | 045145701C |
| Garrett | GT1544S | 720243-0001 | 045253019D, 045253019G, 045253019L |
| Garrett | GT1544S | 720243-0002 | 045253019D, 045253019G, 045253019L |
| Garrett | GT1544S | 733783-0003 | -- |
| Garrett | GT1544S | 733783-0004 | -- |
| Garrett | GT1544S | 733783-0006 | -- |
| Garrett | GT1544S | 733783-0007 | -- |
CW-G048 - Part Properties
Blades (Compressor wheel blades count): 6/6
Trim (Compressor wheel trim): Superback

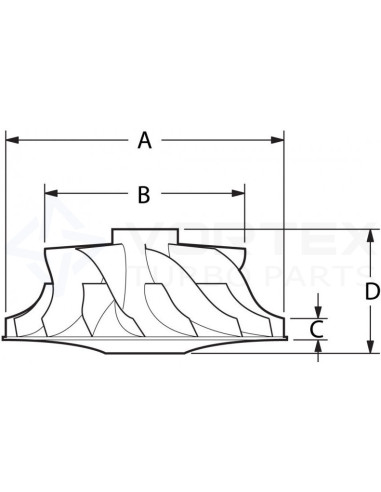

Exducer diameter A (Exducer diameter A): 44.0
Inducer diameter B (Inducer diameter B): 31.1
Tip Height C (Tip Height C): 4.1
Total Height D (Total Height D): 22.8
Model (Model): GT15-25
452244-0004, 452244-0005, 045145701, 701729-0001, 045145701V400, 701729-0003, 045145701V405, 701729-0006, 045145701V500, 701729-0009, 045145701J, 701729-0010, 045145701C, 706680-0001, 045253019D, 045253019G, 045253019L, 720243-0001, 045253019D, 045253019G, 045253019L, 720243-0002, 733783-0003, 733783-0004, 733783-0006, 733783-0007
Data updated: 2025-09-08 21:58:42
