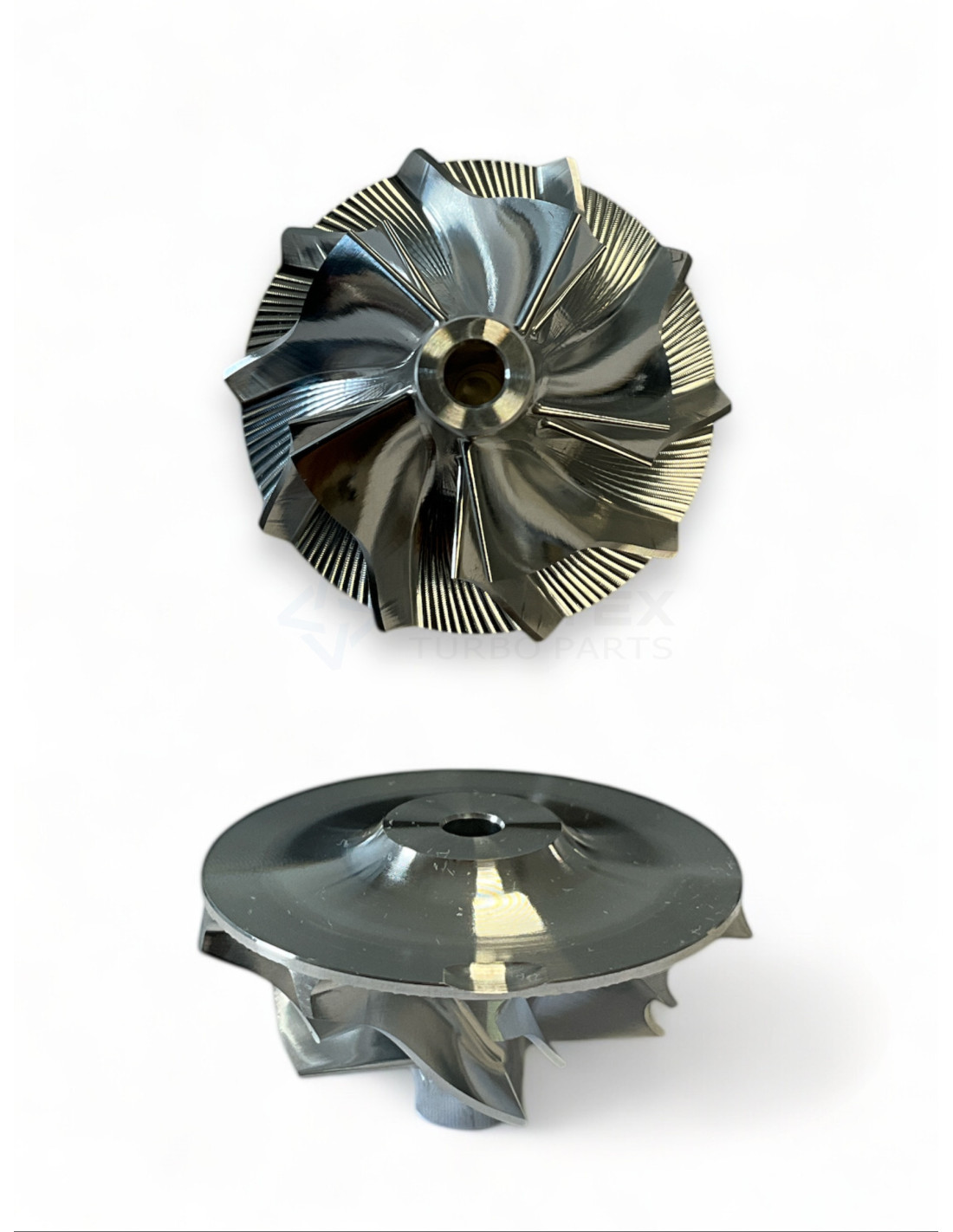

Compressor Wheel CW-K063B
CW-K063B
Nuevo
Please login to see prices and stock
Compressor Wheel CW-K063B for turbos 10009700026, 10009700027, 10009700029, 10009700052, 10009700053, 10009700064, 10009700065, 10009700066, 10009700067, 10009700098.
CW-K063B - Compressor Wheel
Brand: Vortex
Vortex Reference: CW-K063B
CW-K063B - Compatibility table
| Compressor Wheel CW-K063B - Compatible turbochargers | |||
|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO OE NUMBER |
| BorgWarner | R2S KP35 + K04 | 10009700026 | 03L145702S |
| BorgWarner | R2S KP35 + K04 | 10009700027 | 03L145715 |
| BorgWarner | R2S KP35 + K04 | 10009700029 | 03L145715A |
| BorgWarner | R2S KP35 + K04 | 10009700052 | 03L145701F |
| BorgWarner | R2S KP35 + K04 | 10009700053 | 03L145701G |
| BorgWarner | R2S KP35 + K04 | 10009700064 | 03L145715D |
| BorgWarner | R2S KP35 + K04 | 10009700065 | 03L145715E |
| BorgWarner | R2S KP35 + K04 | 10009700066 | 03L145701F |
| BorgWarner | R2S KP35 + K04 | 10009700067 | 03L145701G |
| BorgWarner | R2S KP35 + K04 | 10009700098 | 03L145715J |
| BorgWarner | R2S KP35 + K04 | 10009700099 | 03L145873 |
| BorgWarner | R2S KP35 + K04 | 10009700102 | 03L145715G |
| BorgWarner | B01V | 16359193000 | -- |
CW-K063B - Part Properties
Blades (Compressor wheel blades count): 5/5
Trim (Compressor wheel trim): Deep Superback
Exducer diameter A (Exducer diameter A): 37.0
Inducer diameter B (Inducer diameter B): 27.9
Tip Height C (Tip Height C): 3.5
Total Height D (Total Height D): 22.0
Billet / Casting (Billet / Casting): Billet
Model (Model): KP31-39
16359193000, 10009700102, 10009700099, 10009700098, 10009700067, 10009700066, 10009700065, 10009700064, 10009700053, 10009700052, 10009700029, 10009700027, 10009700026, 03L145702S, 1000 970 0026, 03L145715, 1000 970 0027, 03L145715A, 1000 970 0029, 03L145701F, 1000 970 0052, 03L145701G, 1000 970 0053, 03L145715D, 1000 970 0064, 03L145715E, 1000 970 0065, 03L145701F, 1000 970 0066, 03L145701G, 1000 970 0067, 03L145715J, 1000 970 0098, 03L145873, 1000 970 0099, 03L145715G, 1000 970 0102, 1635 919 3000
