Shaft and wheel SW-K024
Shaft and wheel SW-K024

Shaft and wheel SW-K024

SW-K024
New
Last items in stock (4 Items)
€47.19
Tax included

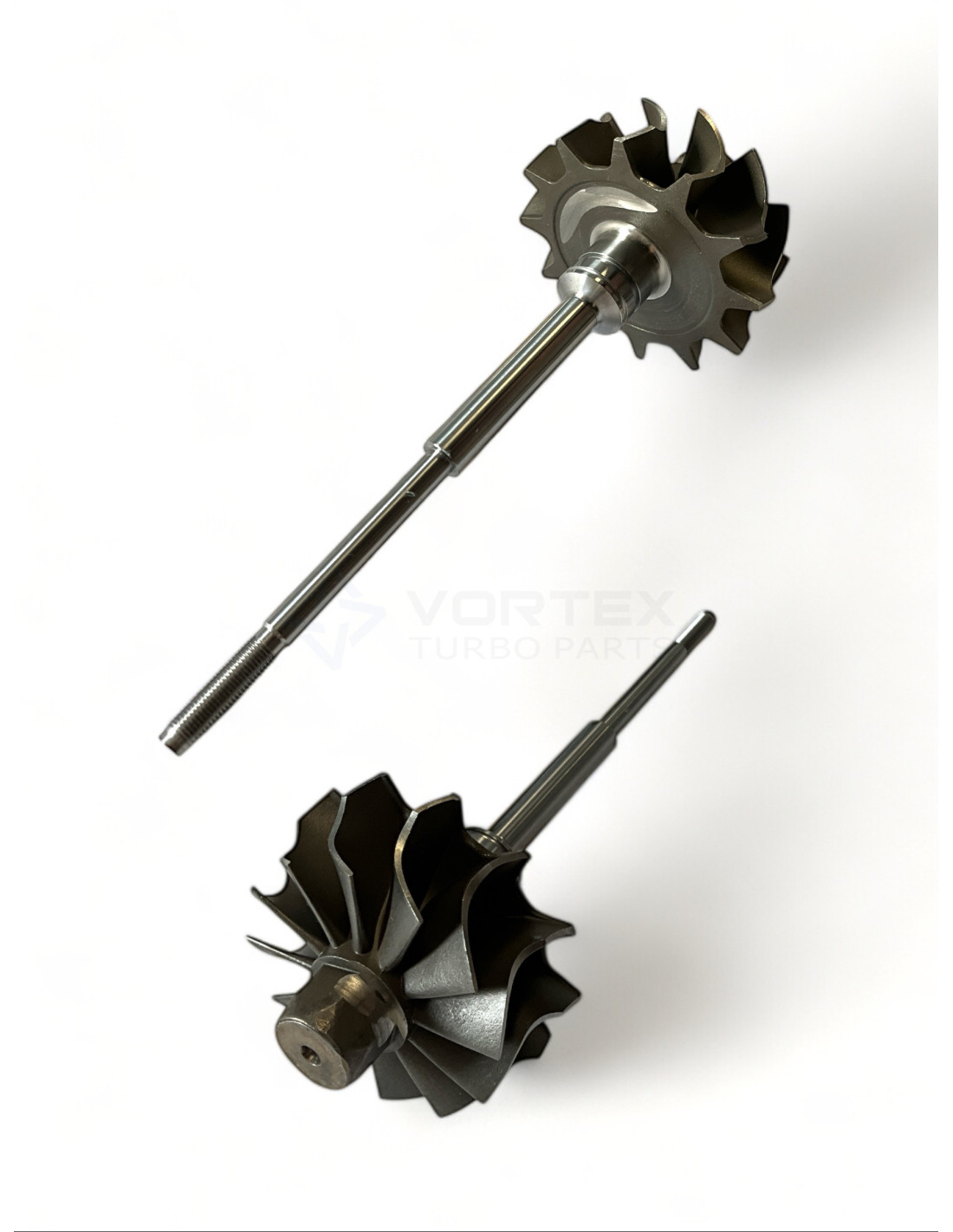

Shaft and wheel SW-K024 for turbos 53049700024, 53049700028, 53049700029, 53049700048, 53049700049.



SW-K024 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-K024

SW-K024 - Compatibility table

Shaft and wheel SW-K024 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
BorgWarnerK04-2075ECD6.88GCCXK5304970002490423508
BorgWarnerK04-2275EYE6.88GCAXM53049700028077145703P
BorgWarnerK04-2275EYE6.88GCAXM53049700029077145704K
BorgWarnerK04-2075ECD6.88GCCXK5304970004855559848
BorgWarnerK04-2277DYB6.88GCCXK5304970004955559850

SW-K024 - Part Properties

Blades (Shaft blades count): 12

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 50.1

Exducer Diameter B (Exducer Diameter B): 44.5

Tip Height C (Tip Height C): 6.5

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.0

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.6

Shaft Length (mm) (Shaft Length (mm)): 99.0

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): K03/04

53049700049, 53049700048, 53049700029, 53049700028, 53049700024, 5304 970 0024, 90423508, 077145703P, 5304 970 0028, 077145704K, 5304 970 0029, 5304 970 0048, 55559848, 5304 970 0049, 55559850

Data updated: 2023-11-09 14:49:28
