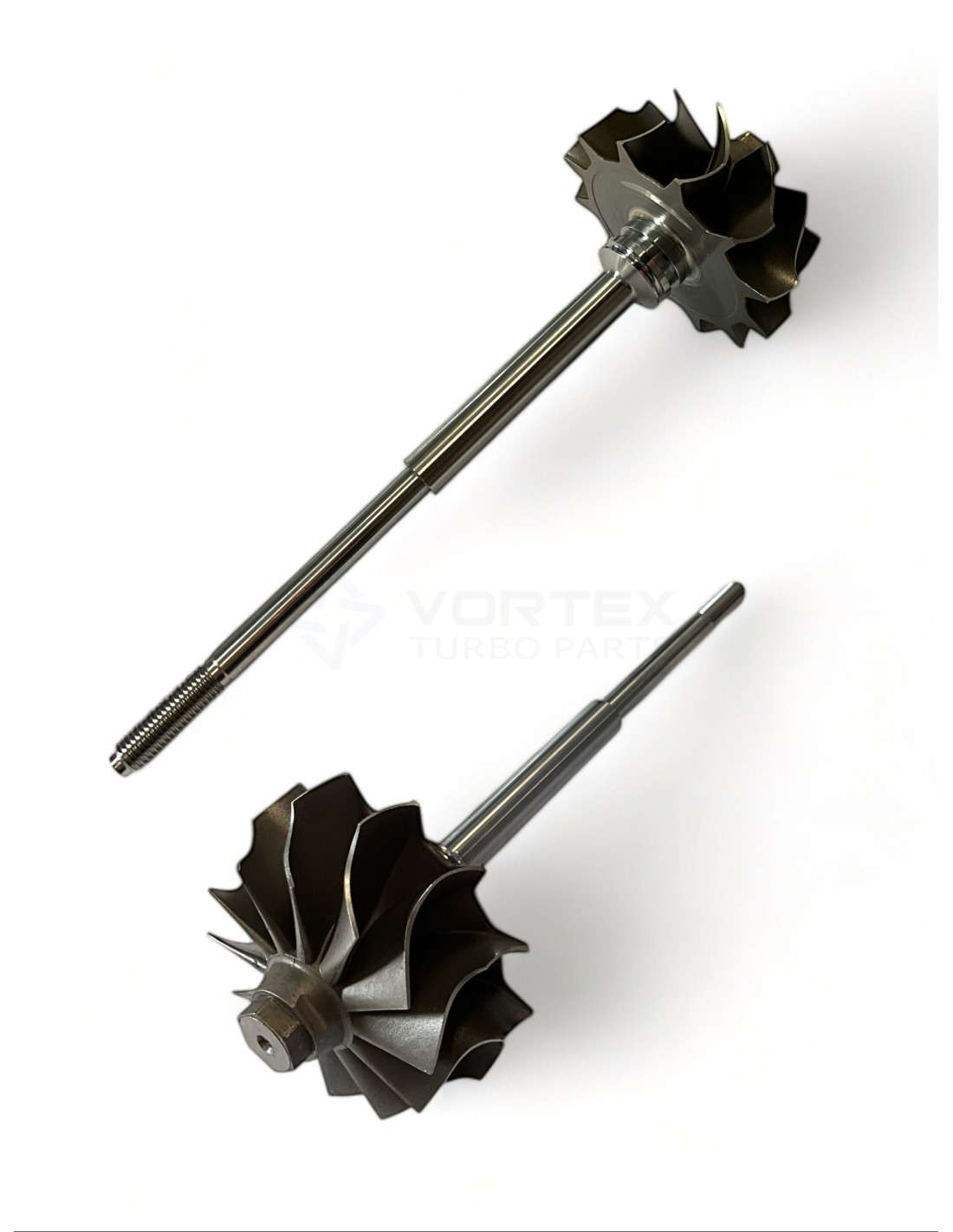

Shaft and wheel SW-K032
Shaft and wheel SW-K032

Shaft and wheel SW-K032

SW-K032
New
In Stock (22 Items)
€64.81
Tax included

(Length 149 mm)

5326 120 5002, SW-K032

Shaft and wheel SW-K032 for turbos 12641970001, 12641970002, 53269700000, 53269700001, 53269700003, 53269700004, 53269700007, 53269706016, 53269706035, 53269706094.



SW-K032 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-K032

SW-K032 - Alternative numbers

BWO (BorgWarner original part number): 5326 120 5002

SW-K032 - Compatibility table

Shaft and wheel SW-K032 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
BorgWarnerR2S K14 + K261264197000151.09100-7702
BorgWarnerR2S K2612641970002--
BorgWarnerK26-2871OXAXA238.81GAAXK53269700000--
BorgWarnerK26-2871NXAXA245.81GAAXK53269700001--
BorgWarnerK2653269700003--
BorgWarnerK26-2871NXAXA245.81GAAXK53269700004--
BorgWarnerK26-2871OXAAB12.81GAAQD53269700007--
BorgWarnerK26-2960MXA6.71GAAXB532697060163581528, 3802082
BorgWarnerK26-2960MXAAA4.71GABXB532697060353582516, 3802114
BorgWarnerK26-2960MXA6.71GAAXB53269706094838695, 860916R
BorgWarnerK26-2962MNAAA6.81GNAQD5326970620151.09100-7322
BorgWarnerK26-2962MNAAA6.81GNAQD5326970620251.09100-7325
BorgWarnerK26-2962MNAAA5.81GAAQD5326970620351.09100-7323, 51.09100-7361
BorgWarnerK26-2962MNAAA5.11GAAQB5326970620451.09100-7356
BorgWarnerK26-2962MNAAA6.11GAAQB5326970620551.09100-7373
BorgWarnerK26-2962MNAAA5.81GAAQD5326970620651.09100-7390, 51.09100-9390
BorgWarnerK26-2962MNAAA5.81GAAQD5326970620851.09100-7489
BorgWarnerK26-3262MAA10.71GAAXB532697062903802061, 838697, 860918
BorgWarnerK2653269706291--
BorgWarnerK26-3262MGA8.71GAAXB53269706292119173-18011
BorgWarnerK26-3262MGA12.71GAAXB53269706293860352R
BorgWarnerK26-2964MNA6.51GAAQD5326970645635242073F
BorgWarnerK26-3264MGA10.71GAAXB532697064963802063, 860352R
BorgWarnerK26-3264MGA10.71GAAXB532697064973802063, 860352R
BorgWarnerK26-2964MNA6.51GAAQD5326970649835242054F
BorgWarnerK26-2960MXA6.71GAAXB53269706750--
BorgWarnerK26-2960MXA6.71GAAXB53269706751--
BorgWarnerK26-2960MXA6.71GAAXB53269706752--
BorgWarnerK2653269707099--
BorgWarnerK2653269707104--
BorgWarnerK26-2877XYAKB6.71GAAXB532697077003582769, 3802150
BorgWarnerK26-2877XYAKB8.71GAAXB532697077013582768, 3802149
BorgWarnerK26-2871OXAXA238.81GAAXK53269710000779457201
BorgWarnerK26-2871NXAXA245.81GAAXK532697100047811404

SW-K032 - Part Properties

Blades (Shaft blades count): 12

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 64.0

Exducer Diameter B (Exducer Diameter B): 54.5

Tip Height C (Tip Height C): 10.0

Journal Bearing Diameter D (Journal Bearing Diameter D): 10.0

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 7.0

Shaft Length (mm) (Shaft Length (mm)): 149.0

Back (Back): Open

Piston Ring Type (Piston Ring Type): Twin

Model (Model): K26

53269710004, 53269710000, 53269707701, 53269707700, 53269706752, 53269706751, 53269706750, 53269706498, 53269706497, 53269706496, 53269706456, 53269706293, 53269706292, 53269706290, 53269706208, 53269706206, 53269706205, 53269706204, 53269706203, 53269706202, 53269706201, 53269706094, 53269706035, 53269706016, 53269700007, 53269700004, 53269700001, 53269700000, 12641970002, 12641970001, 1264 197 0001, 51.09100-7702, 1264 197 0002, 5326 970 0000, 5326 970 0001, 5326-970-0003, 53269700003, 5326 970 0004, 5326 970 0007, 3581528, 3802082, 5326 970 6016, 3582516, 3802114, 5326 970 6035, 5326 970 6094, 838695, 860916R, 51.09100-7322, 5326 970 6201, 51.09100-7325, 5326 970 6202, 51.09100-7323, 51.09100-7361, 5326 970 6203, 51.09100-7356, 5326 970 6204, 51.09100-7373, 5326 970 6205, 51.09100-7390, 51.09100-9390, 5326 970 6206, 51.09100-7489, 5326 970 6208, 3802061, 5326 970 6290, 838697, 860918, 53269706291, 119173-18011, 5326 970 6292, 5326 970 6293, 860352R, 35242073F, 5326 970 6456, 3802063, 5326 970 6496, 860352R, 3802063, 5326 970 6497, 860352R, 35242054F, 5326 970 6498, 5326 970 6750, 5326 970 6751, 5326 970 6752, 53269707099, 53269707104, 3582769, 3802150, 5326 970 7700, 3582768, 3802149, 5326 970 7701, 5326 971 0000, 779457201, 5326 971 0004, 7811404

Data updated: 2025-02-20 17:56:26
