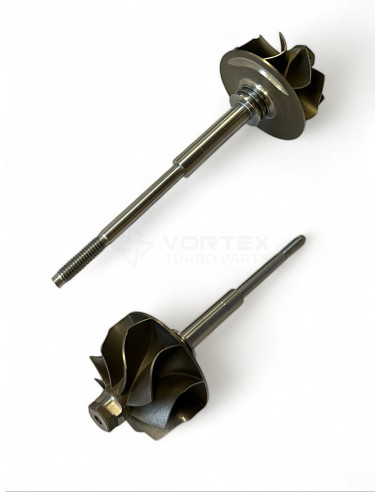

Shaft and wheel SW-G008
Shaft and wheel SW-G008

Shaft and wheel SW-G008

SW-G008
New
In Stock (101 Items)
€26.74
Tax included

Shaft and wheel SW-G008 for turbos 767378-0005, 767378-0006, 767378-0007, 767378-0008, 767378-0009, 767378-0010, 767378-0013, 767378-0014.



SW-G008 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G008

SW-G008 - Compatibility table

Shaft and wheel SW-G008 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGTB1749VK767378-00057800594C02
GarrettGTB1749VK767378-00067800595C02
GarrettGTB1749VK767378-00077810189B01
GarrettGTB1749VK767378-00087810190B01
GarrettGTB1749VK767378-00097810189C02
GarrettGTB1749VK767378-00107810190C02
GarrettGTB1749VK767378-001378005940000
GarrettGTB1749VK767378-001478005950000

SW-G008 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 43.0

Exducer Diameter B (Exducer Diameter B): 37.3

Tip Height C (Tip Height C): 9.0

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 92.5

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Twin

Model (Model): GT15-25

767378-0005, 7800594C02, 767378-0006, 7800595C02, 767378-0007, 7810189B01, 767378-0008, 7810190B01, 767378-0009, 7810189C02, 767378-0010, 7810190C02, 767378-0013, 78005940000, 767378-0014, 78005950000

Data updated: 2024-06-22 12:58:29
