Shaft and wheel SW-G149
Shaft and wheel SW-G149

Shaft and wheel SW-G149

SW-G149
New
In Stock (7 Items)
€50.34
Tax included

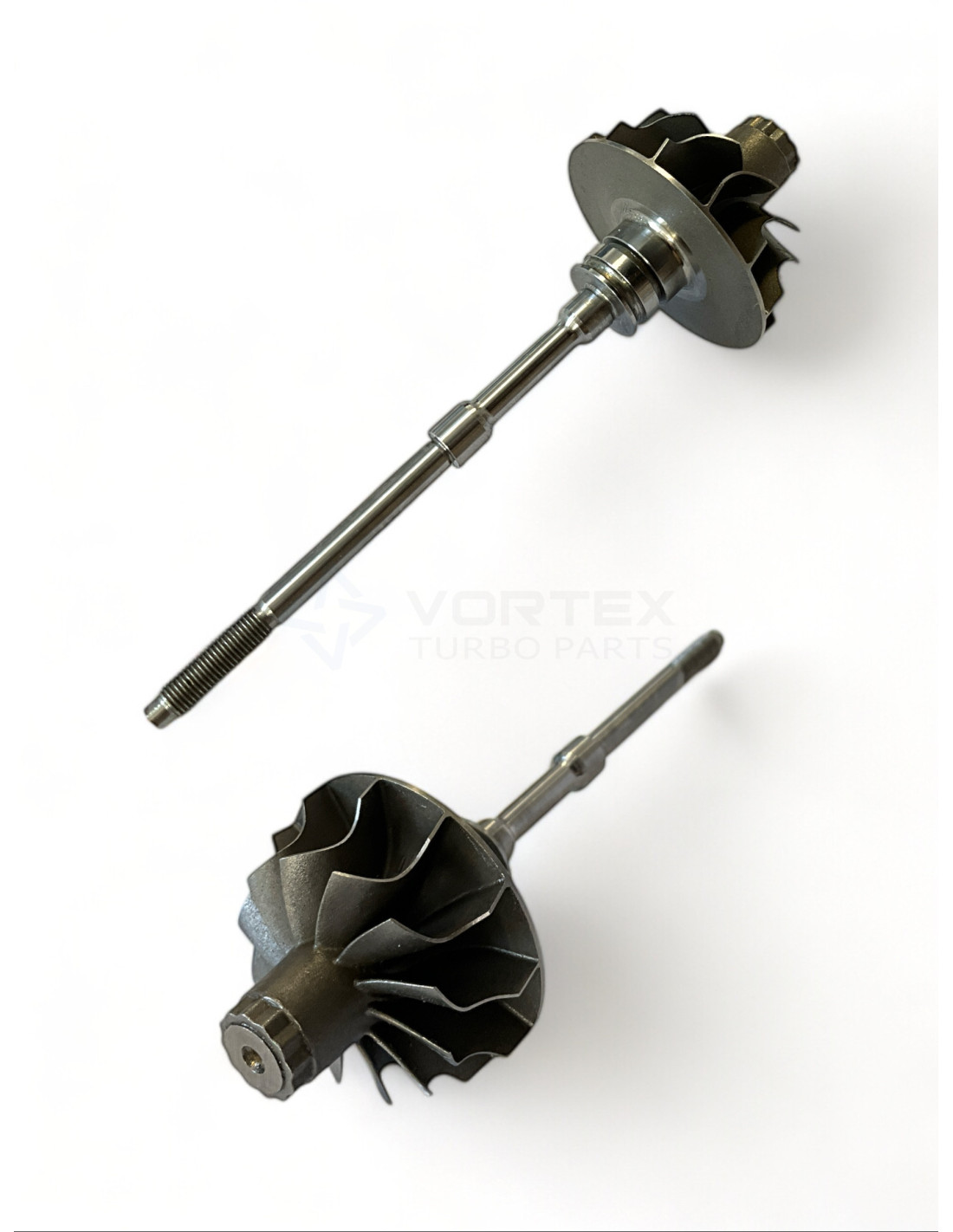

Shaft and wheel SW-G149 for turbos 801374-0001, 801374-0003, 801374-0004.



SW-G149 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G149

SW-G149 - Compatibility table

Shaft and wheel SW-G149 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettGT1241JOSZ801374-0001144117533RC
GarrettGT1241JOSZ801374-0003144117533RC
GarrettGT1241JOSZ801374-0004144117533RC

SW-G149 - Part Properties

Blades (Shaft blades count): 12

Type (Shaft & Wheel Type): Slender

Inducer Diameter A (Inducer Diameter A): 35.5

Exducer Diameter B (Exducer Diameter B): 29.1

Tip Height C (Tip Height C): 4.6

Journal Bearing Diameter D (Journal Bearing Diameter D): 6.0

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 4.0

Shaft Length (mm) (Shaft Length (mm)): 80.0

Back (Back): Closed

Piston Ring Type (Piston Ring Type): Single

Rotation (Rotation): Reverse

Model (Model): GT12

144117533RC, 801374-0001, 144117533RC, 801374-0003, 144117533RC, 801374-0004

Data updated: 2024-10-11 11:20:16
