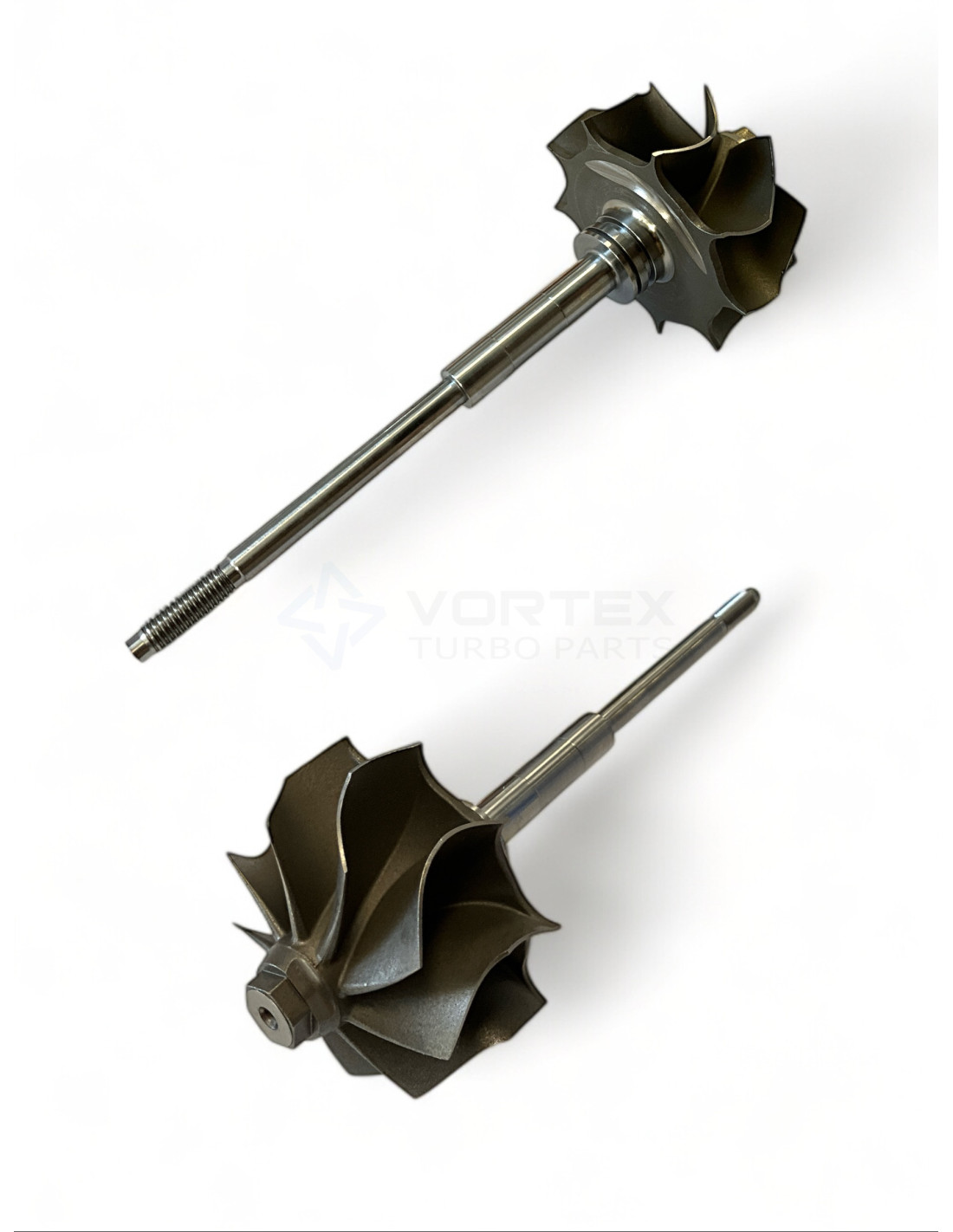

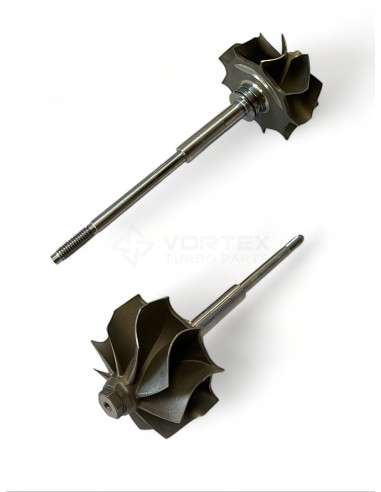

Shaft and wheel SW-G106
Shaft and wheel SW-G106

Shaft and wheel SW-G106

SW-G106
New
Last items in stock (3 Items)
€47.19
Tax included

Shaft and wheel SW-G106 for turbos 769155-0012, 769155-0015, 786331-0007, 786331-0008, 786331-0011, 786332-0006, 786332-0007, 786332-0008, 786332-0011, 793647-0001.



SW-G106 - Shaft and wheel

Brand: Vortex

Vortex Reference: SW-G106

SW-G106 - Compatibility table

Shaft and wheel SW-G106 - Compatible turbochargers
TURBO MAKERTURBO MODELTURBO REFERENCETURBO OE NUMBER
GarrettMGT2256S769155-00124571543A03
GarrettMGT2256S769155-00157590598A02
GarrettMGT2260S786331-0007--
GarrettMGT2260S786331-0008--
GarrettMGT2260S786331-0011--
GarrettMGT2260S786332-0006--
GarrettMGT2260S786332-0007--
GarrettMGT2260S786332-0008--
GarrettMGT2260S786332-0011--
GarrettMGT2260SDL793647-0001--
GarrettMGT2256S793647-00027590598F02
GarrettMGT2260SDL793647-0008--
GarrettMGT2260SDL793647-0009--
GarrettMGT2256S810409-0006760579405, 760579407, 764609302, 764609307
GarrettMGT2256S821613-0002760579405, 764609302
GarrettMGT2256S821613-0004760579407, 764609307
GarrettMGT2256S821719-0002--
GarrettMGT2256S821719-0003--
GarrettMGT2256S821719-0004--
GarrettMGT2260S821720-0002--
GarrettMGT2260S821720-0003--
GarrettMGT2260S821721-0002--
GarrettMGT2260S821721-0003--
GarrettMGT2260S821721-0004--
GarrettMGT2260S830104-0001--
GarrettMGT2260S830104-0004--
GarrettMGT2260S830105-0001--
GarrettMGT2260S830105-0004--

SW-G106 - Part Properties

Blades (Shaft blades count): 9

Type (Shaft & Wheel Type): Straight

Inducer Diameter A (Inducer Diameter A): 50.0

Exducer Diameter B (Exducer Diameter B): 44.0

Tip Height C (Tip Height C): 10.5

Journal Bearing Diameter D (Journal Bearing Diameter D): 7.9

Compressor Wheel Diameter E (Compressor Wheel Diameter E): 5.1

Shaft Length (mm) (Shaft Length (mm)): 99.0

Back (Back): Open

Piston Ring Type (Piston Ring Type): Single

Model (Model): GT15-25

4571543A03, 769155-0012, 7590598A02, 769155-0015, 786331-0007, 786331-0008, 786331-0011, 786332-0006, 786332-0007, 786332-0008, 786332-0011, 793647-0001, 7590598F02, 793647-0002, 793647-0008, 793647-0009, 760579405, 760579407, 764609302, 764609307, 810409-0006, 760579405, 764609302, 821613-0002, 760579407, 764609307, 821613-0004, 821719-0002, 821719-0003, 821719-0004, 821720-0002, 821720-0003, 821721-0002, 821721-0003, 821721-0004, 830104-0001, 830104-0004, 830105-0001, 830105-0004

Data updated: 2025-02-13 18:26:20
